Chevy Truck Radiator & Shroud (55-59) LS Coversions
CC5559-LS-5559FS16

CC5559-LS-5559FS16

CC5559-LS-5559FS16
Click to enlarge image(s)

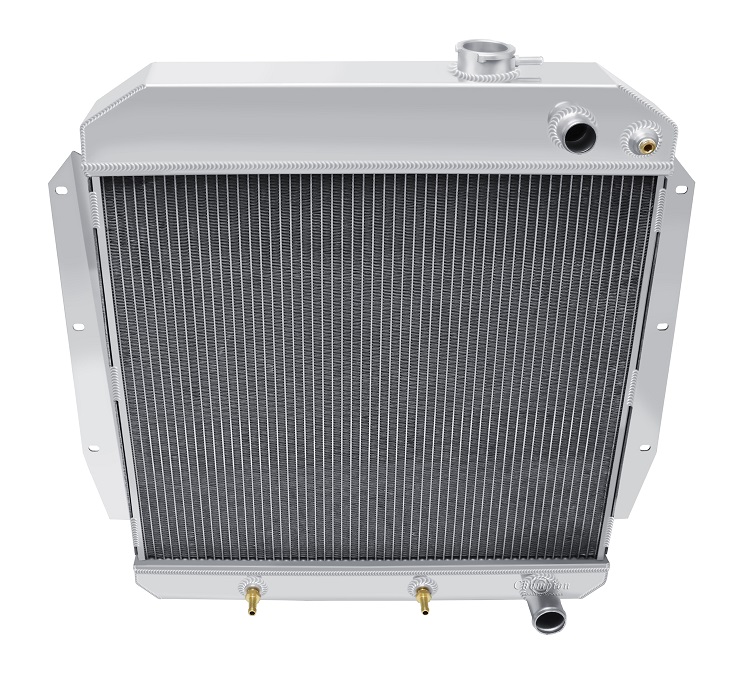

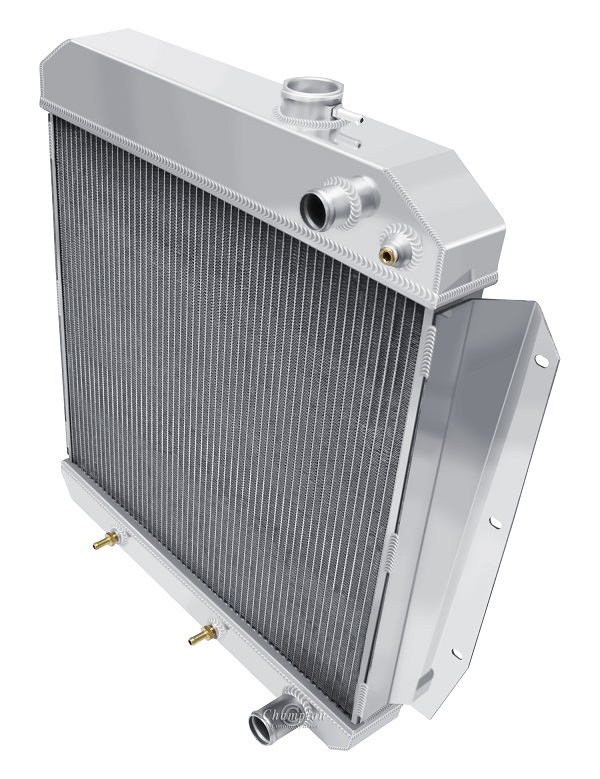

Champion All Aluminum Radiator Plus
Ledfoot Racing Aluminum Shroud
 & 16" Fan
For LS Conversions

Verify clearance for electric fan
Total thickness: 7.25" to fan motor

3-Row Core | 700hp Rating

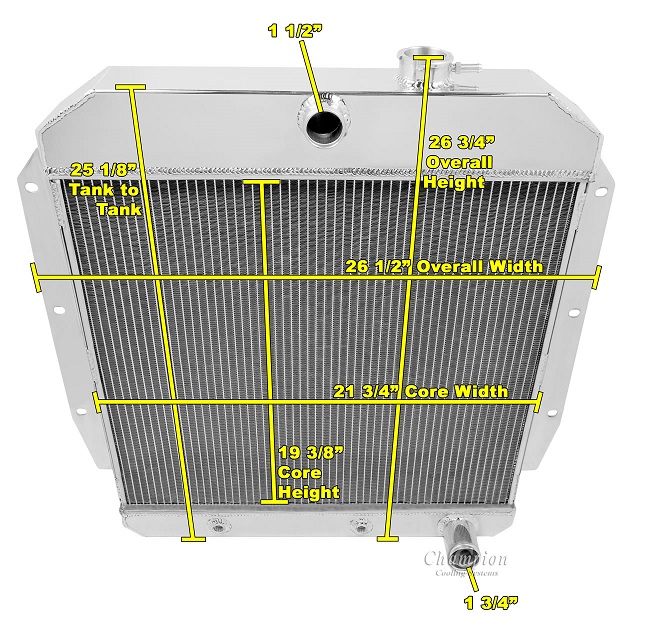

Radiator Dimensions:
Total: 26.75" tall (with cap) x 26.5" wide (including brackets)
Core: 19.38" tall x 21.75" wide x 2.25" thick
Inlet: 1.25" Passenger side
Outlet: 1.5" Passenger side
Tanks 2.5" thick
Tubes: 0.63" thick

Bracket Mounted
Includes Steam Port with barbed fitting and plug
13 lb. Radiator Cap included
Transmission Cooler Included (1/2"-20 Straight Thread)
