EC407-407FS11SP

EC407-407FS11SP

EC407-407FS11SP
Click to enlarge image(s)

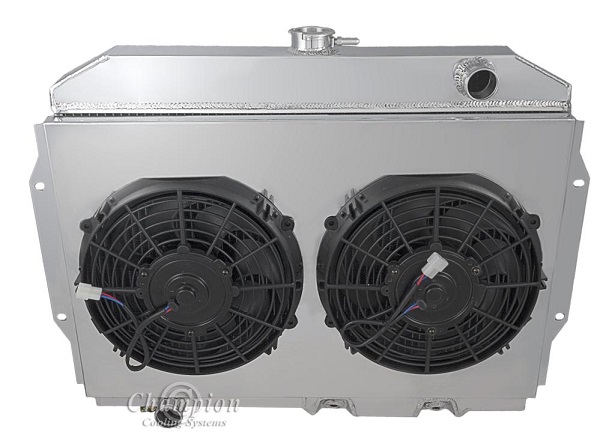

Champion All Aluminum Radiator Plus
Plus Shroud & 2-11" SPAL 1500 Fans
Verify clearance for electric fan

2-Row 1" Core | Cools up to 600hp
NOTE: The bracket is on the engine face of the radiator,
please confirm, the CC403 has grill side brackets.

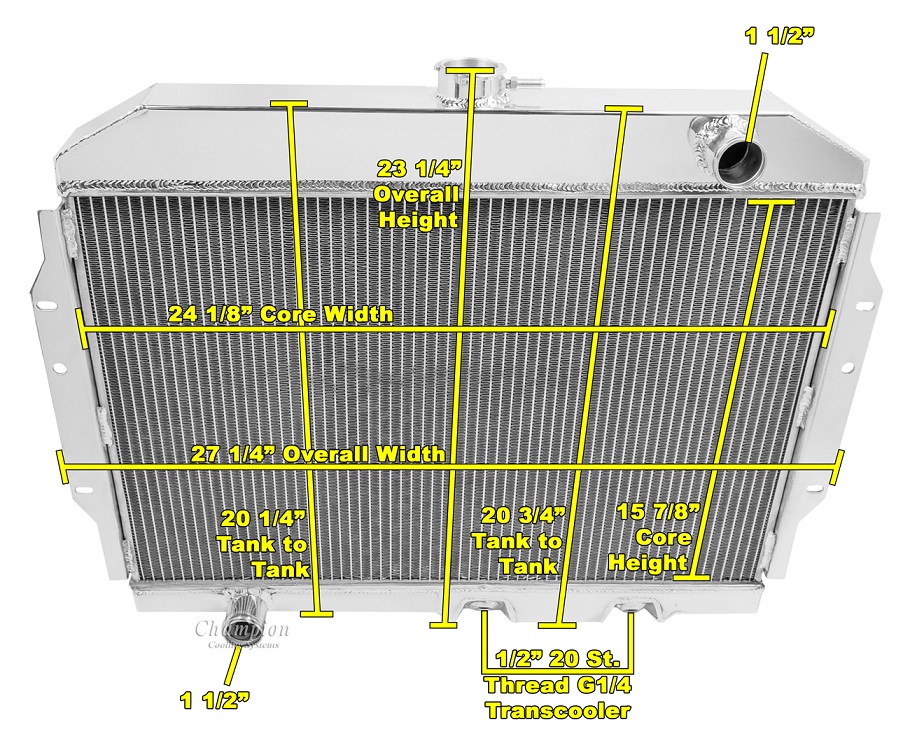

Radiator Dimensions:
Total: 22" (23.13" w/fill neck) tall x 27.25" wide
Core: 15.88" tall x 24.13" wide x 1.58" thick
Inlet: 1.5" passenger side
Outlet: 1.5" driver side
Tanks: 2.5" thick
Tubes: 0.75" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/2"-20 Straight Thread, Inverted Flare)



Compatible With
AMC Matador 1971-1974
AMC Javelin 1968-1974
AMC Ambassador 1974
AMC AMX 1968-1974
AMC Rambler 1960-1962
AMC Marlin 1965-1962
AMC Rebel 1958-1970
AMC SST 1968-1971
AMC Wagon 1968-1974
