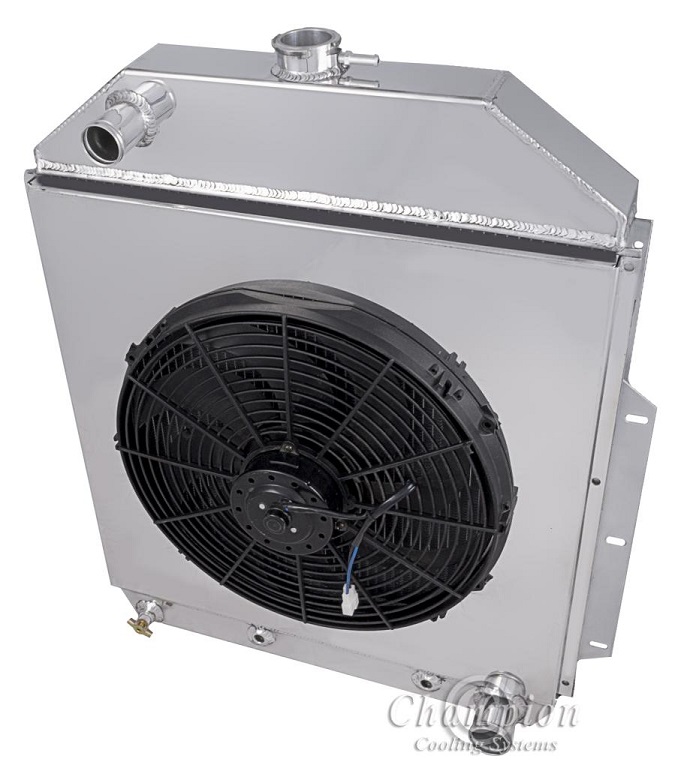

American Eagle All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" Fan

Verify clearance for electric fan
Total thickness: 6.25" to fan motor
2-Row Core, 1" thick tubes | Cools up to 600hp

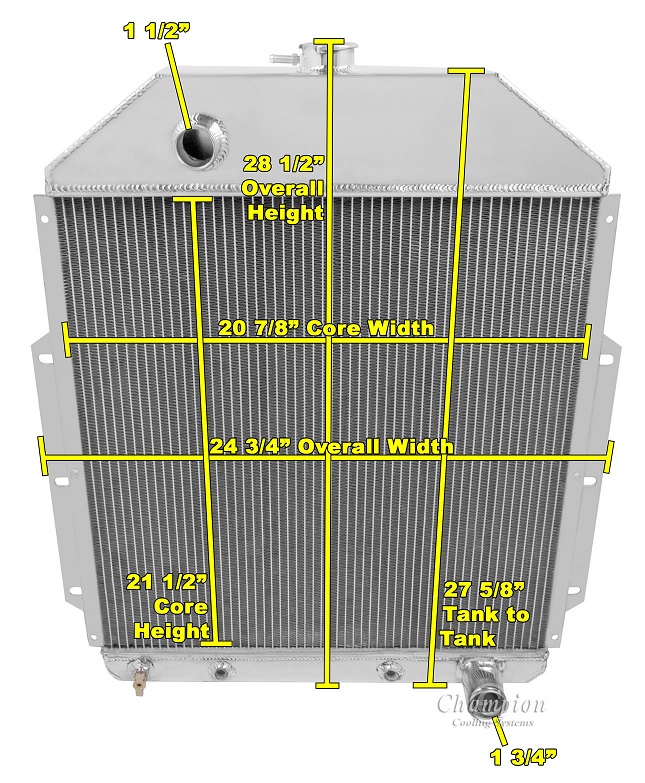

Radiator Dimensions:
Total: 28.5" tall (with cap) x 25" wide (including brackets)
Core: 21.5" tall x 20.88" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 1" thick

E-Bracket Mounted
From mounting bracket to
engine face of core is 1.38" thick


13 lb. Radiator Cap included
Transmission Cooler included: 1/2" -20 Straight Thread




Compatible With
Ford Truck(Chevy Conversion) 1941-1952
