20" x 29" Core Ford Crossflow Radiator Overall
UN24-FD

UN24-FD

UN24-FD
Click to enlarge image(s)
Universal Ford Champion All Aluminum Radiator
3-Row Core | Cools up to 600hp

NOTE: Typical to all Universal Radiators, ours do not include provisions for a drain petcock.

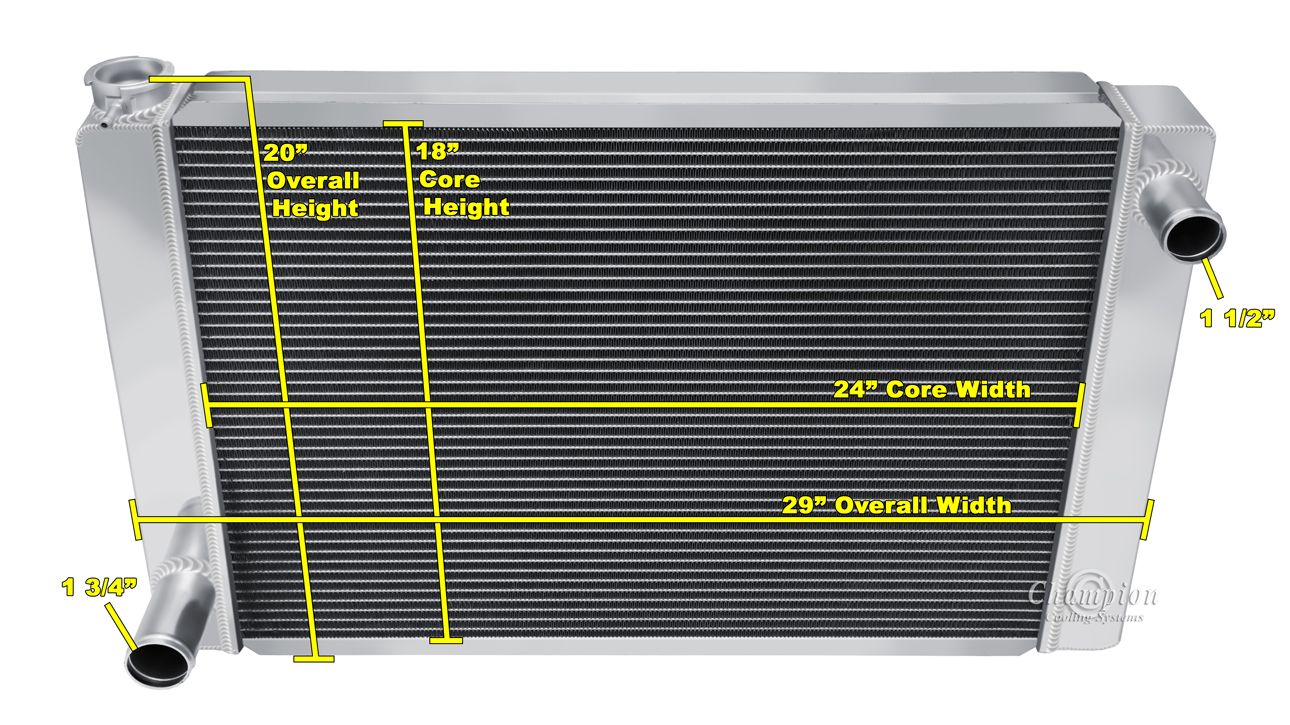

Radiator Dimensions:
Total: 20" tall  x 29" wide
Core: 18" tall x 24" wide x 2.25" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 3" thick
Tubes: 0.63" thick

Saddle Mounted

13 lb. Radiator Cap included
NO Transmission Cooler Included

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
Custom shroud for electric fan(s) available upon request:


Compatible With
Chevrolet Nova 1968-1969 (3.7L/225ci V6, 5.0L/302ci V8, 5.7L 350 V8)
Chevrolet Nova 1970-1971 (5.0L/302ci V8, 5.7L 350ci V8, 4.1L/250ci Straight 6-cylinder)
Chevrolet Nova 1972-1979 (4.1L/250ci Straight 6-cylinder, 5.0L/302ci V8, 5.7L/350ci V8, 4.3L/262 V8)
Many Chevrolet Cars from 1965-1987 with 6cyl engines
