SPAL High Performance (When you need the best)

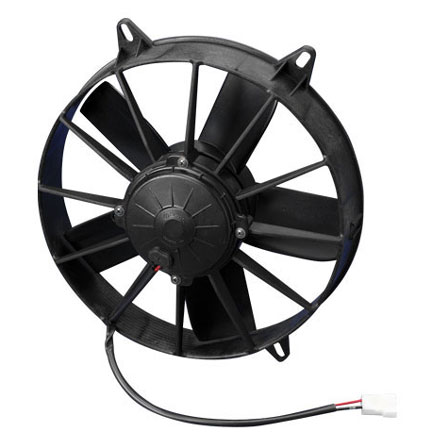

SPAL-2054 High Performance 11" Paddle Fan

SPAL-2054 High Performance 11" Paddle Fan

SPAL-2054 High Performance 11" Paddle Fan
Click to enlarge image(s)
SPAL Medium Profile Series -2054
11" Cooling Fan
Paddle Blade - Pull

Specifications:
A: Length 12.36"
B: Depth 3.75"
C: Width 11.93

CFM: 1375
AMP Draw: 18 Amps

Core Mounting Kit for Fan is also available (sold separately)

Recommended Fuse: 30 amp


SPAL-2038 High Performance 12" Paddle Fan

SPAL-2038 High Performance 12" Paddle Fan

SPAL-2038 High Performance 12" Paddle Fan
Click to enlarge image(s)
SPAL Medium Profile Series -2038
12" Cooling Fan
Paddle Blade - Pull

Specifications:
A: Length 13.03"
B: Depth 3.75"
C: Width 13.03

CFM: 1640
AMP Draw: 19 Amps

Core Mounting Kit for Fan is also available (sold separately)

Recommended Fuse: 30 amp


SPAL-2029 High Performance 12" Fan

SPAL-2029 High Performance 12" Fan

SPAL-2029 High Performance 12" Fan
Click to enlarge image(s)
SPAL High Performance Series -2029
12" Cooling Fan
Curved Blade - Pull

Specifications:
A: Length 13.03"
B: Depth 3.45"
C: Width 12.64"

CFM: 1451
AMP Draw: 14.5 Amps


Core Mounting Kit for Fan is also available (sold separately)

Recommended Fuse: 40 amp


SPAL-2044 High Performance 13" Fan

SPAL-2044 High Performance 13" Fan

SPAL-2044 High Performance 13" Fan
Click to enlarge image(s)
SPAL High Performance Series -2044
13" Cooling Fan
Curved Blade - Pull

Specifications:
A: Length 14.17"
B: Depth 3.45"
C: Width 13.62"

CFM: 1777
AMP Draw: 19.5 Amps

Core Mounting Kit for Fan is also available (sold separately)

Recommended Fuse: 40 amp

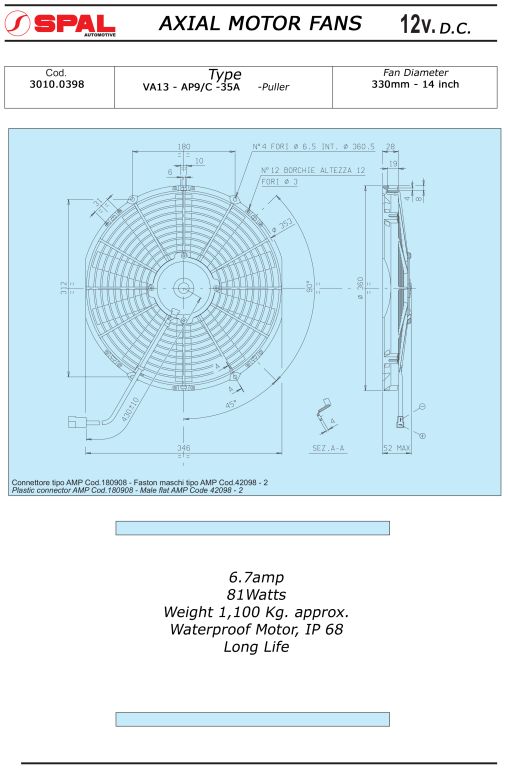

SPAL-2042 High Performance 14" Fan

SPAL-2042 High Performance 14" Fan

SPAL-2042 High Performance 14" Fan
Click to enlarge image(s)
SPAL High Performance Series -2042
14" Cooling Fan
Curved Blade - Pull

Specifications:
A: Length 15.04"
B: Depth 3.47"
C: Width 14.45"

CFM: 1864
AMP Draw: 17 Amps

Core Mounting Kit for Fan is also available (sold separately)

Recommended Fuse: 40 amp


SPAL-2048 High Performance Pusher 16" Fan

SPAL-2048 High Performance Pusher 16" Fan

SPAL-2048 High Performance Pusher 16" Fan
Click to enlarge image(s)
SPAL High Performance Series -2048
16" Cooling Fan
Curved Blade - Push

Specifications:
A: Length 16.30"
B: Depth 3.47"
C: Width 15.75"

CFM: 2024
AMP Draw: 19 Amps

Core Mounting Kit for Fan is also available (sold separately)

Recommended Fuse: 40 amp

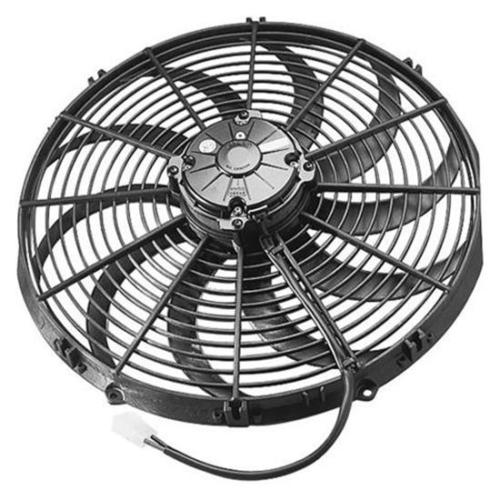

SPAL-2049 High Performance 16" Fan

SPAL-2049 High Performance 16" Fan

SPAL-2049 High Performance 16" Fan
Click to enlarge image(s)
SPAL High Performance Series -2049
16" Cooling Fan
Curved Blade - Pull

Specifications:
A: Length 16.30"
B: Depth 3.47"
C: Width 15.75"

CFM: 2024
AMP Draw: 19 Amps

Core Mounting Kit for Fan is also available (sold separately)

Recommended Fuse: 40 amp

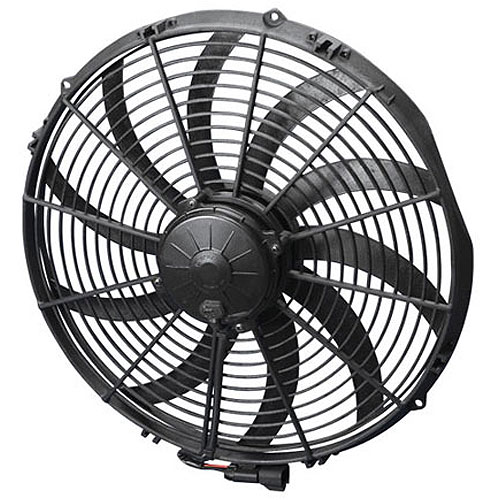

SPAL-2113 Extreme Performance 16" Fan

SPAL-2113 Extreme Performance 16" Fan

SPAL-2113 Extreme Performance 16" Fan
Click to enlarge image(s)
SPAL High Extreme Performance Series -2113
16" Cooling Fan
Curved Blade - Pull
Note: Not Recommended for continuous use over 2 hours
without a cool down period. Great for Drag Racing!


Specifications:
A: Length 16.30"
B: Depth 3.65"
C: Width 15.75"

CFM: 2467
AMP Draw: 26 Amps

Core Mounting Kit for Fan is also available (sold separately)
Recommended Fuse: 40 amp
Uses Fan Pigtail Part # FR-PT15300027
(Can be found on the net for about $10)
