16.38" x 30" Overall Crossflow Radiator
Note Small hose diameters modifications availble upon request
CC829

CC829

CC829
Click to enlarge image(s)

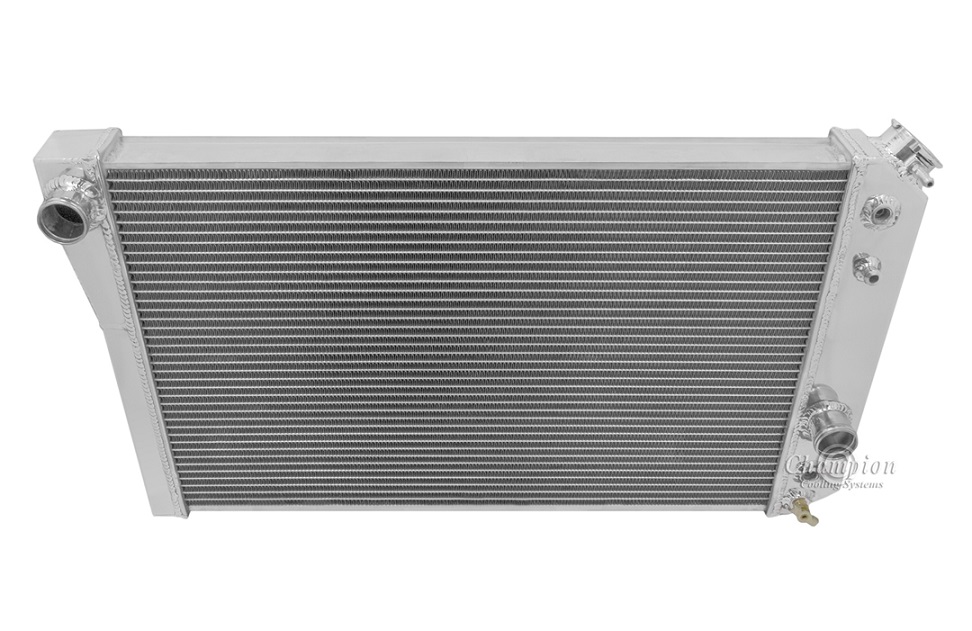

Champion All Aluminum Radiator
3-Row Core | Cools up to 650hp

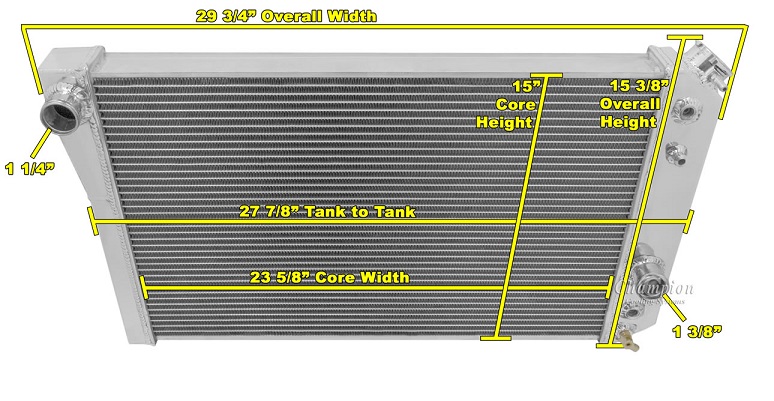

Radiator Dimensions:
Total: 16.38" tall x 29.75" wide
Core: 15" tall x 23.63" wide x 2" thick
Inlet: 1.25" driver side
Outlet: 1.38" passenger side
Tank: 2.5" thick
Tubes: 0.63" thick

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/2"- 20 STRAIGHT THREAD, INVERTED FLARE)

When using electric fans:
Two 12" Electric fans recommended for this core size (sold separately)


Compatible With
Chevrolet Corvette 1984-1990 ("small block" V8)
Chevrolet S10 Pickup (V8 Conversion)
