Ford Pickup Truck (42-52)
CC4252-LS

CC4252-LS

CC4252-LS
Click to enlarge image(s)

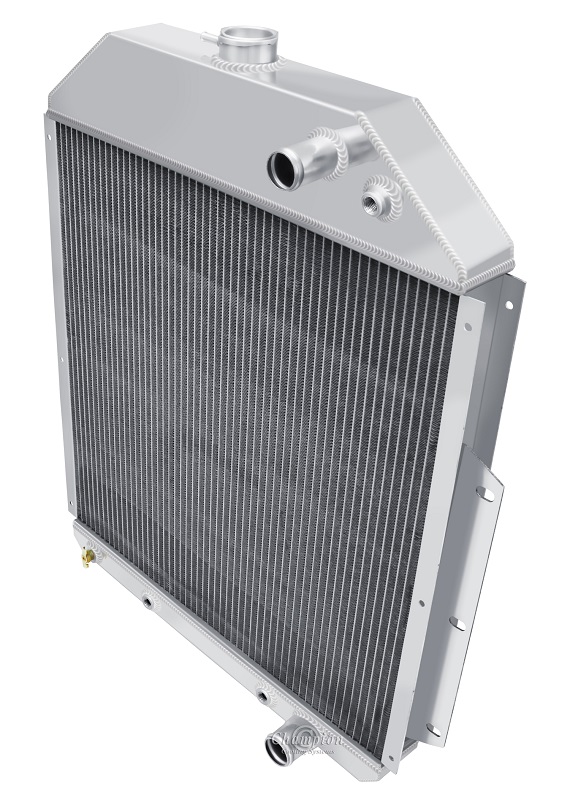

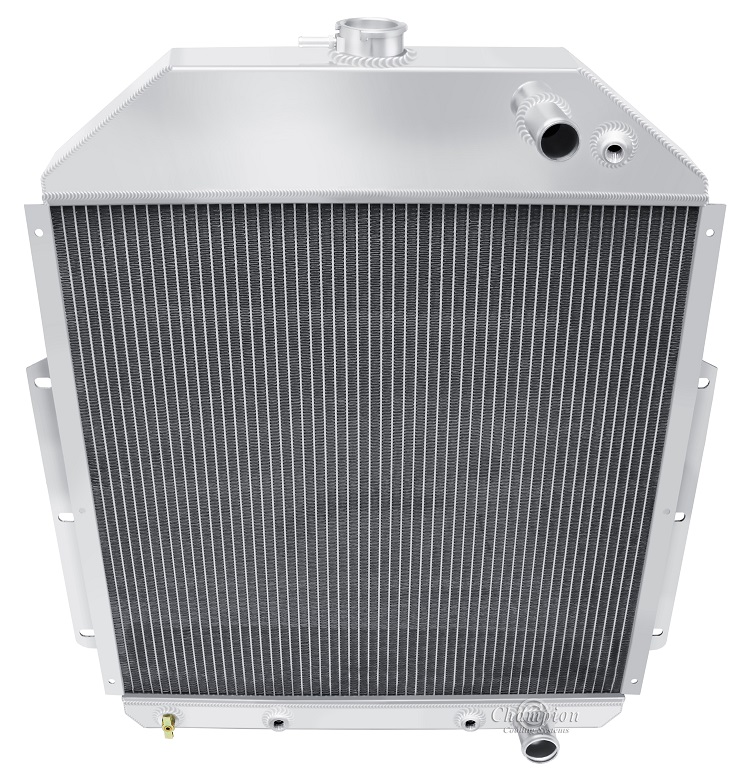

Champion All Aluminum Radiator
3-Row Core | Cools up to 650hp | LS Conversion

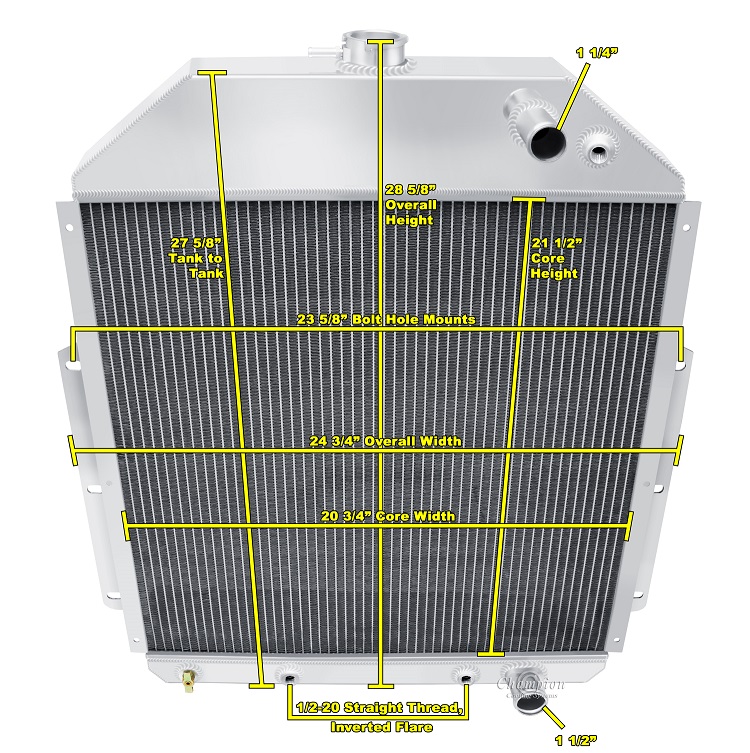

Radiator Dimensions:
Total: 28.5" tall (with cap) x 25" wide (including brackets)

Core: 21.5" tall x 20.88" wide x 2" thick
Inlet: 1.25" passenger side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

E-Bracket Mounted
From mounting bracket to
engine face of core is 1.38" thick


Steam port with fittings included
13lb. Radiator Cap included
Transmission Cooler Included: 1/2" -20 Straight Thread

Recommended Fans (sold separately):
One 16" Electric Fan


Compatible With
Ford Truck 1942-1952 (Chevy Conversion)
CC4252-LS-4252FS16

CC4252-LS-4252FS16

CC4252-LS-4252FS16
Click to enlarge image(s)

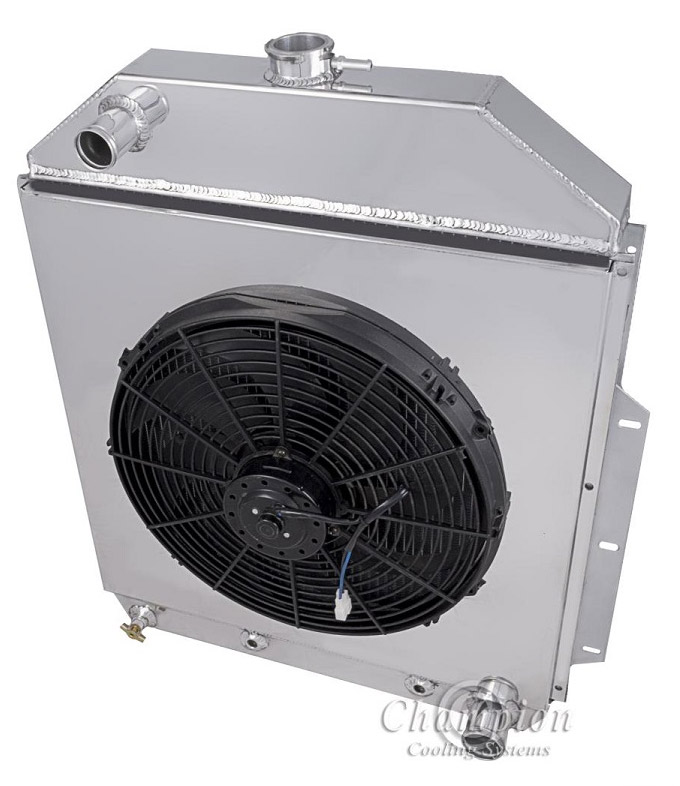

Champion All Aluminum LS Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" Fan
Verify clearance for electric fan
Total thickness: 7.25" to fan motor

3-Row Core | Cools up to 650hp | LS Conversion
Photos of radiator alone are correct

Radiator Dimensions:
Total: 28.5" tall (with cap) x 25" wide (including brackets)

Core: 21.5" tall x 20.88" wide x 2" thick
Inlet: 1.25" passenger side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

E-Bracket Mounted
From mounting bracket to
engine face of core is 1.38" thick


Steam Port and fittings are included
13lb. Radiator Cap included
Transmission Cooler Included: 1/2" -20 Straight Thread





Compatible With
Ford Truck 1942-1952 (Chevrolet conversion)
