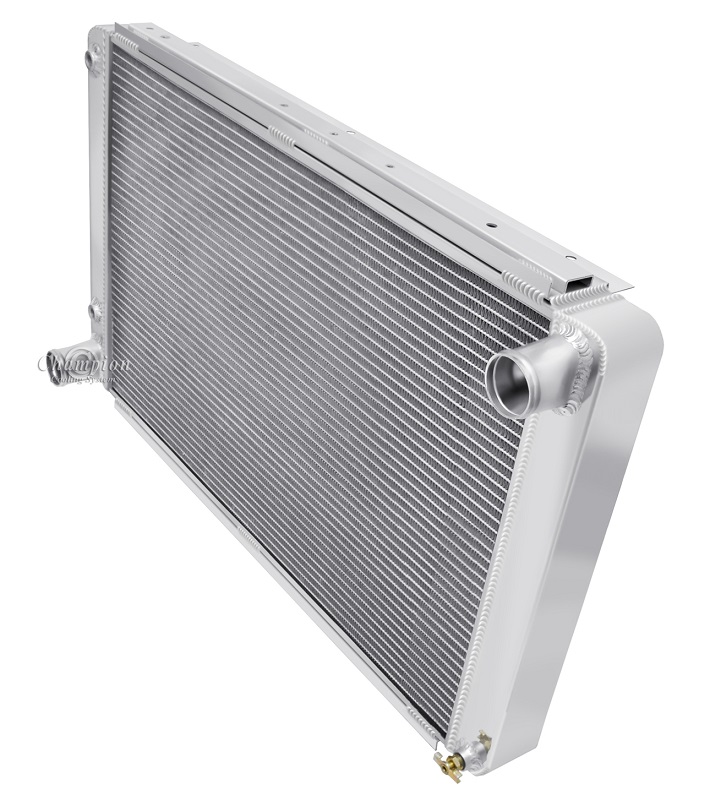

All Aluminum Champion Radiator

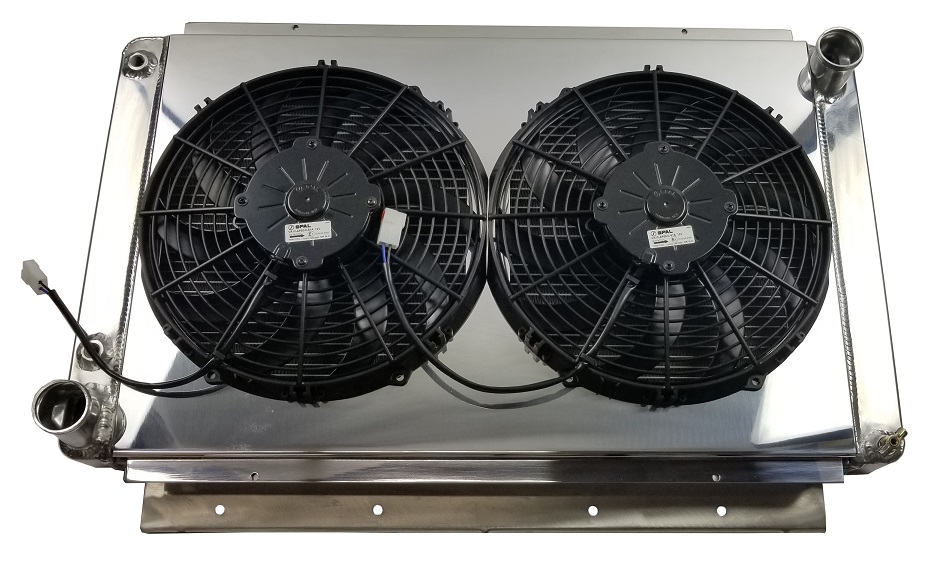

Plus Ledfoot Racing Shroud & two 12" SPAL 1522 Fans

3-Row Core | Cools up to 700hp
Note: 1961 version had the tranny cooler on the passenger side
(hot side) this poor design was fixed the following year

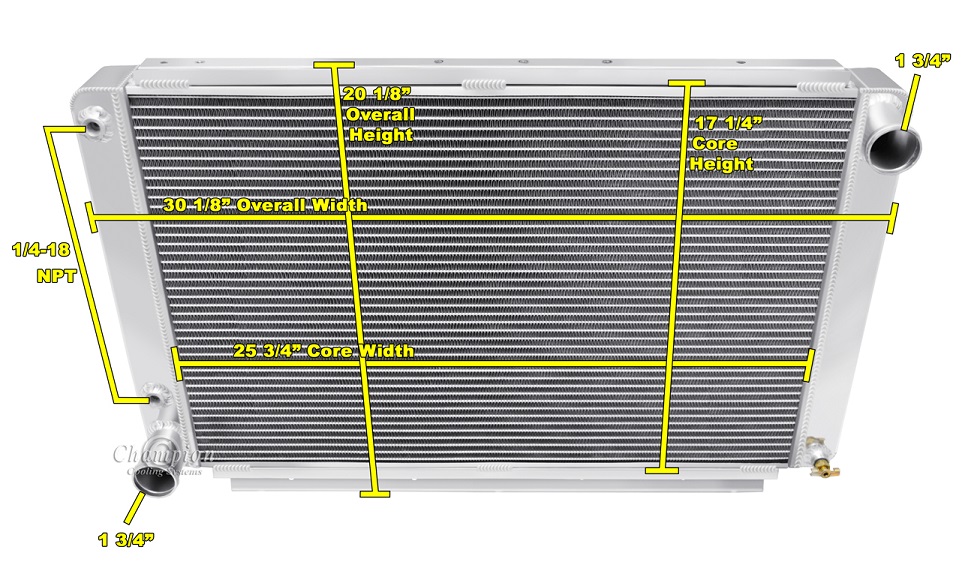

Radiator Dimensions:
Total: 20.13" tall x 30.13" wide
Core: 17.25" tall x 25.75” wide x 2.25" thick
Inlet: 1.75" passenger side
Outlet: 1.75" driver side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

Transmission Cooler included (1/8-27NPT)



Compatible With
Lincoln Continental 1961-1965 (7.0L/430CI V8)
