CC407-407FS16

CC407-407FS16

CC407-407FS16
Click to enlarge image(s)

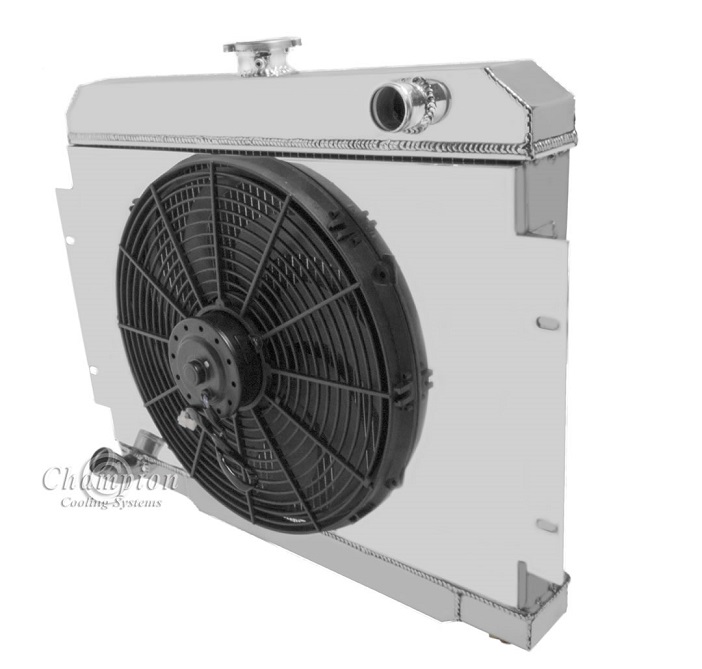

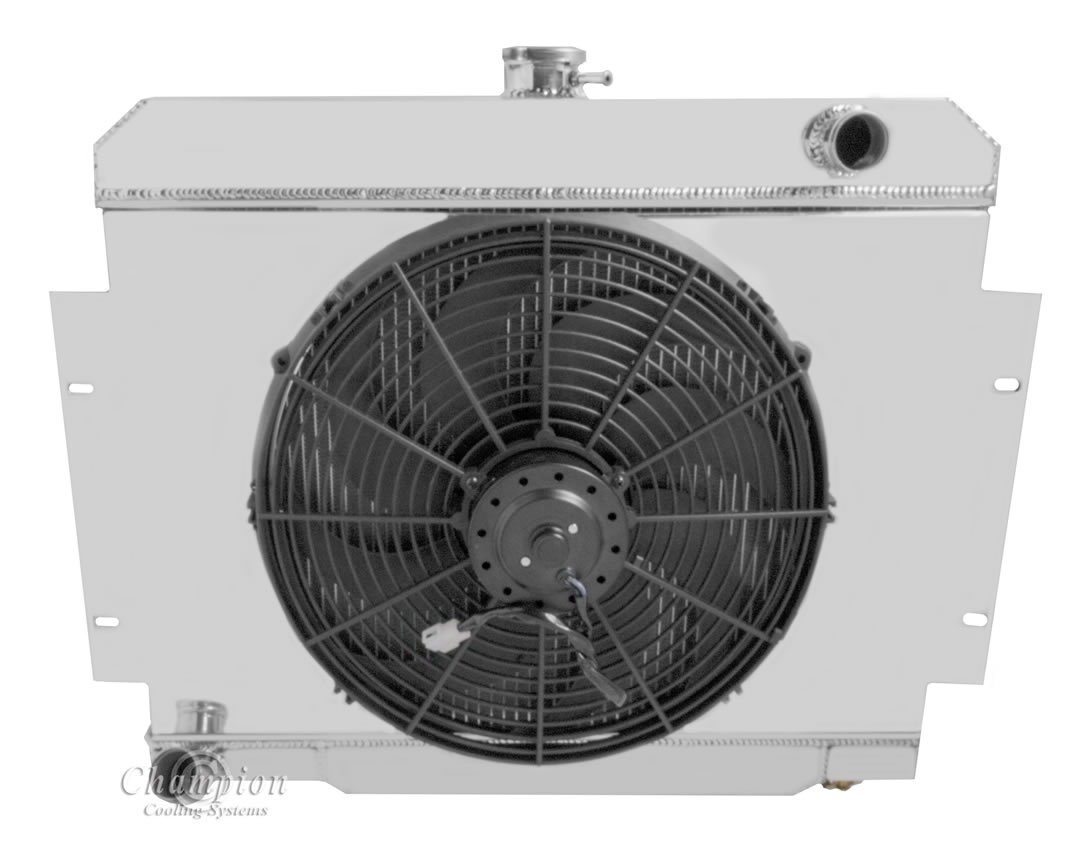

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" Fan
Verify clearance for electric fan
Total thickness: 6" to fan motor

3-Row Core | Cools up to 600hp
NOTE: The bracket is on the engine face of the radiator,
please confirm, the CC403 has grill side brackets.

Radiator Dimensions:
Total: 22" (23.13" w/fill neck) tall x 27.25" wide
Core: 15.88" tall x 24.13" wide x 2" thick
Inlet: 1.5" passenger side
Outlet: 1.5" driver side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/2"-20 Straight Thread, Inverted Flare)
Aluminum shroud available (sold separately; minor mods may be necessary)



Compatible With
AMC Matador 1971-1974
AMC Javelin 1968-1974
AMC Ambassador 1974
AMC AMX 1968-1974
AMC Rambler 1960-1962
AMC Marlin 1965-1962
AMC Rebel 1958-1970
AMC SST 1968-1971
AMC Wagon 1968-1974
