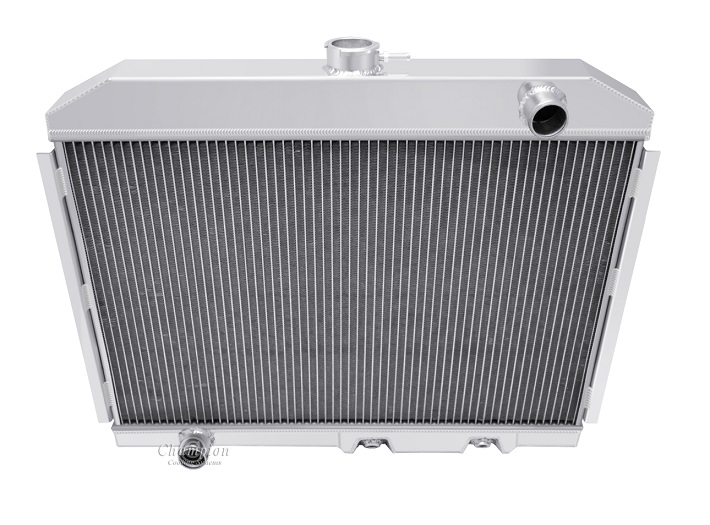

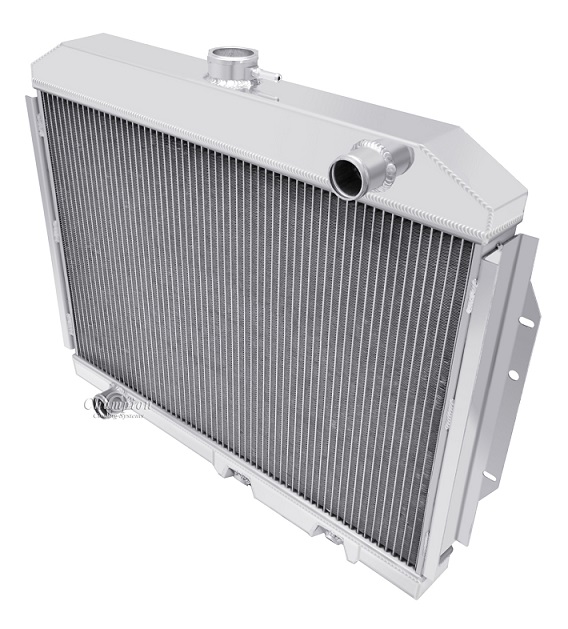

Champion All Aluminum Radiator
3-Row Core | Cools up to 600hp
NOTE: The bracket is on the grill face of the radiator,
please confirm, the CC407 has engine side brackets.

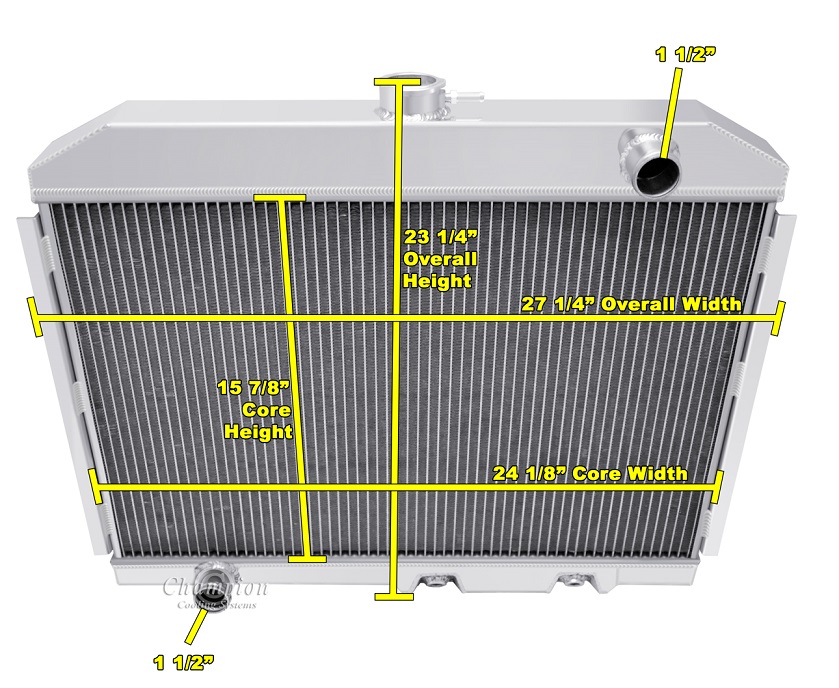

Radiator Dimensions:
Total: 22" tall x 27.13" wide
Core: 15.88" tall x 24.13" wide x 2" thick
Inlet: 1.5" passenger side
Outlet: 1.5" driver side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

Radiator Cap Included
Transmission Cooler Included
Aluminum shroud available (sold separately; minor mods may be necessary)

Recommended Fans (sold separately):
One 16" or Two 12" Electric Fans

Compatible With
AMC Matador 1971-1974
AMC Javelin 1968-1974
AMC Ambassador 1974
AMC AMX 1968-1974
AMC Gremlin 1970-1978
AMC Hornet 1971-1977
AMC Rambler 1960-1962
AMC Marlin 1965-1962
AMC Rebel 1958-1970
AMC SST 1968-1971
AMC Wagon 1968-1974


Click to enlarge image(s)

Ledfoot Racing Aluminum Fan Shroud for one 16" Electric Fan

15.63" tall x 26.87" wide

All-Aluminum Fan Shroud
Cut-out to accept one 16" electric fan
Designed Exclusively for One Electric Fan (sold separately)
Made in the U.S.A

Compatible with:
Champion CC403. Will also fit OEM radiator.
