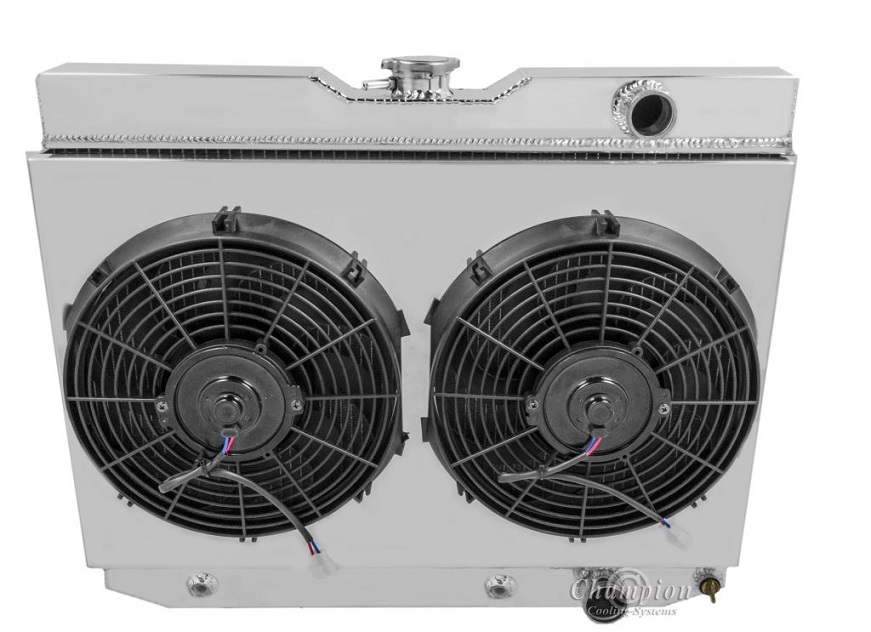

Champion Cooling Aluminum Radiator Plus
Ledfoot Racing Shroud
and Two 12" SPAL-1522 Fans
3-Row Core | Cools up to 750hp

Impala's sometimes need a notched lower tank to miss the
optional power
steering box. Modifications are $95 extra.

Radiator Dimensions:
Total: 21.25" tall (21.75" with cap) x 27" wide (28" including brackets)
Core: 16" tall x 24.5" wide x 2.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 3.13" thick
Tubes: 0.75" thick

Total Thickness: 5.63" to back of fans, 4.5" between fans

Bracket Mounted

Transmission Cooler included (1/2"-20 straight thread)
13 lb. Radiator Cap included

Compatible With
Chevy Impala 1959
Chevy Impala 1960 (283ci V8)
Chevy Impala 1961 (3.9L I6, 283ci V8)
Chevy Impala 1962-1963 (3.9L I6, 283ci V8, 327ci V8)
Chevy Bel-Air 1963
Chevy Bel-Air 1964
Chevy Bel-Air 1965
Chevy Kingswood 1959-1962
Chevy Biscayne 1960-1965 (3.9L I6, 283ci V8, 409ci V8)
Chevy Caprice 1959-1962
Chevy Chevelle 1964-1965
Chevy El Camino/Cabellero 1959-1960, 1964-1965
