19" x 33" Overall Crossflow Radiator

17" x 28" Core Crossflow Radiator

EC161

EC161

EC161
Click to enlarge image(s)

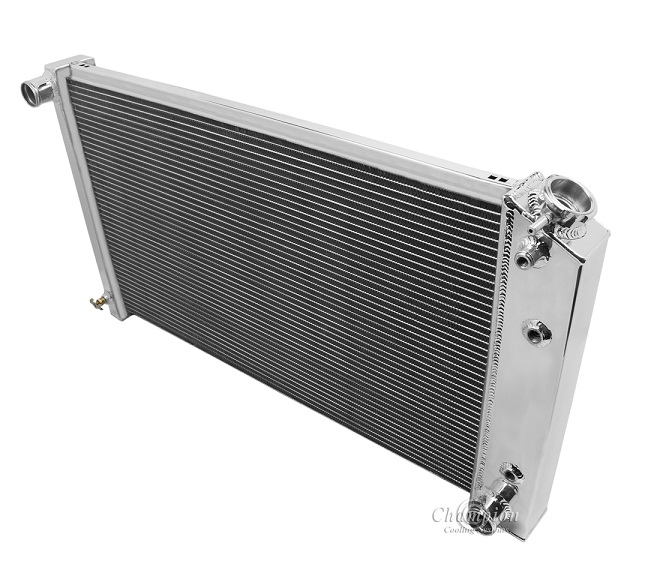

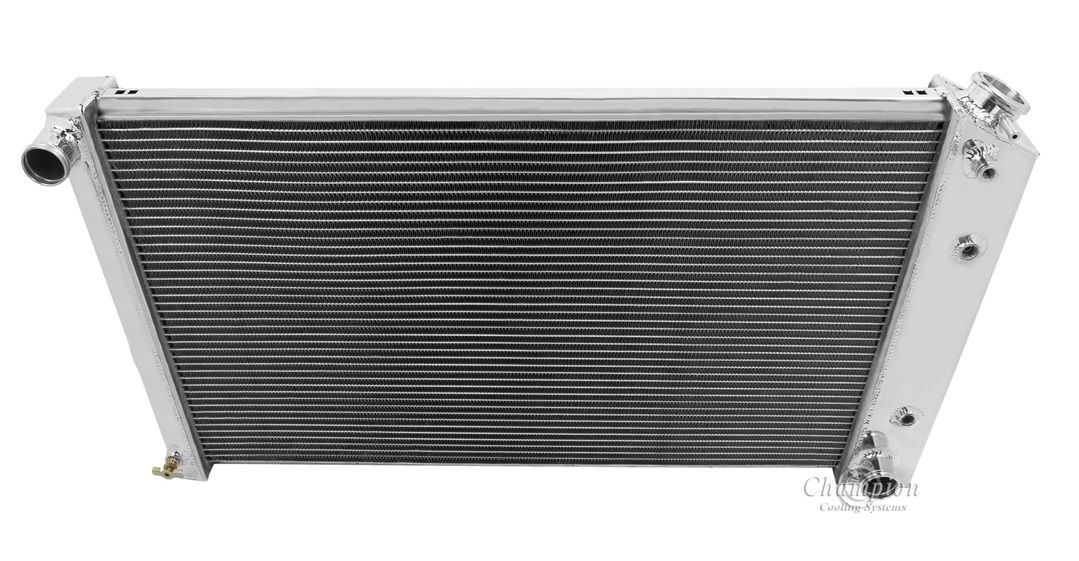

Champion All Aluminum Radiator
2-Row Core | Cools up to 500hp

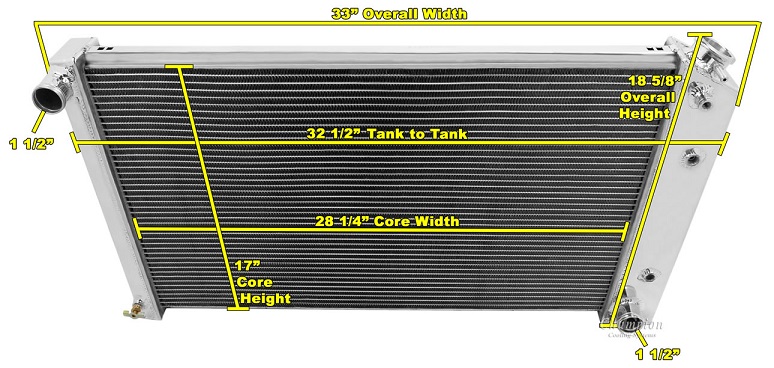

Radiator Dimensions:
Total: 18.63" tall (19” with cap)  x 33" wide
Core: 17" tall x 28.25" wide x 1.75" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick

Saddle Mounted

13lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
Aluminum Shroud is also available (sold separately)

When using electric fans (sold separately):
Two 12" or 14" Electric fans recommended for this core size


CC161

CC161

CC161
Click to enlarge image(s)
Champion All Aluminum Radiator
3-Row Core | Cools up to 1000hp

Radiator Dimensions:
Total: 18.63" tall (19” with cap)  x 33" wide
Core: 17" tall x 28.25" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
Aluminum Shroud is also available (sold separately)

When using electric fans (sold separately):
Two 14" Electric fans recommended for this core size

Click Here For Manual Transmissions


Compatible with:
Chevy Monte Carlo - 1970 - 76
Chevy Malibu - 1968 - 77
Chevy Chevelle - 1968 - 77
MC161

MC161

MC161
Click to enlarge image(s)

Champion All Aluminum Radiator
4-Row Core | Cools 1000hp+

Radiator Dimensions:
Total: 18.63" tall x 33" wide
Core: 17" tall x 28.25" wide  x 2.8" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 3.13" thick
Tubes: 0.63" thick

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
Aluminum shroud is also available (sold separately)

When using electric fans:
Two 14" or one 16" Electric fan(s) recommended for this core size (sold separately)
