Impala (59-64) W/ Power Steering Notch


Click to enlarge image(s)

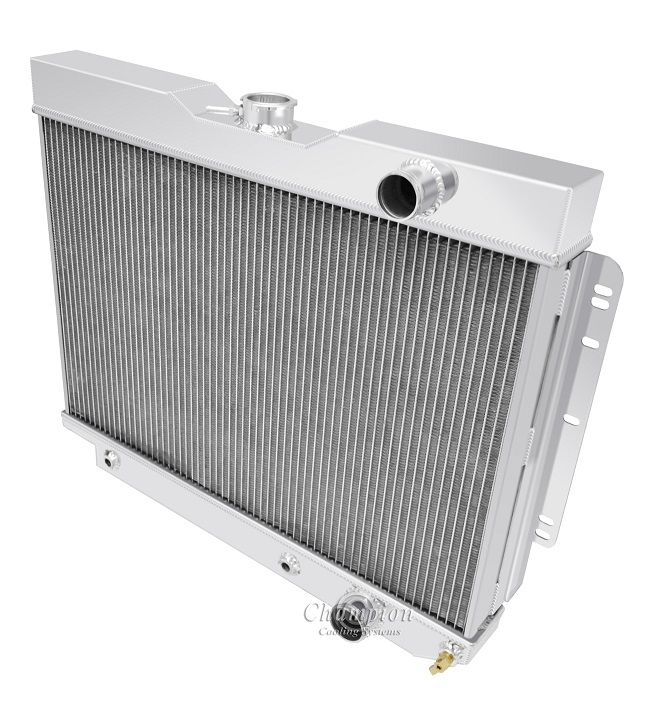

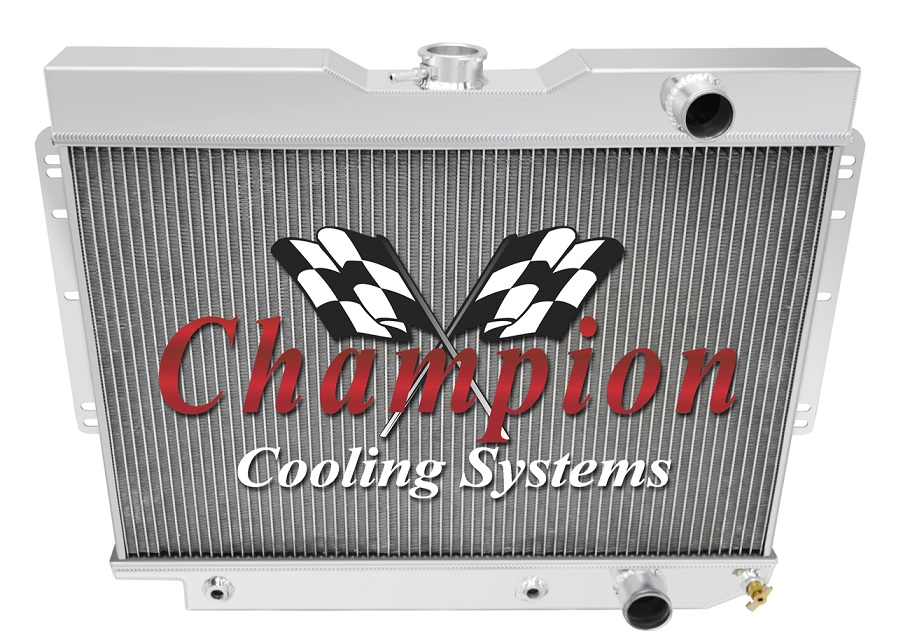

Champion All Aluminum Radiator
3-Row Core | Cools up to 650hp
The Notch is 1.5" tall and about 3" over.
Make sure this is enough to miss your steering box

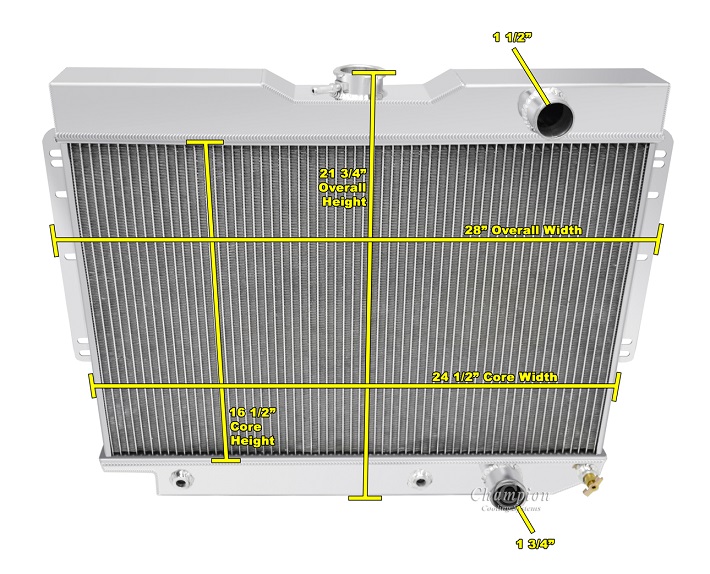

Radiator Dimensions:
Total: 21.25" tall (21.75" with cap) x 28" (with brackets) (27" Center)
Core: 16" tall x 24.5" wide x 2.5" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 0.75" thick

Bracket Mounted

Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
Aluminum Shroud(s) is also available (sold separately)

When using electric fans:
One 16" or two 12" Electric fans recommended for this core size (sold separately)

Compatible With
Chevrolet Bel Air 1963
Chevrolet Bel Air 1964
Chevrolet Bel Air 1965
Chevrolet Biscayne 1960-1965 (3.9L I6, 283ci V8, 409ci V8)
Chevrolet Caballero 1964-1965
Chevrolet Caprice 1959-1962
Chevrolet Chevelle 1964-1965
Chevrolet El Camino 1959-1960
Chevrolet Kingswood 1959-1962
Chevrolet Impala 1959
Chevrolet Impala 1960 (283ci V8)
Chevrolet Impala 1961 (3.9L I6, 283ci V8)
Chevrolet Impala 1962-1963 (3.9L I6, 283ci V8, 327ci V8)
