Valiant Radiator (65-66) V8

Valiant radiator (65-66) V8

EC1635

EC1635

EC1635
Click to enlarge image(s)

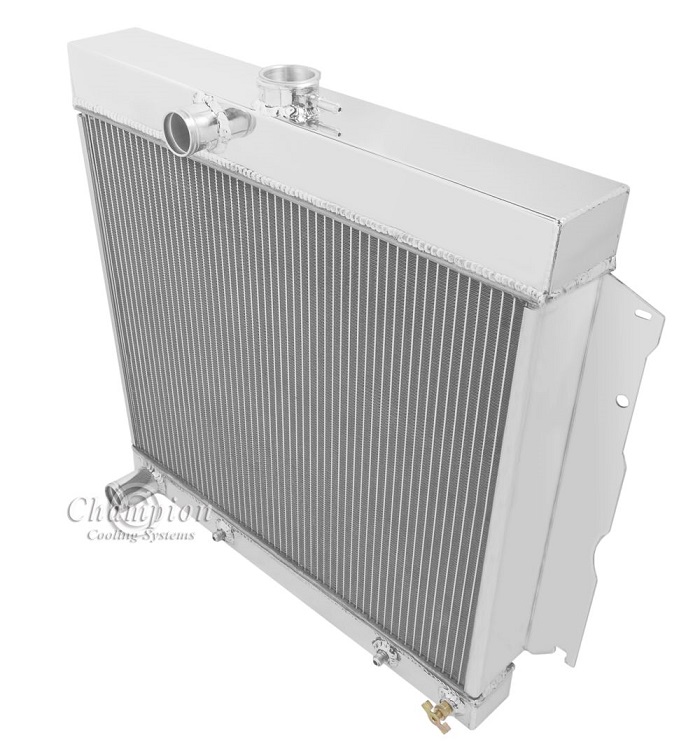

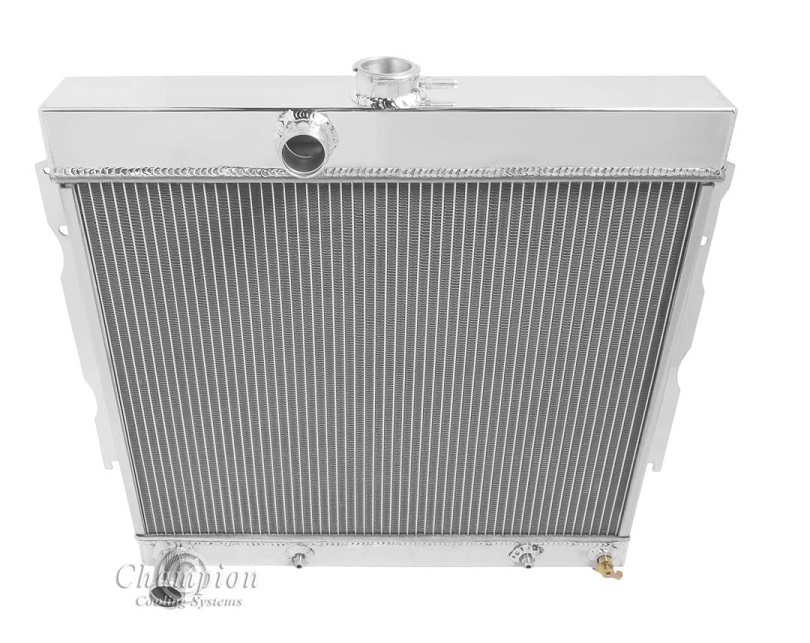

All Aluminum Champion Radiator
2-Row Core | Cools up to 350hp
If you need a shorter version, refer to CC66


Radiator Dimensions:
Total: 21.63" tall (22.87" with cap) x 26" wide (with brackets)
Core: 17.13" tall x 22" wide x 1.75" thick
Inlet: 1.5" Driver side off-center
Outlet: 1.5" Driver side
Tanks: 3.5" thick
Tubes: 0.75" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/2 - 20 UNF MALE)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)


Compatible With
Dodge Dart 1965-1966 (V8)
Dodge Charger 1966-1969
Dodge Coronet 1965-1969
Dodge Station Wagon 1963-1967
Dodge 2 Door 1963-1965
Plymouth Fury 1963-1967
Plymouth Satellite 1965-1967
Plymouth Belvedere 1963-1967
Plymouth Station Wagon 1963-1967
Plymouth Valient/Signet 1965-1966 (V8 only)
Plymouth Savoy 1963-1964
CC1635

CC1635

CC1635
Click to enlarge image(s)
All Aluminum Champion Radiator
3-Row Core | Cools up to 550hp


Radiator Dimensions:
Total: 21.63" tall (22.87" with cap) x 26" wide (with brackets)
Core: 17.13" tall x 22" wide x 2" thick
Inlet: 1.5" driver side; off center
Outlet: 1.5" driver side
Tanks: 3.5" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2 - 20 UNF MALE)

Aluminum Fan Shroud is also available (sold separately)


Recommended fans:
16" Electric Cooling Fan (sold separately)


Compatible With
Dodge Dart 1965-1966 (V8)
Dodge Charger 1966-1969
Dodge Coronet 1965-1969
Dodge Station Wagon 1963-1967
Dodge 2-Door 1963-1965
Plymouth Fury 1963-1967
Plymouth Satellite 1965-1967
Plymouth Belvedere 1963-1967
Plymouth Station Wagon 1963-1967
Plymouth Valient/Signet 1965-1966 (V8 only)
Plymouth Savoy 1963-1964
