Corvette (69-72)
Scroll down for additional options
AE1655

AE1655

AE1655
Click to enlarge image(s)

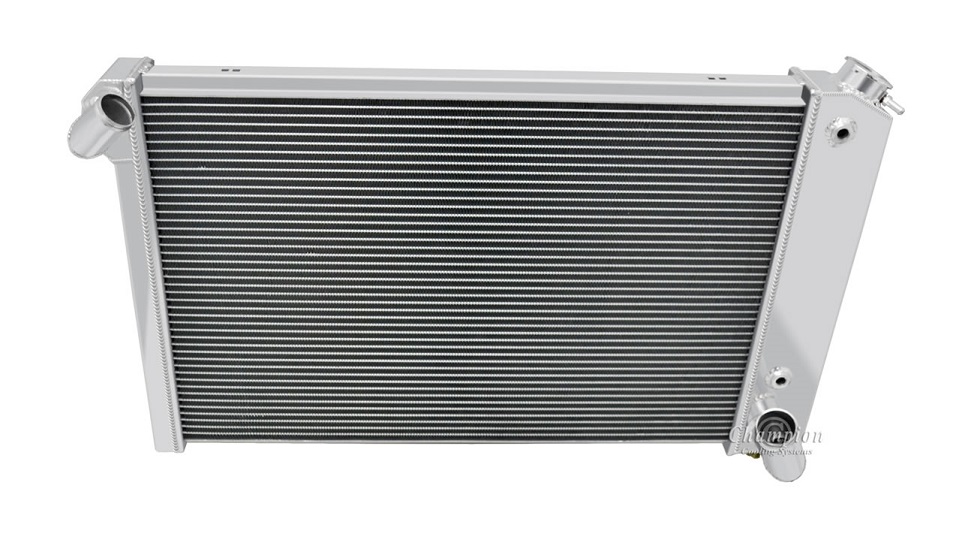

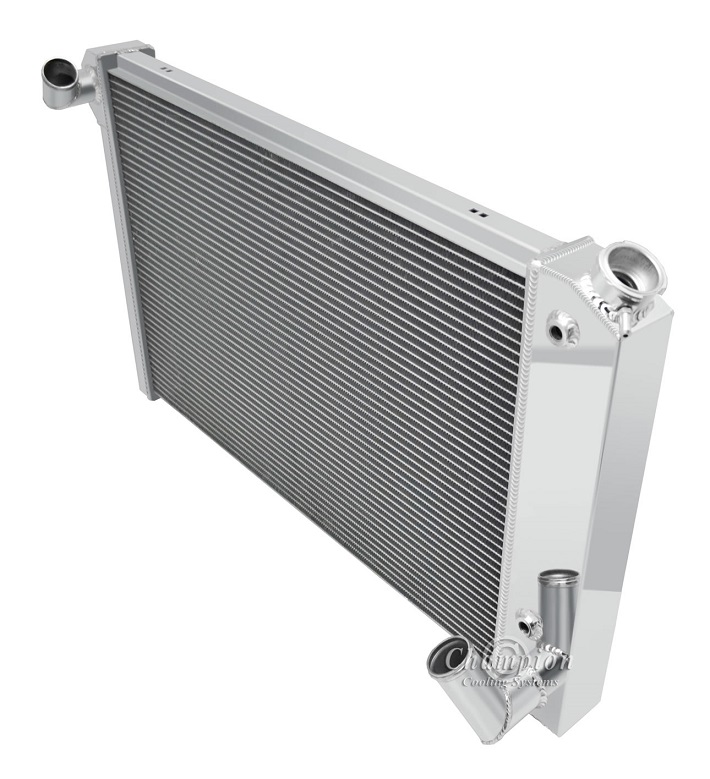

American Eagle All Aluminum Radiator
2-Row Core | Cools up to 600hp
Note: Automatic Transmissions ONLY. If you need the
small radiator with the U shaped
outlet we do not carry it.

Radiator Dimensions:
Total: 18.5" tall (19.5" with cap)  x 31.63" wide
Core: 17" tall x 26" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 1" thick

Saddle Mounted

13 lb. Radiator Cap included

Transmission Cooler included: (1/2-20 Straight Thread, Inverted Flare)

Aluminum Shroud is also available (sold separately)

Recommend electric fans(sold separately):
One 16" or two 12" Electric fans are recommended for this core size



Buy the Fan and Shroud Combo, and Save!
Compatible With
Corvette 1969-1972 (350ci V8 "small block")
AE1655-1655FS16

AE1655-1655FS16

AE1655-1655FS16
Click to enlarge image(s)

American Eagle Aluminum Radiator
Plus Ledfoot Racing Shroud and 16" Cooling Fan
Verify clearance for electric fan
Total thickness: 6.25" to fan motor
2-Row Core, 1" tubes | Cools up to 600hp
Note: Automatic Transmissions ONLY. If you need the
small radiator with the U shaped
outlet we do not carry it.

Radiator Dimensions:
Total: 18.5" tall (19.5" with cap)  x 31.63" wide
Core: 17" tall x 26" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 1" thick
Total Thickness: 6.25"

Saddle Mounted

13 lb. Radiator Cap included

Transmission Cooler included:(1/2-20 Straight Thread, Inverted Flare)


This part applies to the following cars:
Compatible With
Corvette 1969-1972 (350ci V8 "small block")
