Camaro Radiator (98-02)
(00-02) Need to Plug Coolant Sensor Port (1")



For the 5.7, 350, V8 only.
EC2365

EC2365

EC2365

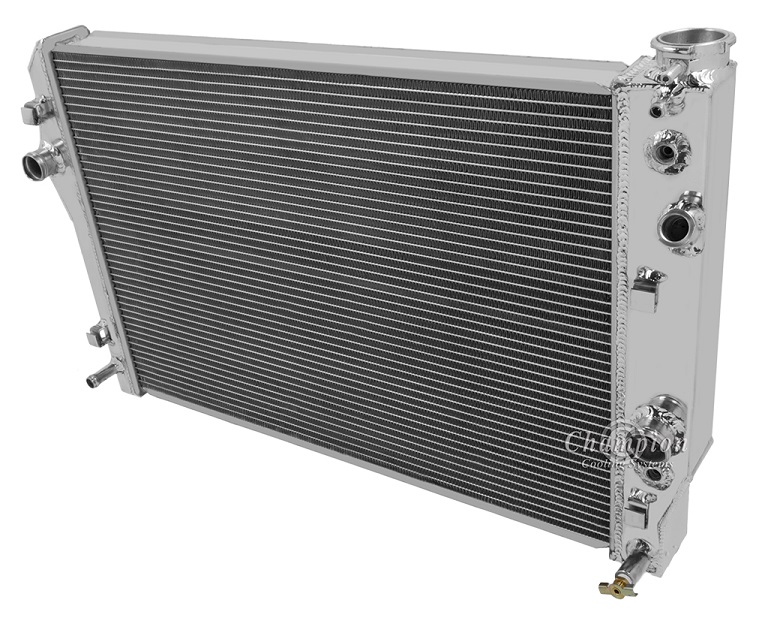

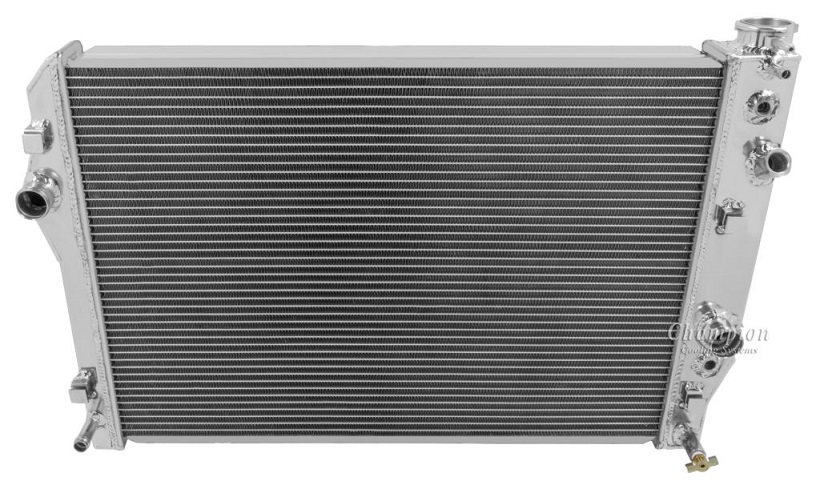

Click to enlarge image(s)

Champion All Aluminum Radiator
2-Row Core | Cools up to 400hp

Radiator Dimensions:
Total: 20.5" tall (with cap) x 29.63" wide
Core: 17.75" tall x 25" wide x 1.75" thick
Inlet: 1.25" driver side
Outlet: 1.38" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick

Pin Mounted

Radiator Cap included
Transmission Cooler included (1/2"- 20 straight thread, inverted flare)

When using electric fans:
One 16" or two 12" Electric fans recommended for this core size (sold separately)



Compatible With
Pontiac Firebird/Trans Am 1998-1999 (5.7L/350ci V8)
Chevrolet Camaro 1998-1999 (5.7L/350ci V8)
CC2365

CC2365

CC2365
Click to enlarge image(s)

Champion All Aluminum Radiator
3-Row Core | Cools up to 650hp

Radiator Dimensions:
Total: 20.5" tall (with cap) x 29.63" wide
Core: 17.75" tall x 25" wide x 2" thick
Inlet: 1.25" driver side
Outlet: 1.38" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Pin Mounted

Radiator Cap included
Transmission Cooler included (1/2"- 20 straight thread, inverted flare)

When using electric fans:
One 16" or two 12" Electric fans recommended for this core size (sold separately)



Compatible With
Pontiac Firebird/Trans Am 1998-1999 (5.7L/350ci V8)
Chevrolet Camaro 1998-1999 (5.7L/350ci V8)
