Impala (59-64) LS Engines
CC281B-LS

CC281B-LS

CC281B-LS
Click to enlarge image(s)

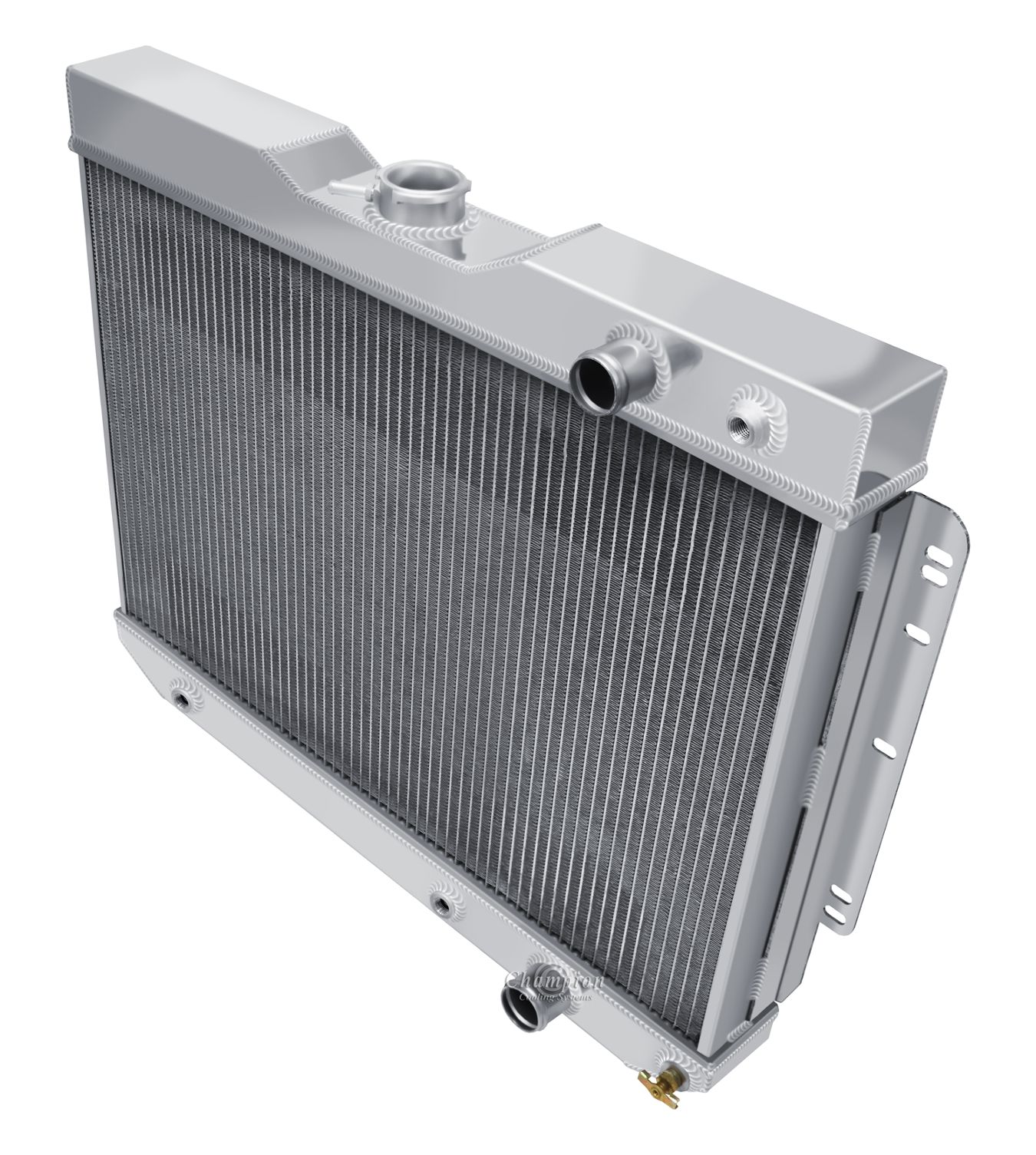

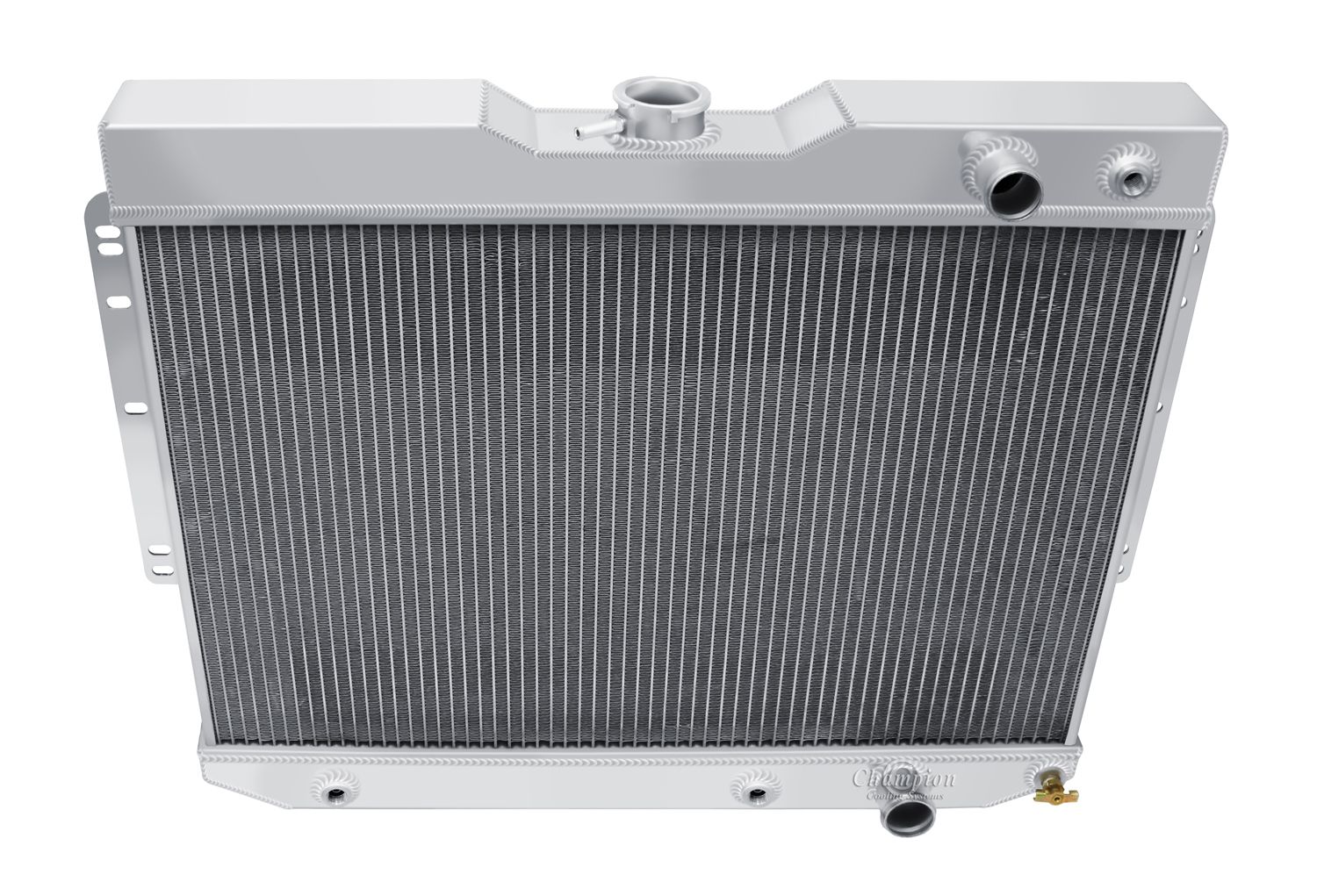

Champion All Aluminum Radiator
3-Row Core | Cools up to 650hp
This LS radiator comes with a Steam Port bung
DOES NOT WORK WITH GMC 605 STEERING BOX

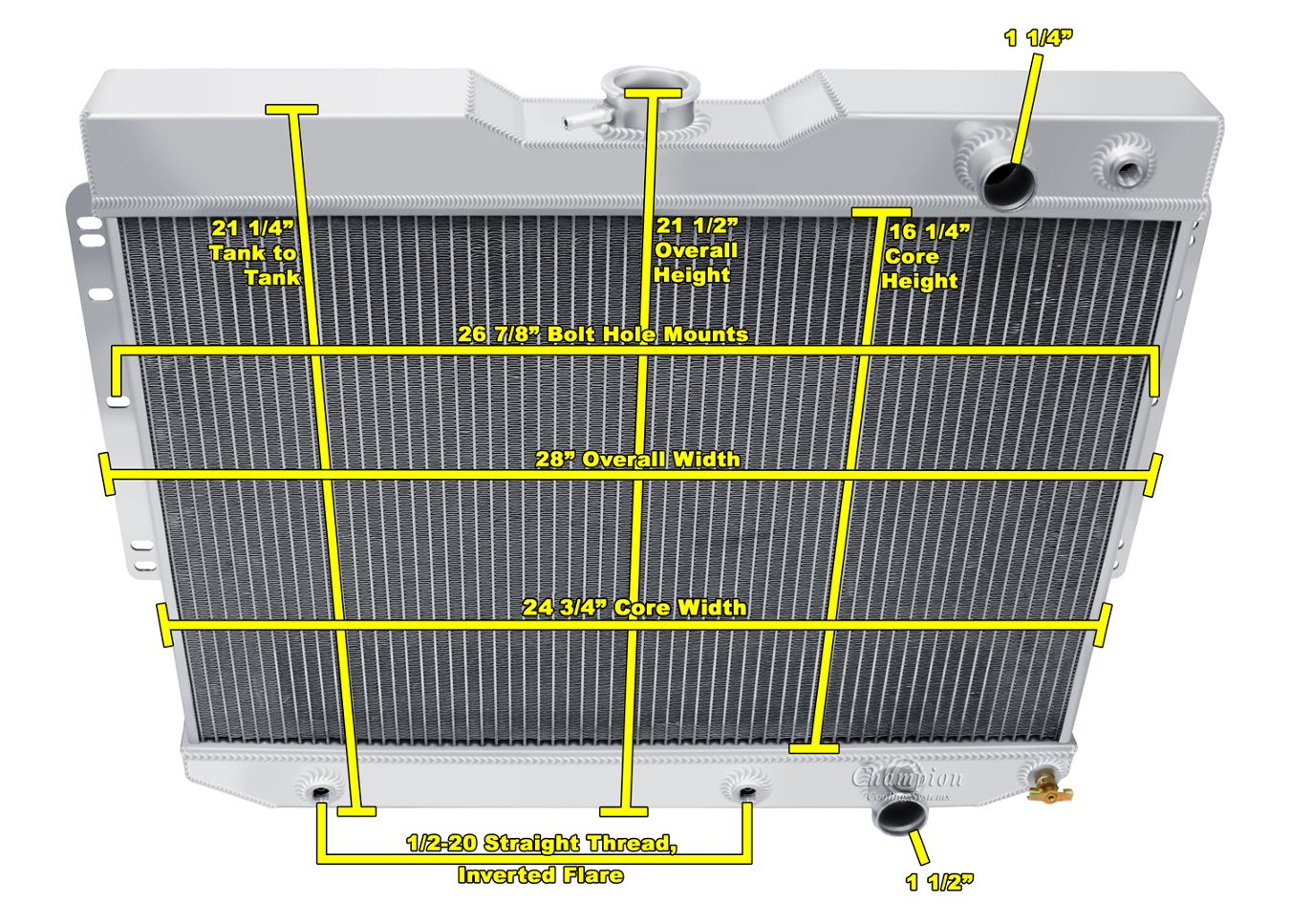

Radiator Dimensions:
Total: 21.25" tall (21.75" with cap) x 28" (with brackets) (27" Center)
Core: 16" tall x 24.5" wide x 2.5" thick
Inlet: 1.25" passenger side
Outlet: 1.5" passenger side
Tanks: 2.75" thick
Tubes: 0.75" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
Aluminum Shroud is also available (sold separately)

When using electric fans:
One 16" or two 12" Electric fans recommended for this core size (sold separately)



Compatible With
Chevrolet Bel Air 1963-1965
Chevrolet Biscayne 1960-1965
Chevrolet Caprice 1959-1962
Chevrolet Chevelle / Caballero 1964-1965
Chevrolet El Camino 1959-1960
Chevrolet Kingswood 1959-1962
Chevrolet Impala 1959-1964
