Land Cruiser (58-84)
CC180-LS

CC180-LS

CC180-LS
Click to enlarge image(s)

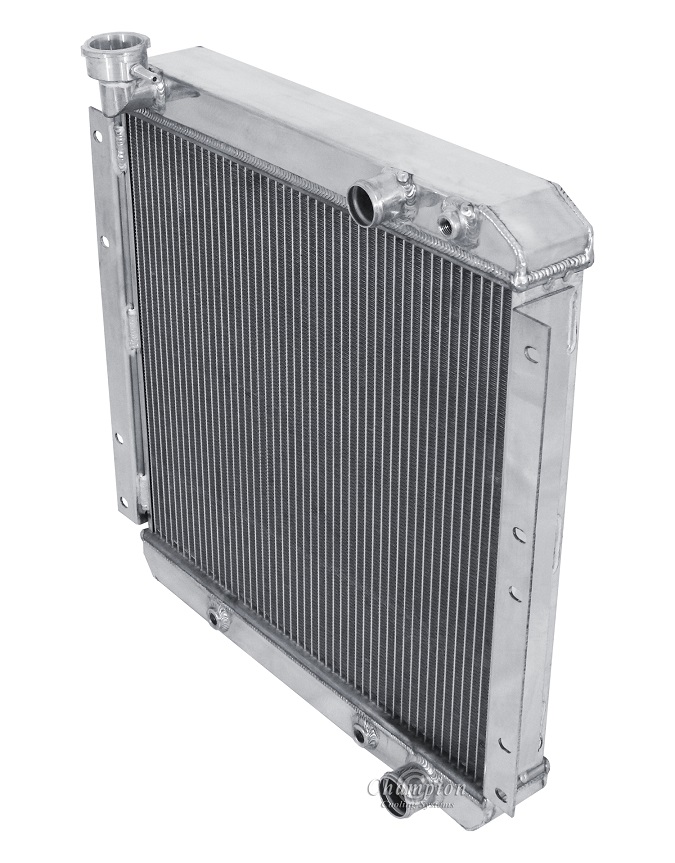

All Aluminum Champion Radiator
3-Row Core | Cools up to 500hp
Correct Photos to follow soon
Both outlets pass Side with steam port

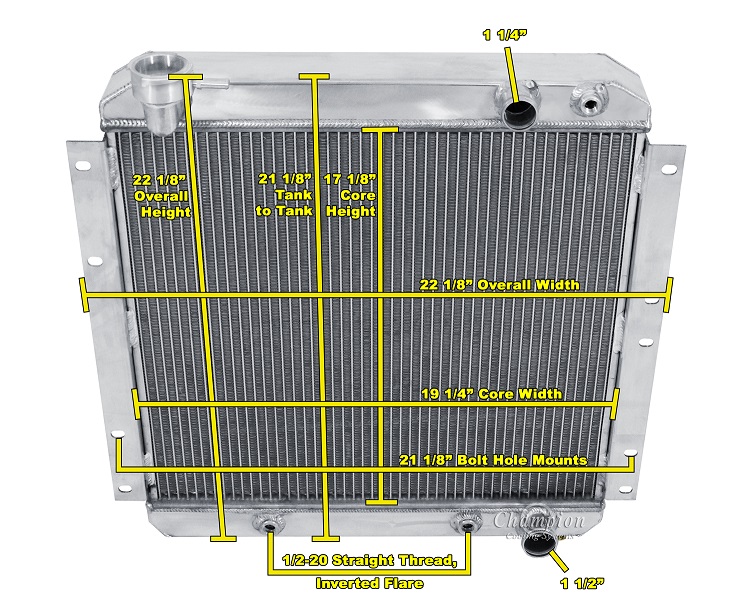

Radiator Dimensions:
Total: 22" tall x 22.13" wide (with brackets)
Core: 16.5" tall x 19.25" wide x 2" thick
Inlet: 1.25" passenger side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted
(core support not included)

Steam port with fittings included
16 lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
Aluminum Fan Shroud is also available (sold separately)

Recommended Fans:
16" Electric Cooling Fan (sold separately)


Compatible With
Toyota Landcruiser FJ40 1958-1984 (3.9L V6, 4.2L V6)
Toyota Landcruiser 1958-1980 (3.9L V6, 4.2L V6)
CC180-LS-180FS16

CC180-LS-180FS16

CC180-LS-180FS16
Click to enlarge image(s)

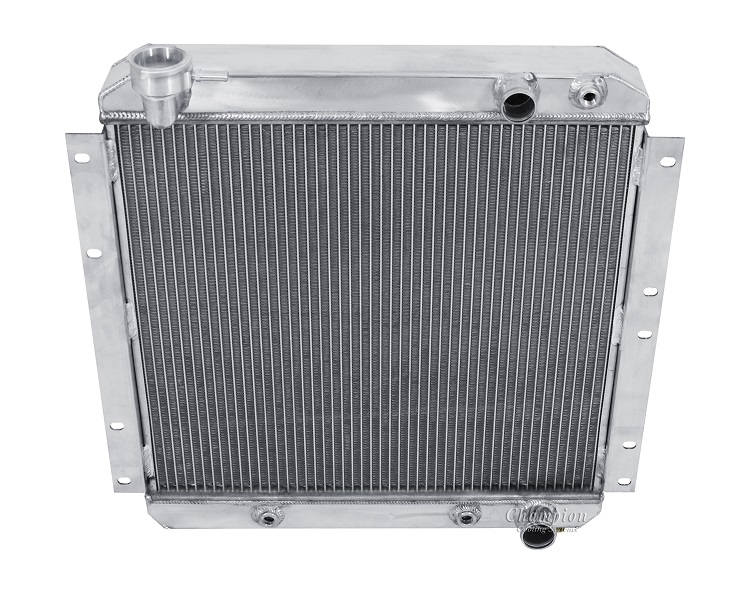

All Aluminum Champion Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" Fan
Correct Photos comming soon
Top inlet passenger side with Steam Port


3-Row Core | Cools up to 500hp

Radiator Dimensions:
Total: 22" tall x 22.13" wide
Core: 17.13" tall x 19.5" wide x 2.25" thick
Inlet: 1.25" passenger side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.625" thick
Total Thickness: 6"

Bracket Mounted
(core support not included)

Steam Port with fittings included
Radiator Cap Included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)

LS Version Available


Compatible With
Toyota Landcruiser FJ40 1958-1984 (3.9L/4.2L V6)
Toyota Landcruiser 1958-1980 (3.9L/4.2L V6)
