Impala
CC281B-LS

CC281B-LS

CC281B-LS
Click to enlarge image(s)

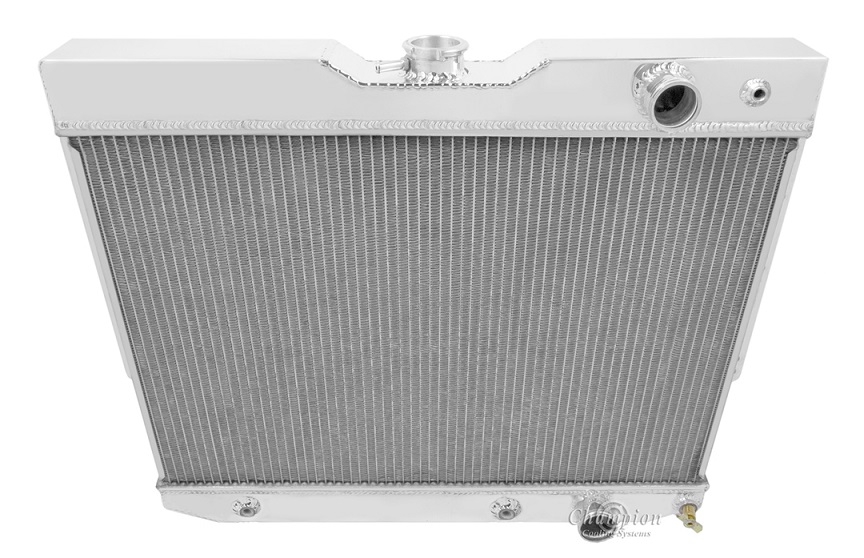

Champion All Aluminum Radiator
3-Row Core | Cools up to 650hp
This LS radiator comes with a Steam Port bung
DOES NOT WORK WITH GMC 605 STEERING BOX

Radiator Dimensions:
Total: 21.25" tall (21.75" with cap) x 28" (with brackets) (27" Center)
Core: 16" tall x 24.5" wide x 2.5" thick
Inlet: 1.25" passenger side
Outlet: 1.5" passenger side
Tanks: 2.75" thick
Tubes: 0.75" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
Aluminum Shroud is also available (sold separately)

When using electric fans:
One 16" or two 12" Electric fans recommended for this core size (sold separately)



Compatible With
Chevrolet Bel Air 1963-1965
Chevrolet Biscayne 1960-1965
Chevrolet Caprice 1959-1962
Chevrolet Chevelle / Caballero 1964-1965
Chevrolet El Camino 1959-1960
Chevrolet Kingswood 1959-1962
Chevrolet Impala 1959-1964
CC281B-LS-281FS12SPF

CC281B-LS-281FS12SPF

CC281B-LS-281FS12SPF
Click to enlarge image(s)

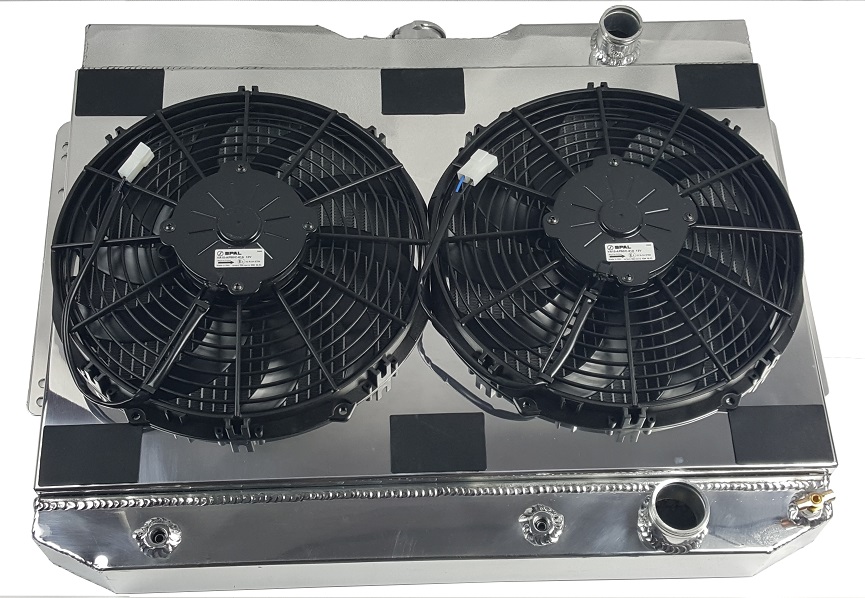

Champion Cooling Aluminum Radiator Plus
Ledfoot Racing Shroud
and Two 12" SPAL-1522 Fans
For LS Conversions


3-Row Core | Cools up to 650hp

Impala's sometimes need a notched lower tank to miss the
optional power
steering box, please refer to CC281PS.
DOES NOT WORK WITH GM 605 STEERING BOX

Radiator Dimensions:
Total: 21.25" tall (21.75" with cap) x 27" wide (28" including brackets)
Core: 16" tall x 24.5" wide x 2.5" thick
Inlet: 1.25" passenger side
Outlet: 1.5" passenger side
Tanks: 2.75" thick
Tubes: 0.75" thick

Total Thickness: 5.63" to back of fans, 4.5" between fans

Bracket Mounted

Steam Port in Top Tank (Plug and barbed fitting included)
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
13 lb. Radiator Cap included



Compatible With
Chevy Impala 1959-1963
Chevy Bel-Air 1963-1965
Chevy Kingswood 1959-1962
Chevy Biscayne 1960-1965
Chevy Caprice 1959-1962
Chevy Chevelle 1964-1965
Chevy El Camino/Cabellero 1959-1960, 1964-1965
