Cutlass (78-87)
Scroll down For additional Options
AE162

AE162

AE162
Click to enlarge image(s)

American Eagle All Aluminum Radiator
2-Row Core | Cools up to 700hp

Radiator Dimensions:
Total: 18.25" tall (19" with cap) x 31" wide
Core: 16 .75" tall x 26.25" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 1" thick

Saddle Mounted

13 lb. Radiator Cap Included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
Aluminum Fan Shroud is also available (sold separately)

Recommended Fans:
One 16" or two 12" Electric fans recommended for this core size (sold separately)



AE162-162FS16

AE162-162FS16

AE162-162FS16
Click to enlarge image(s)

American Eagle Aluminum Radiator
Plus Ledfoot Racing Shroud and 16" Cooling Fan
Verify clearance for electric fan
Total thickness: 6" to fan motor
2-Row Core, 1" tubes | Cools up to 700hp

Radiator Dimensions:
Total: 18.25" tall (19" with cap) x 31" wide
Core: 16.75" tall x 26.25" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 1" thick
Total Thickness: 6.5"

Saddle Mounted

Polished Champion 16 lb Radiator Cap included (Pictured Above)
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)




AE162-162FS12SP

AE162-162FS12SP

AE162-162FS12SP
Click to enlarge image(s)

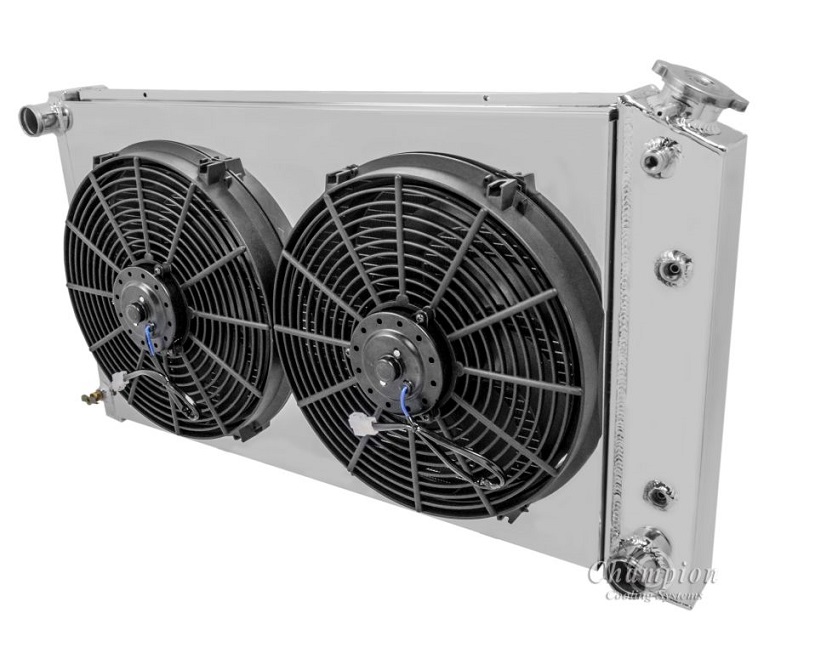

American Eagle Aluminum Radiator
Includes Ledfoot Racing Aluminum Shroud
Plus 2-12" SPAL-1522 Fans "SAVE $40"
2-Row Core, 1" tubes | Cools up to 700hp

Radiator Dimensions:
Total: 18.25" tall (19" with cap) x 31" wide
Core: 16.75" tall x 26.25" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 1" thick
Total Thickness: 5.5" (4.5" between fan motors)

Saddle Mounted

Polished Champion 16 lb Radiator Cap included (Pictured Above)
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)



Specifications
Chevy Camero (1970-1981) 4.1l L6, 305ci V8, 350ci V8
Chevy Malibu (1978-1983) 267ci V8, 305ci V8, 350ci V8
Chevy Monte Carlo (1978-1988) 3.3l V6, 3.8l V6, 267ci V8, 305ci V8
Olds Cutlass (1978-1987) 260ci V8, 305ci V8, 350ci V8
