CC110-110FS12TS

CC110-110FS12TS

CC110-110FS12TS
Click to enlarge image(s)


All Aluminum Champion Radiator
Plus Ledfoot Racing Shroud and  2-12" Champion Turbo Series Fans
3-Row Core | 550hp Rating

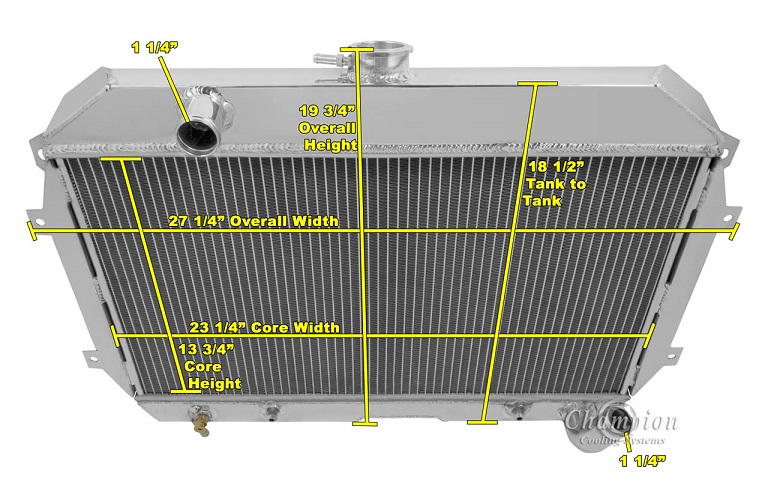

Radiator Dimensions:
Total: 18.5" (19.75" with cap) x 27.5" (including brackets)
Core: 13.75" tall x 23" wide x 2" thick
Tanks: 2.75" thick
Inlet: 1.25" drivers side
Outlet: 1.25" passenger side (angled upward)
Tubes: 0.63" thick
Total Thickness: 6.5 to back of fans, 5.75" at center
Fan Thickness: 2.05
Bracket Mounted

13 lb. Radiator Cap Included
Transmission Cooler Included (metric 14-1.5)



Compatible With
Datsun 240z 1970-1973 (2.4L I6, 2.6L I6, 2.8L I6, 3.1L I6)
Datsun 260z 1974-1975 (2.4L I6, 2.6L I6, 2.8L I6, 3.1L I6)
EC110-110FS12TS

EC110-110FS12TS

EC110-110FS12TS
Click to enlarge image(s)

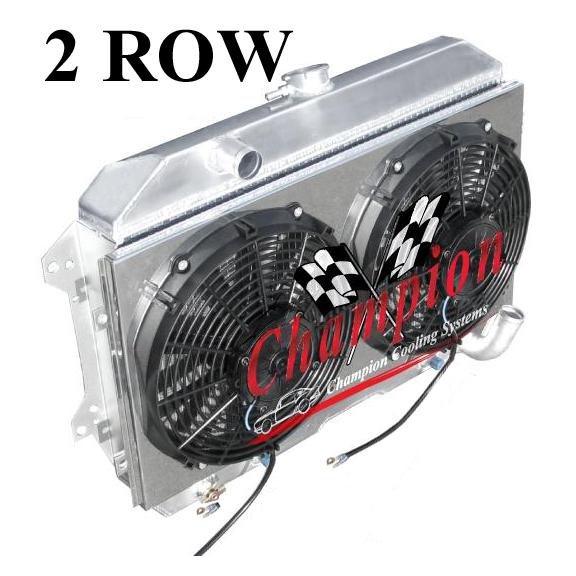

Champion All Aluminum Radiator
Plus Ledfoot Racing Shroud and 2-12" Champion Turbo Series Fans
2-Row Core | 400hp Rating

Radiator Dimensions:
Total: 18.5" tall (19.75" with cap) x 27.5" (with brackets)
Core: 13.75" tall x 23" wide x 1.75" thick
Inlet: 1.25" driver's side
Oulet: 1.25" passenger side
Tanks: 2.75" thick
Tubes: 0.75" thick
Total Thickness: 6.5 to back of fans, 5.75" at center
Fan Thickness: 2.05

Bracket Mounted
13lb. Radiator Cap included
(metric 14-1.5)
