(02-04) Hummer H1 Radiator

CCHVB

CCHVB

CCHVB
Click to enlarge image(s)

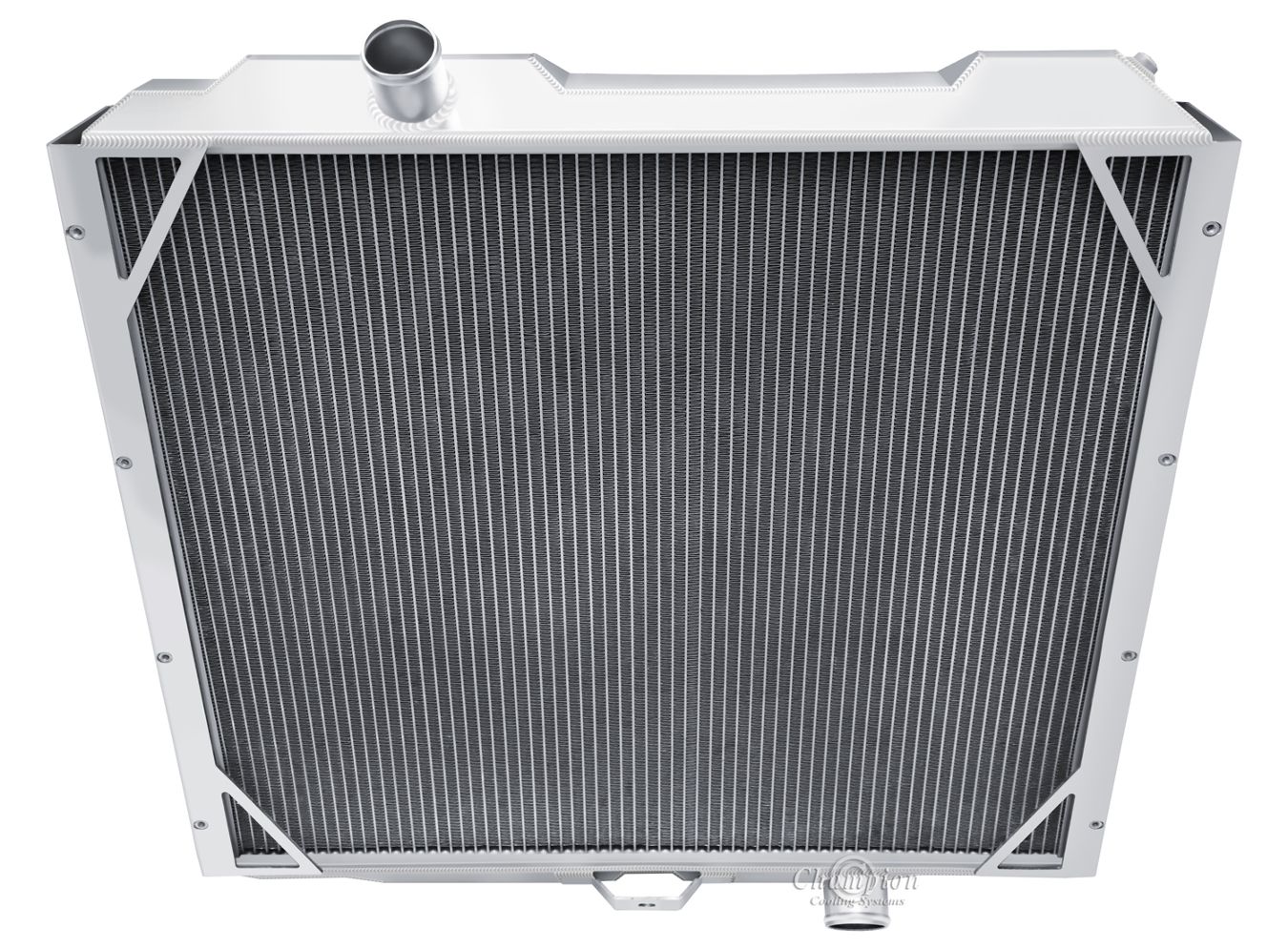

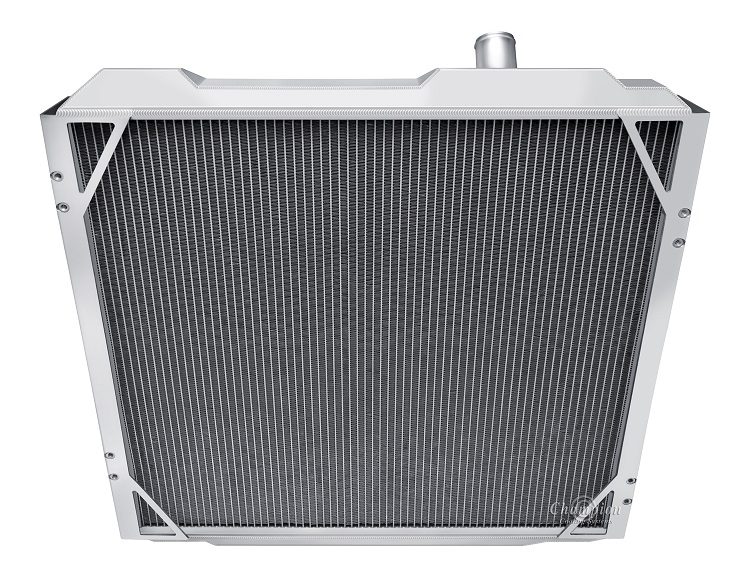

Champion All Aluminum Radiator
3-Row Core | Cools up to 700hp
Includes bung on upper right for overflow (not shown)

Radiator Dimensions:
Total: 30.63" tall x 28.38" wide (with brackets)
Core: 24.25" tall x 26.25" wide x 2.5" thick
Inlet: 1.75" driver side
Outlet: 2" passenger side
Tanks: 3.13" thick
Tubes: 0.75" thick

OEM Mounting

13 lb. Radiator Cap included
NO Transmission Cooler included



Specifications
1992 - 2001 AM General Hummer 5.7L 350ci V8, 6.2L 379ci V8, 6.5L 395ci V8
2002 - 2004 Hummer H1 6.5L 395ci V8
2006 Hummer H1 Alpha 6.5L 395ci V8
1984-Present Military Humvee
