Corvette (69-72) Big Block Auto-Transmissioon

CC1215-1215FS12SPF

CC1215-1215FS12SPF

CC1215-1215FS12SPF
Click to enlarge image(s)

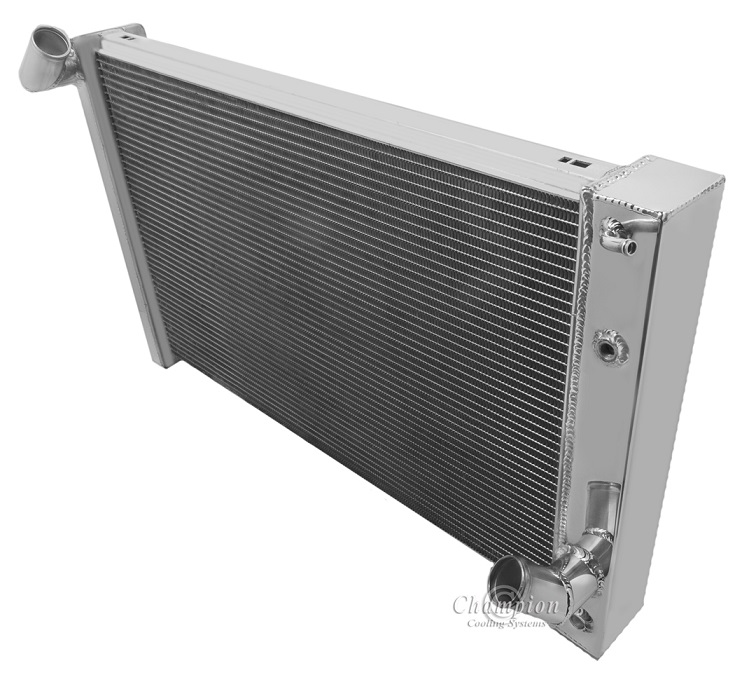

Champion Cooling All Aluminum Radiator Plus

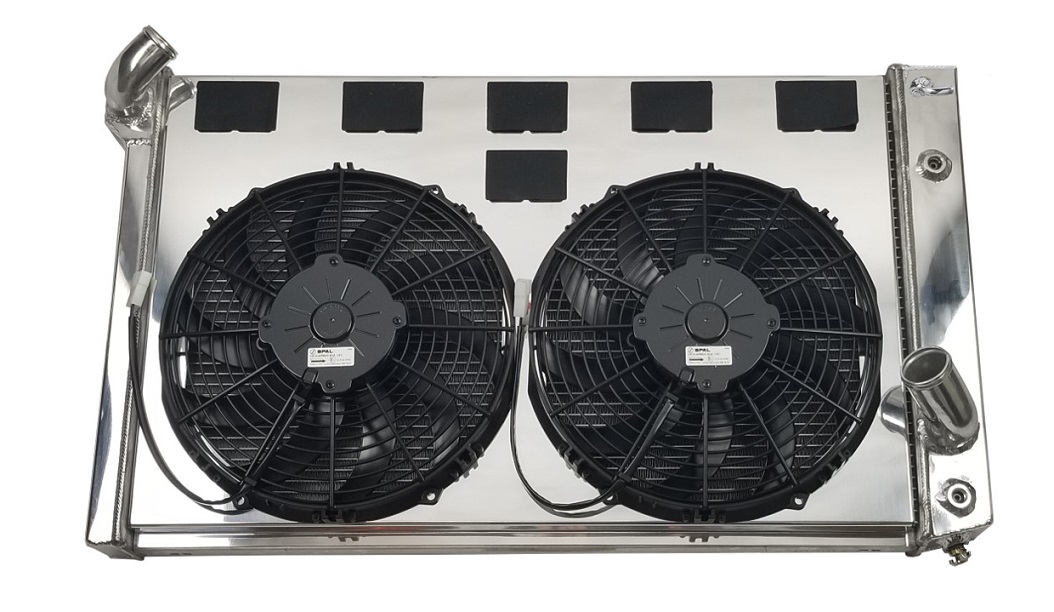

Ledfoot Racing Shroud
 & Two 12" SPAL 1522 fans

Verify clearance for electric fan
3-Row Core | Cools up to 650hp

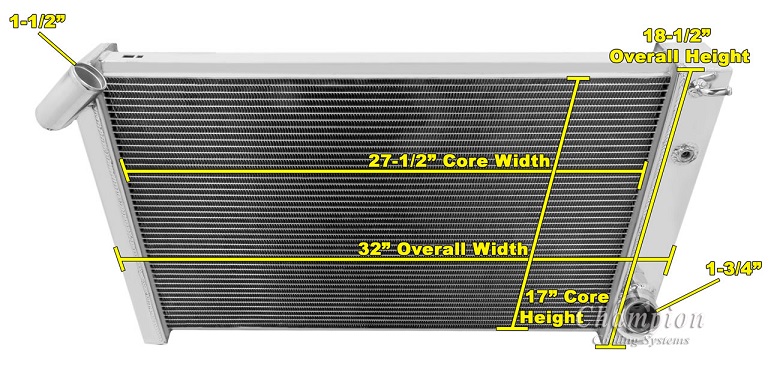

Radiator Dimensions:
Total:
18.63" tall x  31.63" wide
Core: 17.13" tall x 27.63" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3.38" thick
Tubes: 0.63" thick
Total Thickness: 5.5" (4.5" between motors)

Saddle Mounted
Note: no fill neck

Transmission Cooler Included (1/2-20 Straight Thread)



Compatible With
Chevrolet Corvette 1969-1972 "Big Block" (427ci/7.0L V8, 454ci/7.4L V8)
