Ford Bronco Radiator 1966-1977

AE522

AE522

AE522
Click to enlarge image(s)

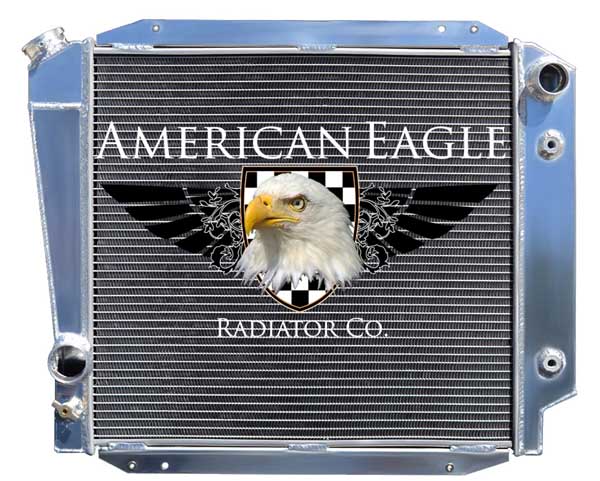

American Eagle All Aluminum Radiator
Conversion style radiator

2-Row Core | Cools up to 600hp | 1" Thick Tubes

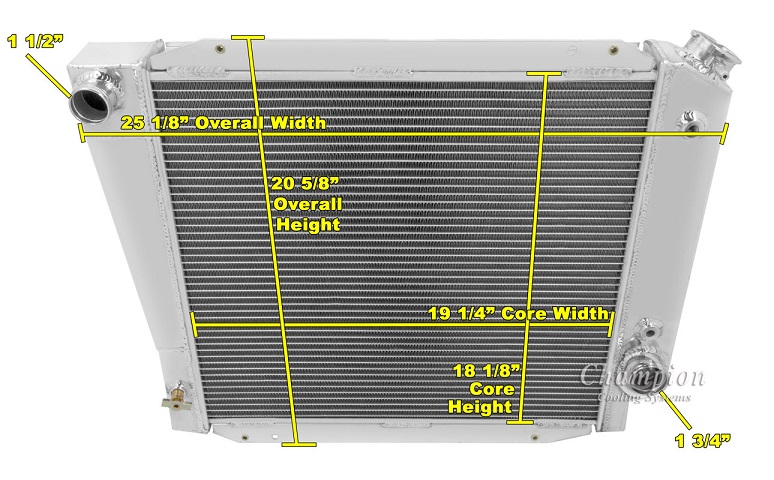

Radiator Dimensions:
Total: 20.88" tall (with cap) x 26" wide (including brackets)
Core: 19.1" tall x 19" wide x 2.25" thick
Inlet: 1.5" passenger side
Outlet: 1.75” Driver side
Tanks: 2.75" thick
Tubes: 1" thick

Bracket Mounted

16 lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)


Compatible With
66-77 Bronco with V8 Engine Conversion (5.0, etc)
AE522-522FS16

AE522-522FS16

AE522-522FS16
Click to enlarge image(s)

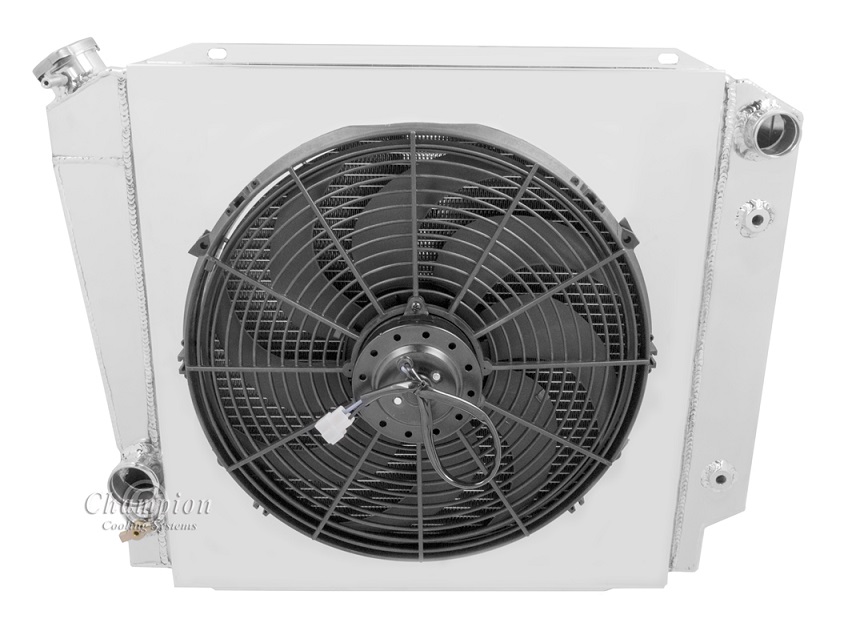

American Eagle All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud and 16" Fan
Verify clearance for electric fan
Total thickness: 6.25" to fan motor

Conversion Style radiator

2-Row Core, 1" thick tubes | Cools 600hp
($20 Discount)

Radiator Dimensions:
Total: 21" tall x 25" wide
Core: 19" tall x 19" wide x 2.25" thick
Inlet: 1.5” driver side / Outlet: 1.75” pass side
Tanks: 2.5" thick
Tubes: 1" thick

Saddle Mounted

Transmission Cooler included (1/8-27NPT)
Radiator Cap Included

4-Row Mounts needed for this thicker Radiator



Compatible With
66-77 Bronco with V8 Engine Conversion (5.0, etc)
