Cadillac (60-65)

Scroll down for additional options

For the early 60 models some may have the lower outlet curved up
please note your bottom outlet modifications may be needed.

EC2284-284FS16

EC2284-284FS16

EC2284-284FS16
Click to enlarge image(s)

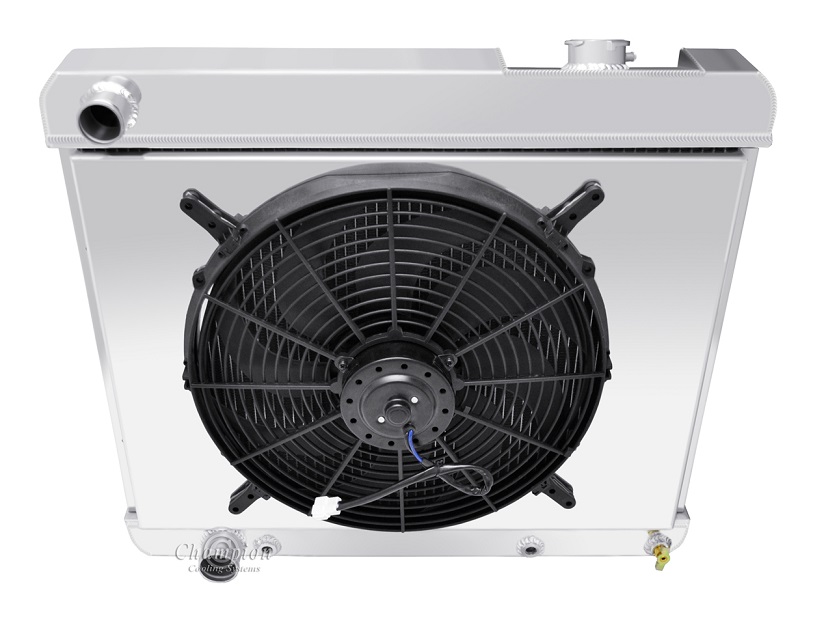

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud and 16" Fan
Verify clearance for electric fan
Total thickness: 6.25" to fan motor

2-Row Core | Cools 400hp

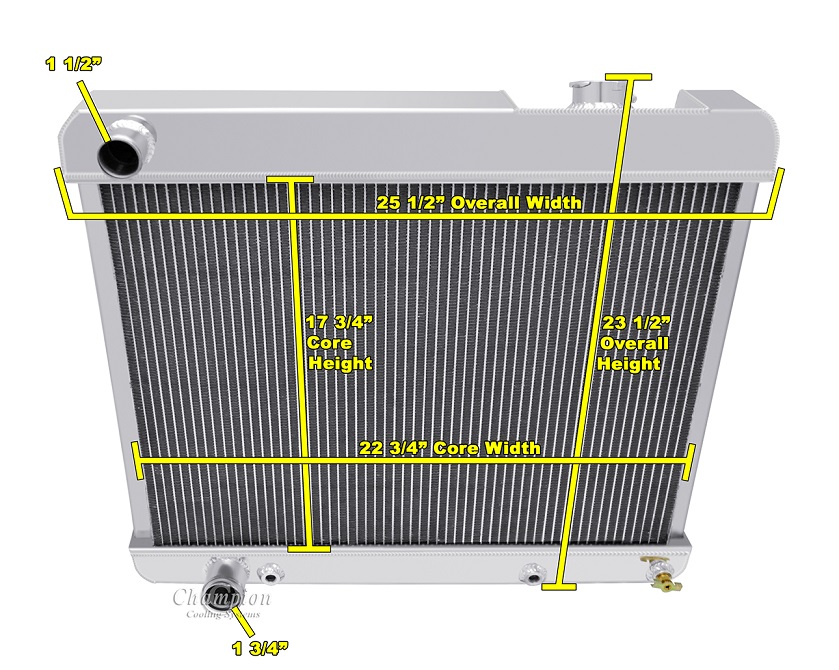

Radiator Dimensions:
Total: 22.5" tall (23.5" with cap) x 25.25" wide
Core: 17.38" tall x 22.75" wide x 1.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" driver Side
Tanks: 2.75" thick, 2.38" thick (bottom)
Tubes: 0.75" thick
Total Thickness: 5.5"

Saddle Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)



CC2284-2284FS16

CC2284-2284FS16

CC2284-2284FS16
Click to enlarge image(s)

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" Fan
Verify clearance for electric fan
Total thickness: 6.5" to fan motor

3-Row Core | Cools up to 600hp

Radiator Dimensions:
Total: 22.5" tall (23.5" with cap)  x 25.25" wide
Core: 17.8" tall x 22.75" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.75" driver Side
Tanks: (top) 2.75" thick, (bottom) 2.38" thick
Tubes: 0.63" thick
Total Thickness: 6"

Saddle Mounted

Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
13 lb. Radiator Cap included



Compatible With
Oldsmobile Starfire 1961-1962
Oldsmobile "88" 1961-1962
Cadillac 1960-1965
