(65-71) Jeep CJ Champion Radiators

EC6571

EC6571

EC6571
Click to enlarge image(s)

Please confirm width, if it is wider please refer to the CC7071

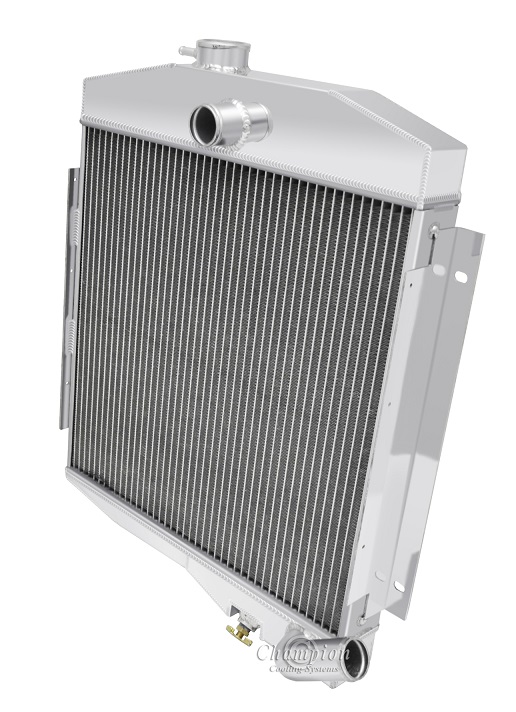

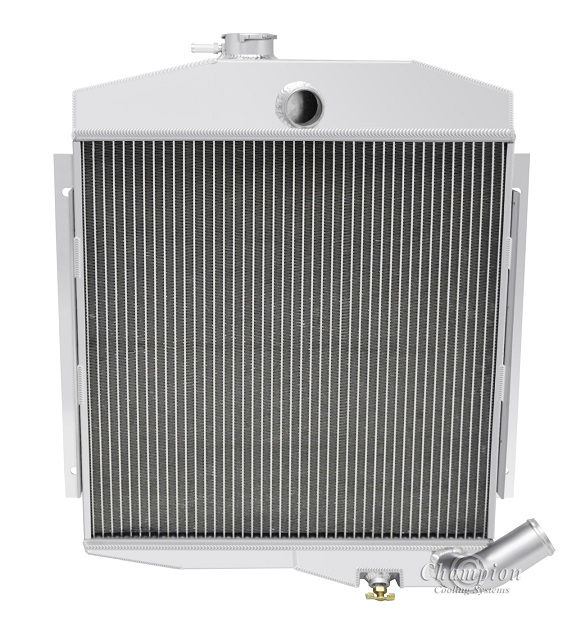

Champion All Aluminum Radiator

2-Row Core | Cools up to 300hp

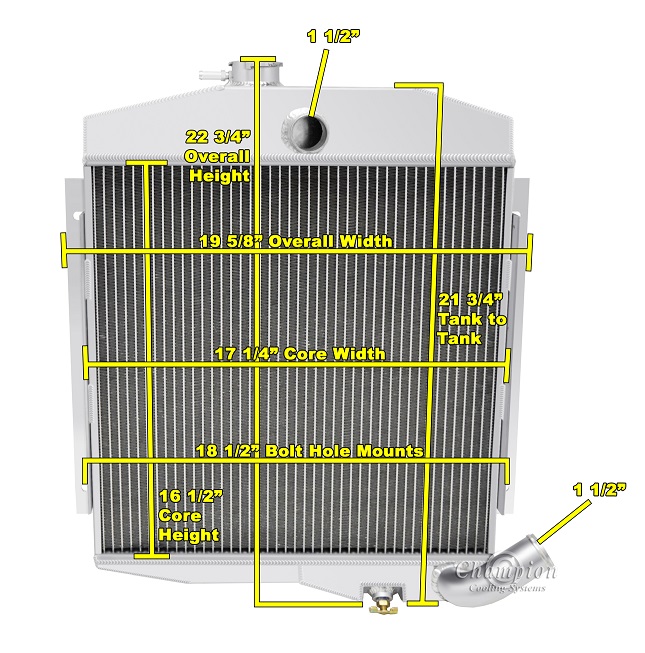

Radiator Dimensions:
Total: 19.63" wide (including brackets) x 22.75" tall

Core: 17.25" wide x 16.5" tall x 1.63" thick
Inlet: 1.5" center side
Outlet: 1.5" passenger side
Tanks: 2.375" thick
Tubes: 0.75" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler NOT Included


When using electric fans (sold separately):
One 16" Electric fan recommended for this core size



Compatible With
1965 - 1971 Jeep CJ5 Base (3.7L 225ci Buick V6)
CC6571

CC6571

CC6571
Click to enlarge image(s)

Please confirm width, if it is wider please refer to the CC7071
Champion All Aluminum Radiator

3-Row Core | Cools up to 450hp

Radiator Dimensions:
Total: 19.63" wide (including brackets) x 22.75" tall

Core: 17.25" wide x 16.5" tall x 2" thick
Inlet: 1.5" center side
Outlet: 1.5" passenger side
Tanks: 2.375" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler NOT Included

When using electric fans (sold separately):
One 16" Electric fan recommended for this core size



Compatible With
1965 - 1971 Jeep CJ5 Base (3.7L 225ci Buick V6)
