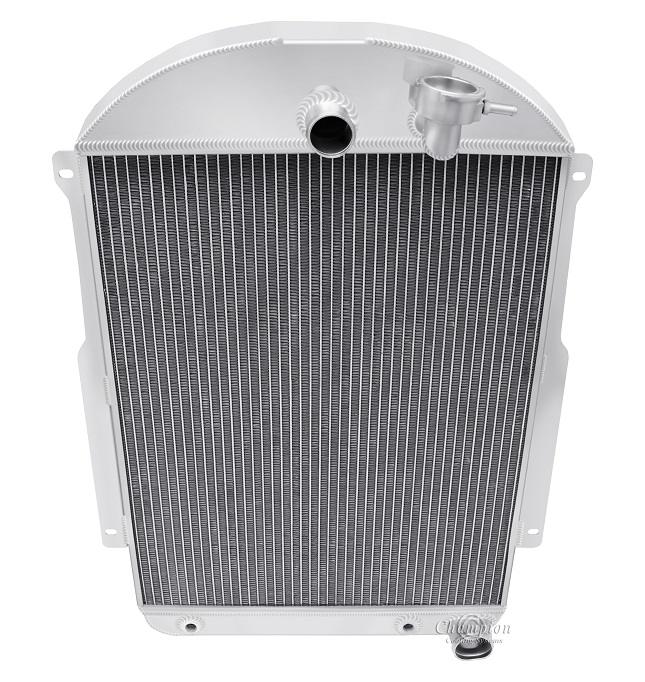

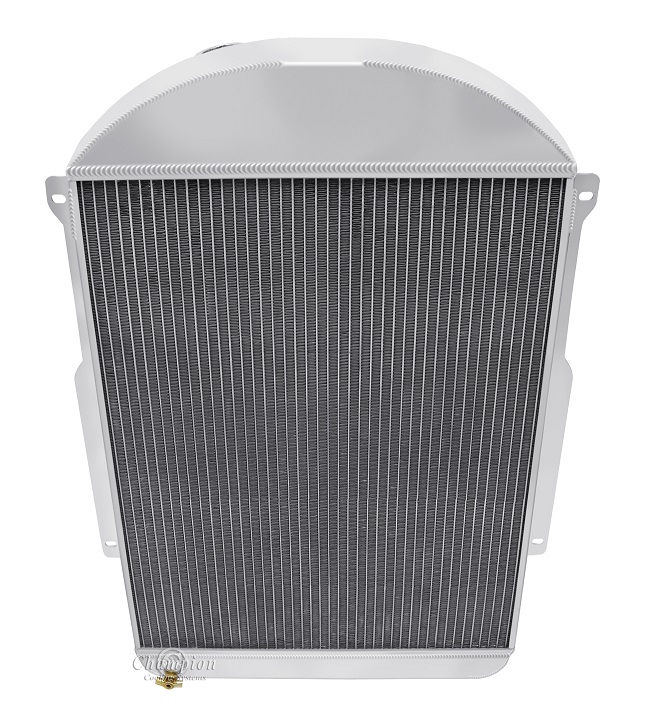

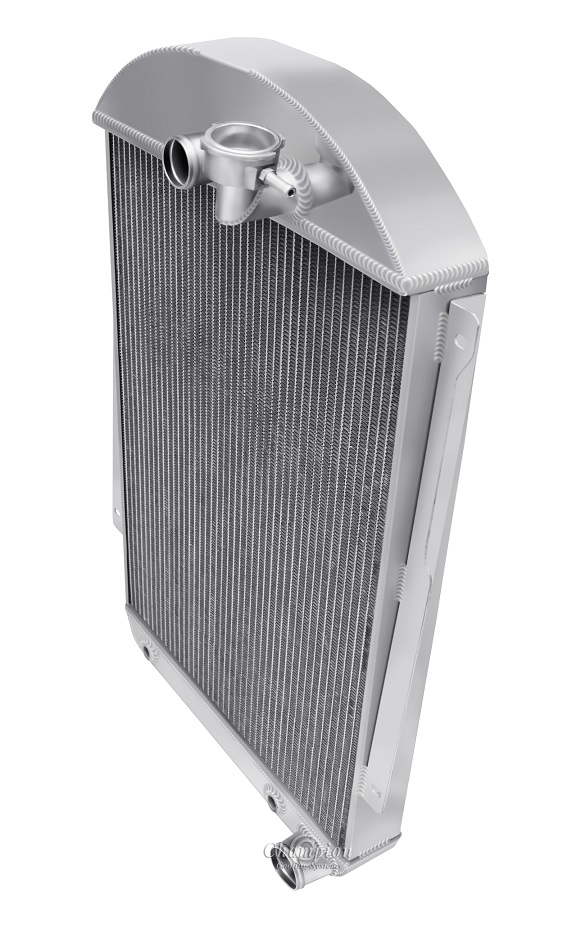

1939 Chevy Car Radiator V8
CC39CH

CC39CH

CC39CH
Click to enlarge image(s)
All Aluminum Champion Radiator
3-Row Core | Cools up to 550hp
For V8 Engines

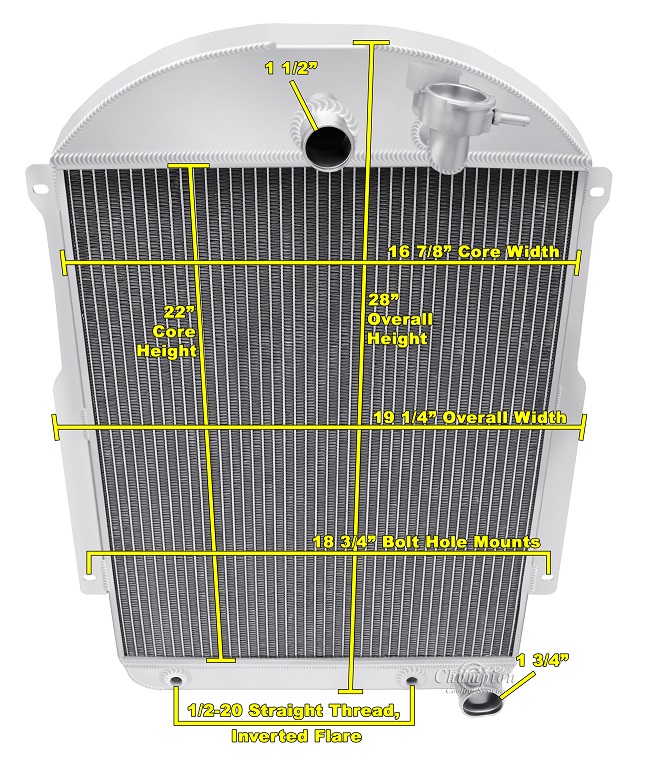

Radiator Dimensions:
Total: 28" tall x 19.25" wide
Core: 22" tall x 16.83" wide x 2.25" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tanks: Top 3" thick
            Bottom 2.5" thick
Tubes: 0.63" thick

13 lb. Radiator Cap included
Transmission Cooler Included (1/2" 20 straight thread)

When using electric fans:
One 16" fan recommended for this core size (sold separately)


Compatible With
1939 Chevrolet JA Master Deluxe Chevy V8 Conversion
1939 Chevrolet Master 85 Chevy V8 Conversion

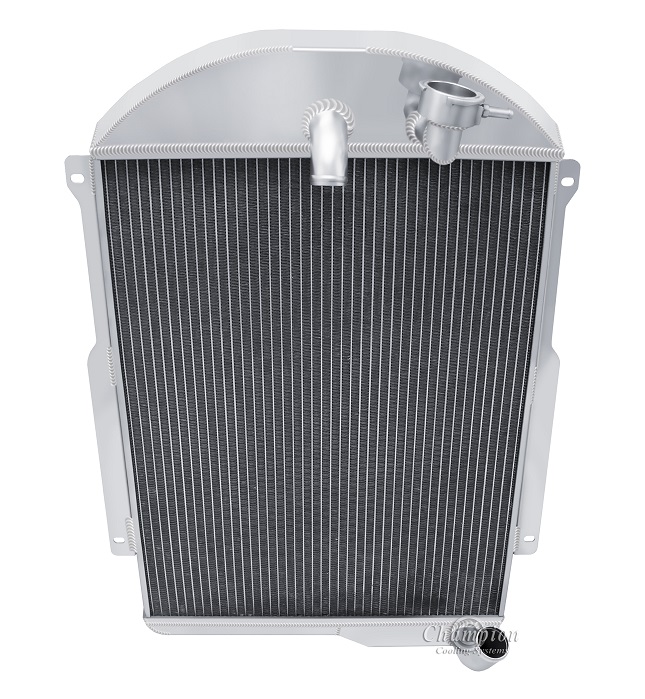

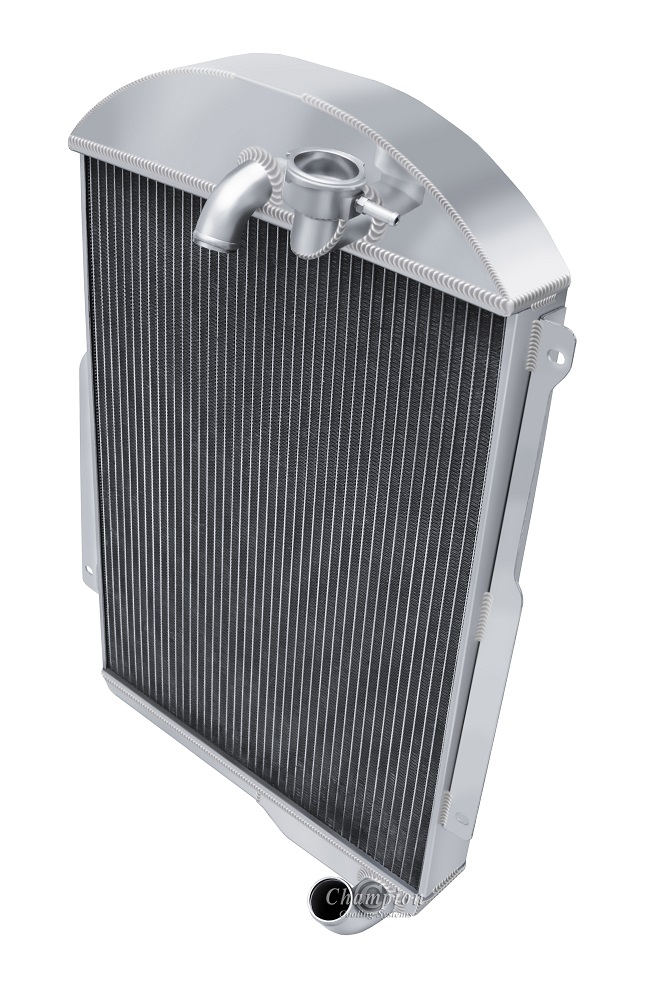

1939 Chevy Car Radiator 6 CYL
CC39-6

CC39-6

CC39-6
Click to enlarge image(s)
All Aluminum Champion Radiator
3-Row Core | Cools up to 550hp
For 6 Cyl Engines

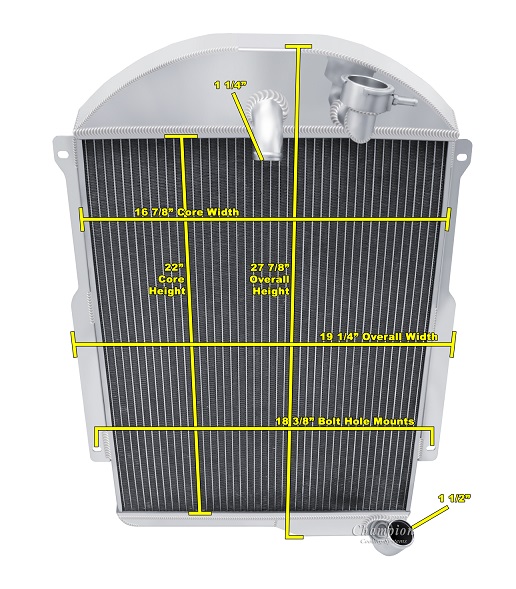

Radiator Dimensions:
Total: 28" tall x 19.25" wide
Core: 22" tall x 16.83" wide x 2.25" thick
Inlet: 1.25" center
Outlet: 1.5" passenger side w/ bend
Tanks: 3" thick upper
            2.5" thick lower
Tubes: 0.63" thick

13 lb. Radiator Cap included
NO Transmission Cooler Included

When using electric fans:
One 16" fan recommended for this core size (sold separately)


Compatible With
1939 Chevrolet JA Master Deluxe 6CYL
1939 Chevrolet Master 85 6CYL
