CC1826DP
 |
     |
| Click to enlarge image(s) |

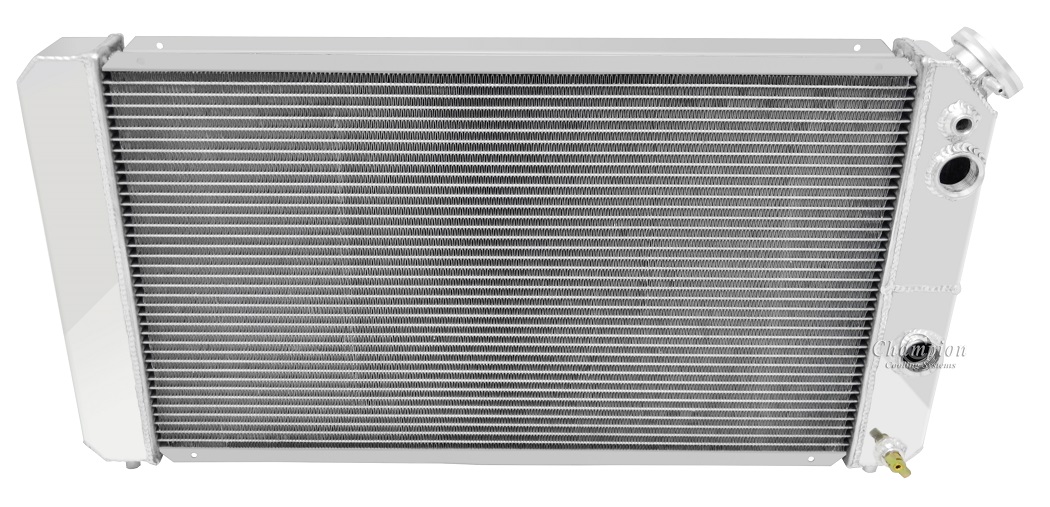

Champion All Aluminum Radiator
Dual Pass / LS Conversions

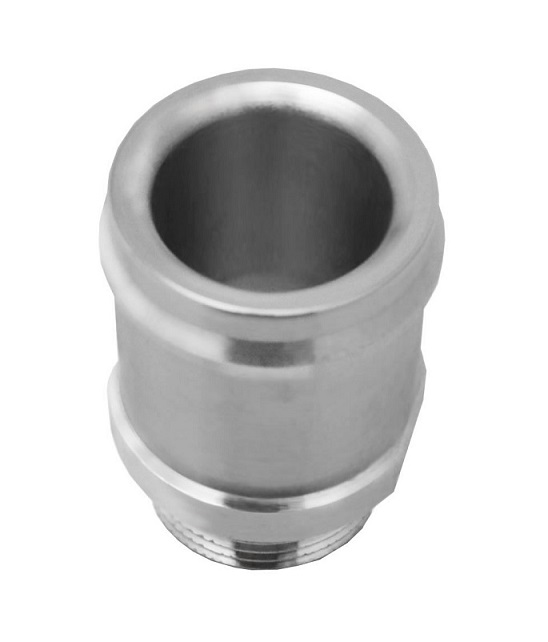

You MUST Choose your billet outlets in "Popular Add-Ons"
16-& 20 AN available upon request just call
3-Row Core | Cools up to 800hp
If you remove the lower pins this radiator is only 16.25" tall

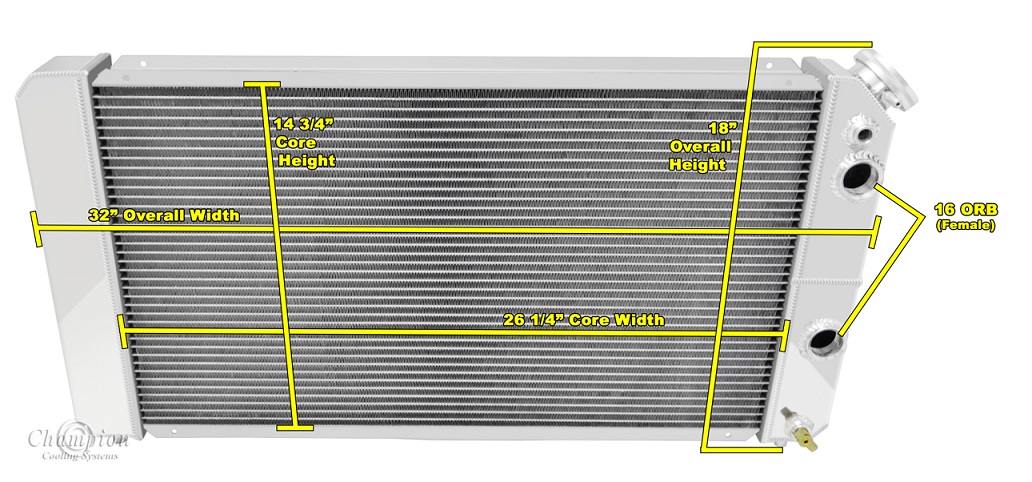

Radiator Dimensions:
Total: 16.25"(18" incl pins) tall x 32" wide
Core: 14.75" tall x 26.25" wide x 2" thick
Inlet: (Choice your size below) passenger side
Outlet: (Choice your size below) passenger side
Tanks: 2.63" thick
Tubes: 0.63" thick
Saddle Mounted

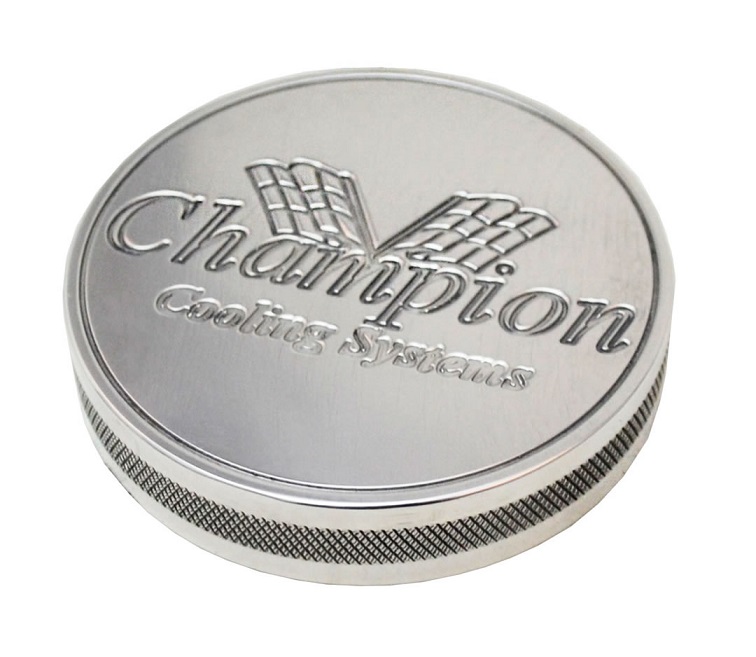

16 lb. Billet Radiator Cap included

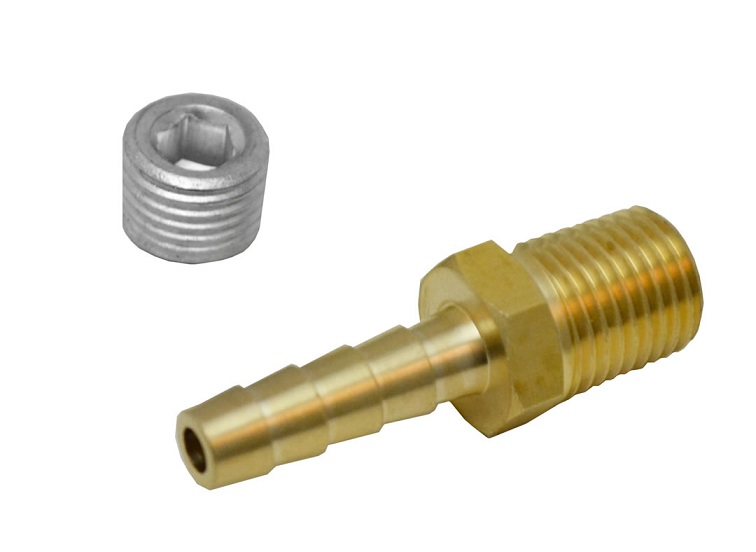

Steam Port with 1/4" barbed fitting and plug included
When using electric fans (sold separately):
Two 12" Electric fans recommended for this core size
| Compatible with: | |
| Chevy/GMC S/T Series Pickups/Blazers-1996-05 | |
| Chevy/GMC Blazers/Jimmy-1996-05 | |
| Olds Bravada-1996-01 | |
| S10 V8 Conversion 86-05 | |
| Isuzu Hombre-1997-00 |
CC1826DP-1826FS12SP
 |
 |
| Click to enlarge image(s) |
Dual Pass / LS Conversions

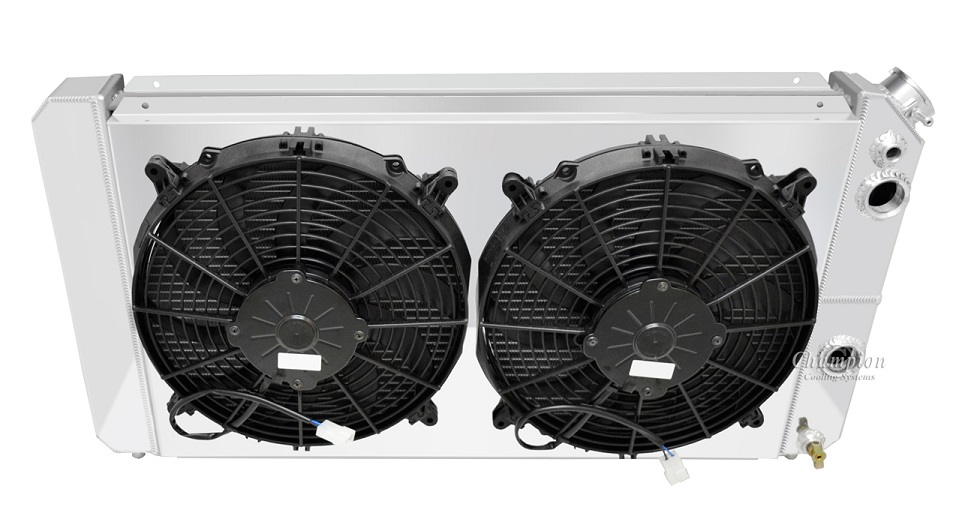

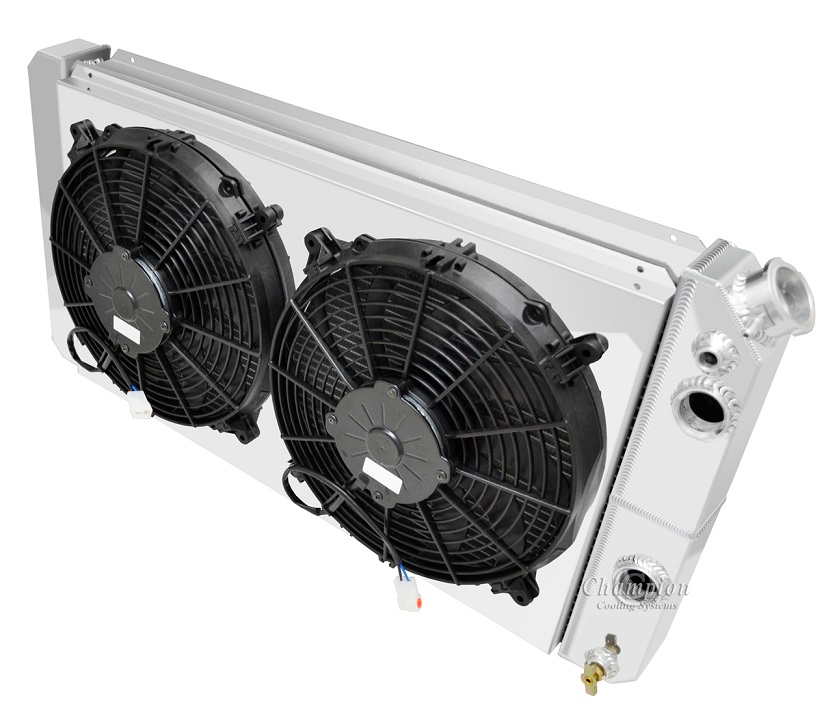

Includes Ledfoot Racing Aluminum Shroud
Plus 2-12" SPAL-1522 Fans and Shroud "SAVE $30"
You MUST Choose your billet outlets in "Popular Add-Ons"
16-& 20 AN available upon request just call
Please confirm your available room to the Total Thickness below
3-Row Core | Cools up to 800hp
If you remove the lower pins this radiator is only 16.25" tall
Radiator Dimensions:
Total: 16.25"(18" incl pins) tall x 32" wide
Core: 14.75" tall x 26.25" wide x 2" thick
Inlet: passenger side
Outlet: passenger side
Tanks: 2.63" thick
Tubes: 0.63" thick
Total Thickness: 5.75" (4.75" between fan motors)
Pin Mounted
Radiator Cap Included
| Compatible With | |
| Chevrolet/GMC S/T Series Pickups/Blazers 1996-2005 (4.3L 262ci V6) | |
| Chevrolet/GMC Blazer/Jimmy 1996-2005 (4.3L 262ci V6) | |
| Oldsmobile Bravada 1996-2001(4.3L 262ci V6) | |
| S10 V8 Conversion 86-05 | |
| Izuzu Hombre 1997-2000 (4.3L 262ci V6) |
