Chevy Cars (49-54)
CC4954B-LS

CC4954B-LS

CC4954B-LS
Click to enlarge image(s)

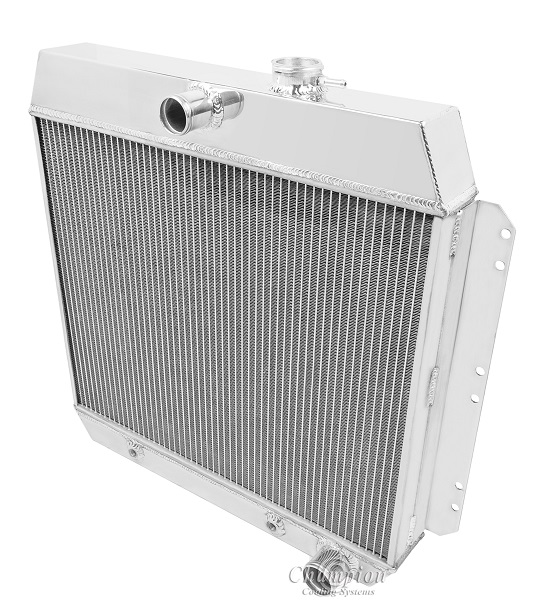

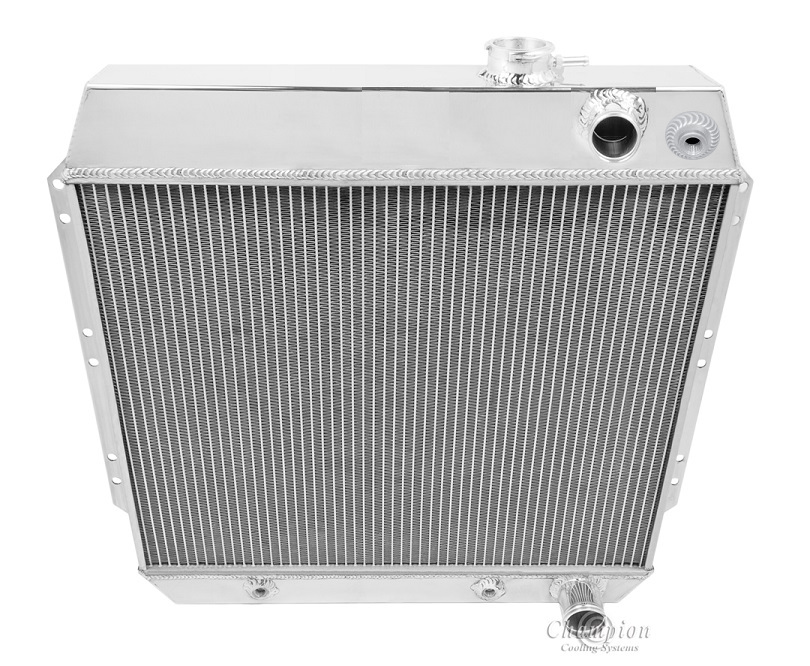

Champion All Aluminum Radiator
3-Row Core | Cools up to 650hp
**Note: For LS Conversions Only**

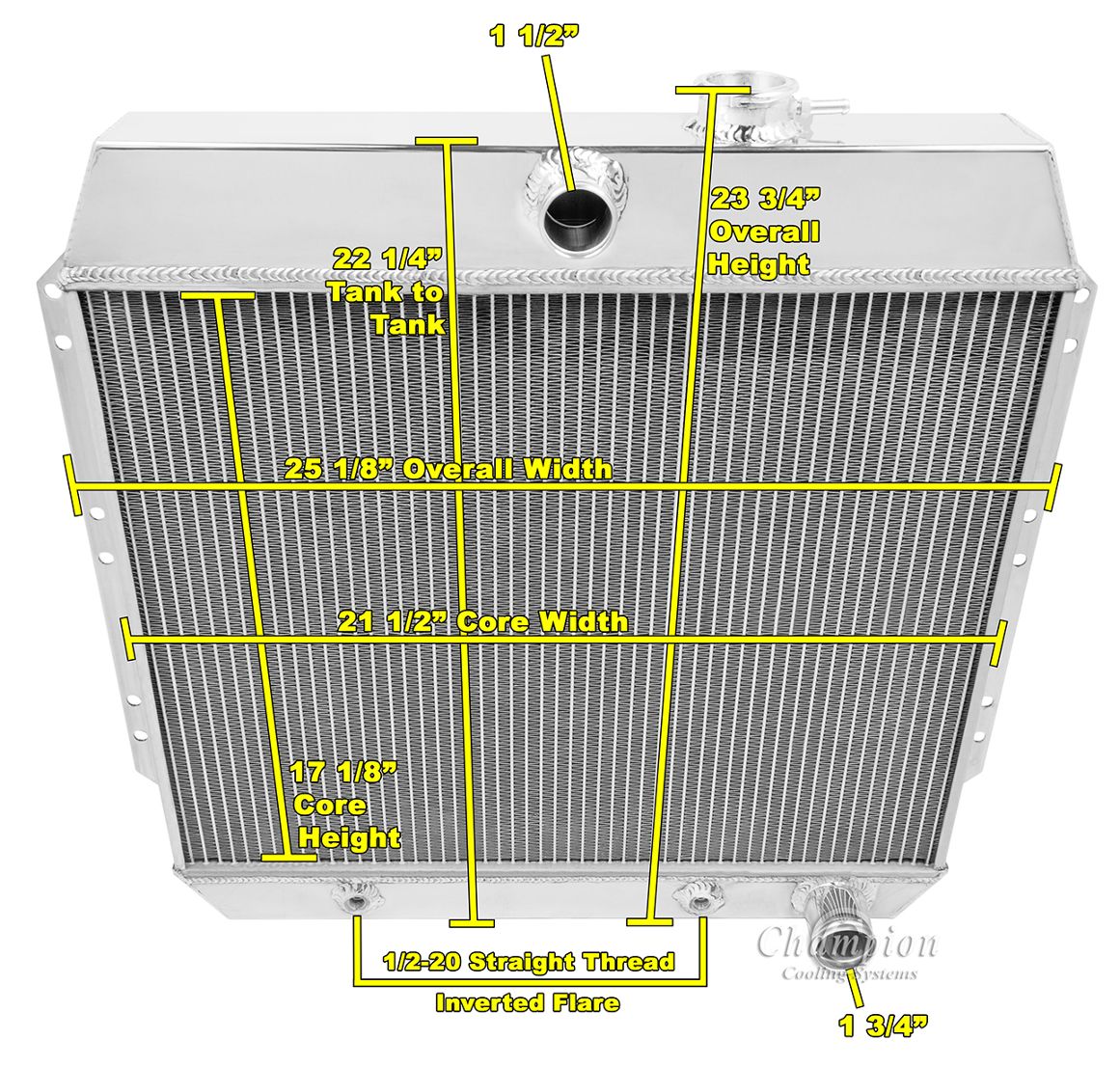

CC4954 Radiator Dimensions:
Total: 23.63" tall (Incl Cap) x 25.25" wide (Including Brackets)
Core: 17.13" tall x 21.75" wide x 2.5" thick
Inlet: 1.25" center
Outlet: 1.5" passenger side
Tanks: 3" thick
Tubes: 0.75" thick

Bracket Mounted

Includes steam port
13 lb. Radiator Cap included
Transmission Cooler Included (1/2"- 20 straight thread)

note: Petcock on back side


Compatible With
Chevrolet Cars 1949-1954 V8 Only
CC4954B-LS-4954FS16C

CC4954B-LS-4954FS16C

CC4954B-LS-4954FS16C
Click to enlarge image(s)

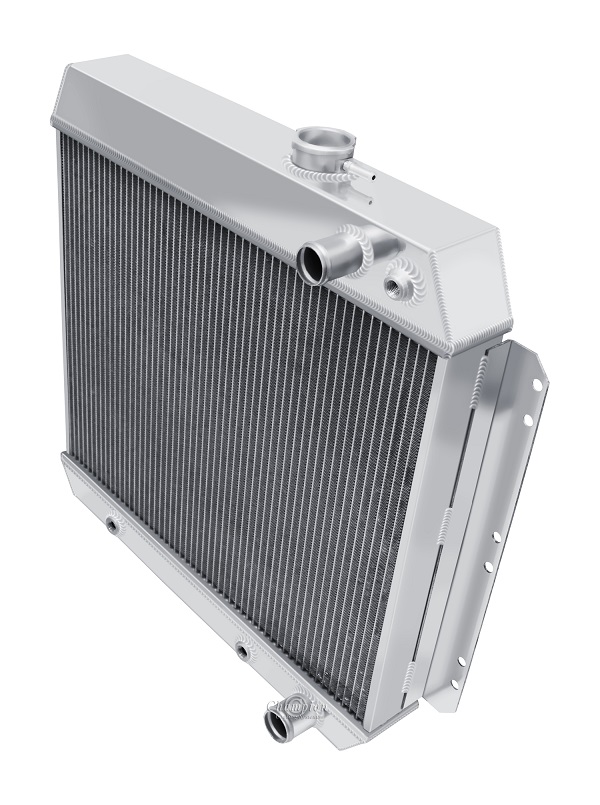

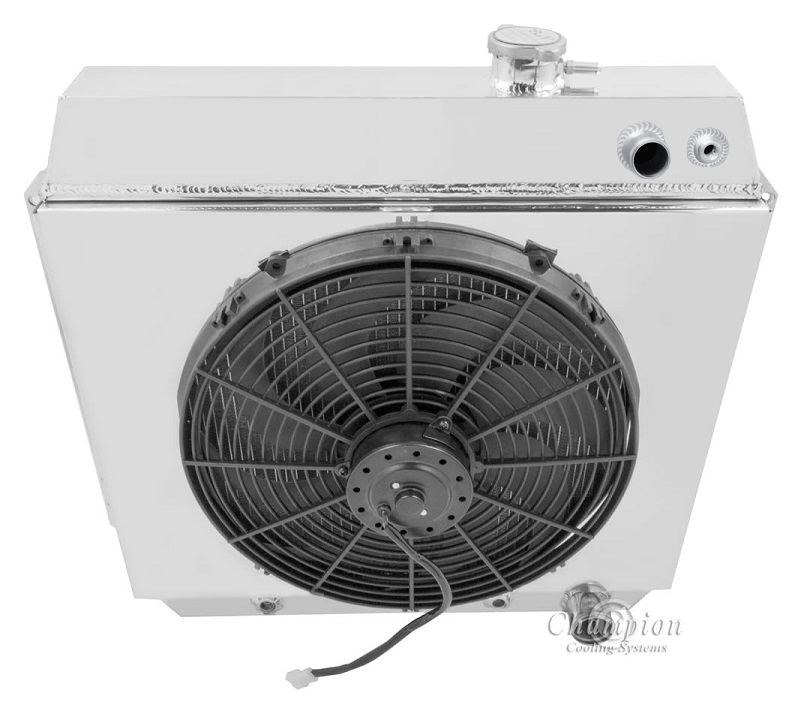

Champion All Aluminum LS Radiator
Plus Shroud and 16" Pro-Series Fan

Verify clearance for electric fan
Total thickness: 6.5" to fan motor

3-Row Core | Cools up to 650hp
**Note: For LS Conversions**
Photos of radiator alone are correct

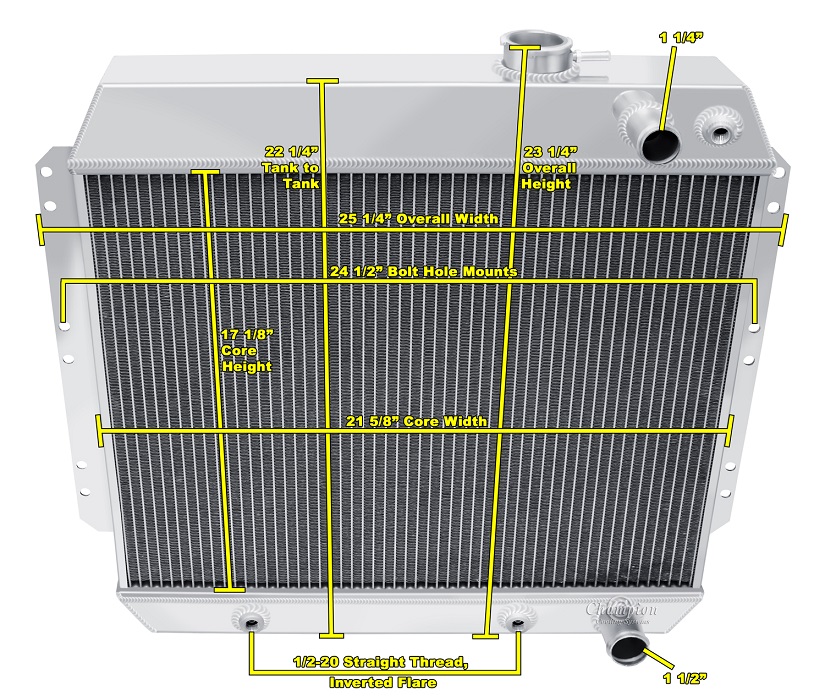

CC4954 Radiator Dimensions:
Total: 23.63" tall (Incl Cap) x 25.25" wide (Including Brackets)
Core: 17.13" tall x 21.75" wide x 2.5" thick
Inlet: 1.25" passenger side
Outlet: 1.5" passenger side
Tanks: 3" thick
Tubes: 0.75" thick

Bracket Mounted

Steam Port and fittings are included
13 lb. Radiator Cap included
Transmission Cooler Included (1/2"- 20 straight thread)

Note: Petcock on grill side of radiator


Compatible With
Chevrolet Cars 1949-1954 V8 Only
