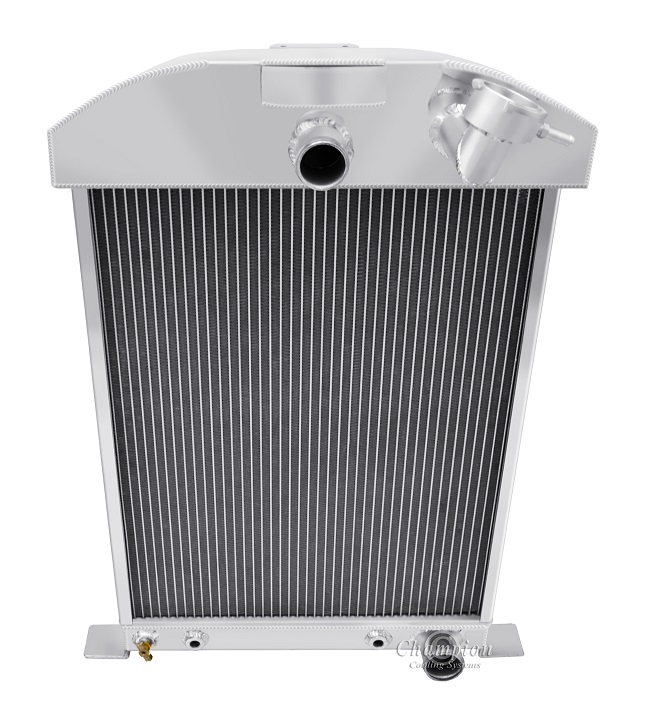

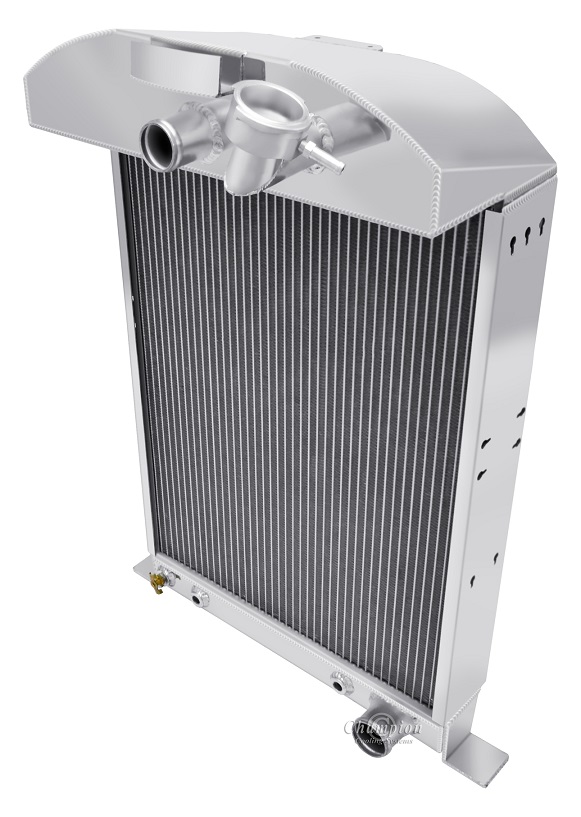

All Aluminum Champion Radiator
3-Row Core | Cools up to 600hp
Comes with optional bracket for a two-piece piano-hinge hood

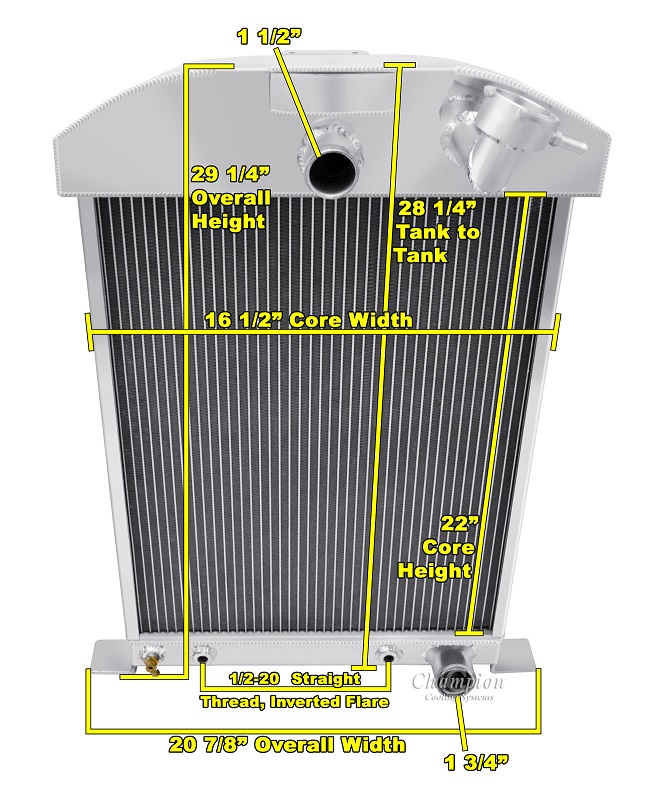

Radiator Dimensions:
Total: 20.83" wide (lower bracket) x 29.25" tall
Core: 16.5" wide x 22" tall x 2.5" thick
Inlet: 1.5" passenger
Outlet: 1.75" driver side
Top Tank: 6 .75 thick
Bottom Tank: 3" thick
Tubes: 0.75" thick

Bracket Mounted

13 lb Radiator Cap Included
Transmission Cooler Included (1/8-27 NPT)

When using electric fans:
One 16" fan recommended for this core size (sold separately)

Compatible With
1933- 1934 Ford Cars Chevy V8 Conversion
