CC797

CC797

CC797
Click to enlarge image(s)

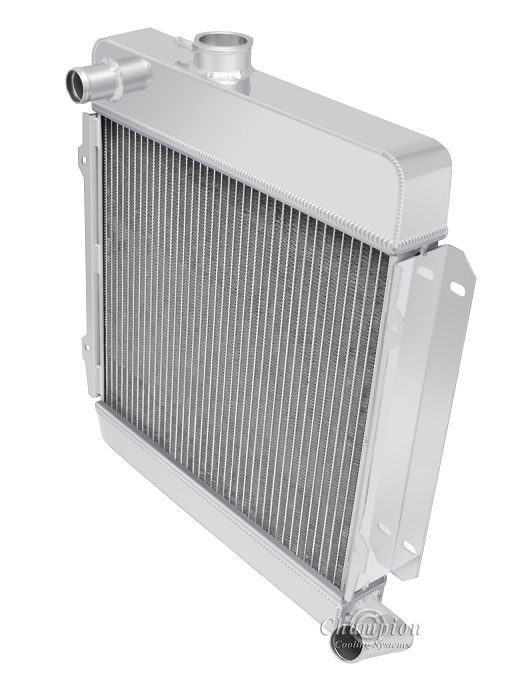

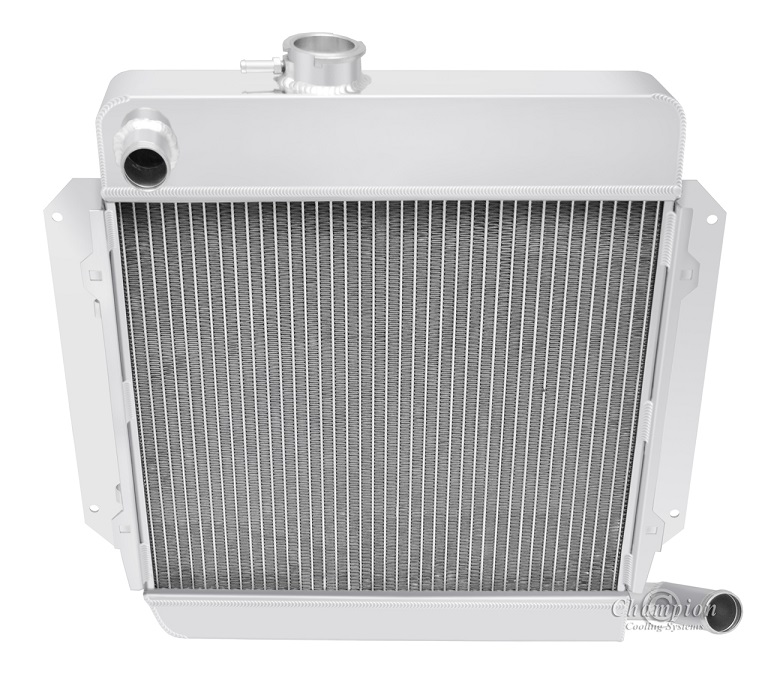

Champion All Aluminum Radiator
3-Row Core | Cools up to 450hp
High Performance Application, Fabrication Required to Mount
because of Radiator Thickness. Cannot use Mechanical Fan

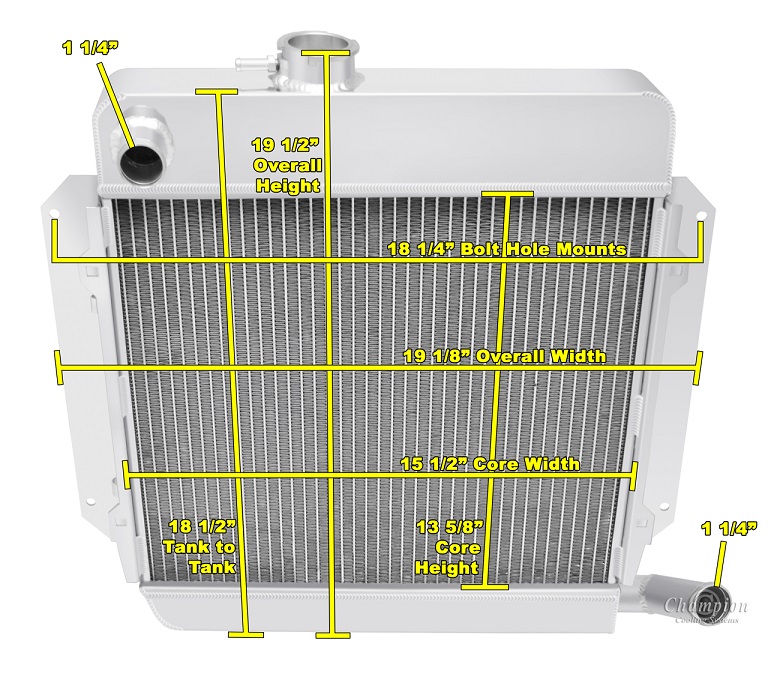

Radiator Dimensions:
Total: 19.5" tall x 19.13" wide
Core: 13.63" tall x 15.5" wide x 2" thick
Inlet: 1.25" driver side
Outlet: 1.25" passenger side
Tank: 2.75" thick
Tubes: 0.63" thick

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler NOT Included

When using electric fans:
One 12" Electric fans recommended for this core size (sold separately)


Compatible With
1969 - 1976 BMW 2002 (2.0L/121ci L4)
1969 - 1974 BMW 2002tii (2.0L/121ci L4)
EC6974

EC6974

EC6974
Click to enlarge image(s)

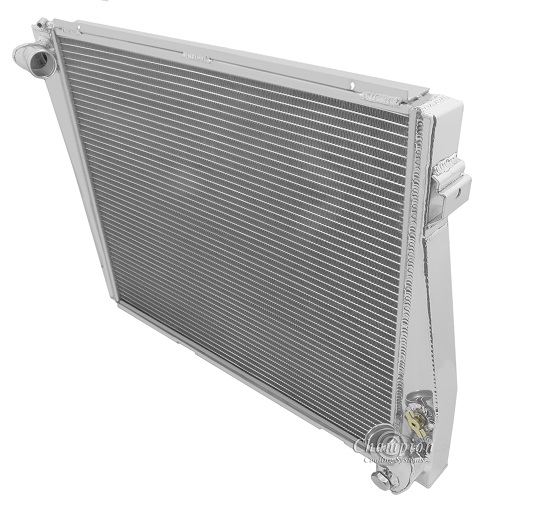

Champion All Aluminum Radiator
2-Row Core | Cools up to 450hp

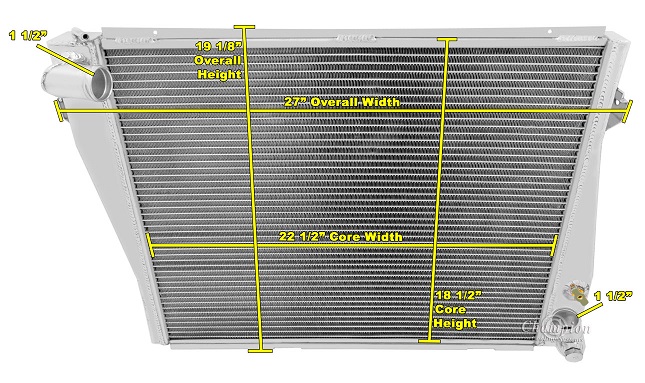

Radiator Dimensions:
Total: 19.13" tall x 27" wide
Core: 13.63" tall x 22.5" wide x 1.75" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tank: 1.75" thick
Tubes: 0.75" thick

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler NOT Included

When using electric fans:
Two 12" Electric fans recommended for this core size (sold separately)


Compatible With
1969 - 1974 BMW 4 cyl
