Starfire radiator (61-62)

EC2284

EC2284

EC2284
Click to enlarge image(s)

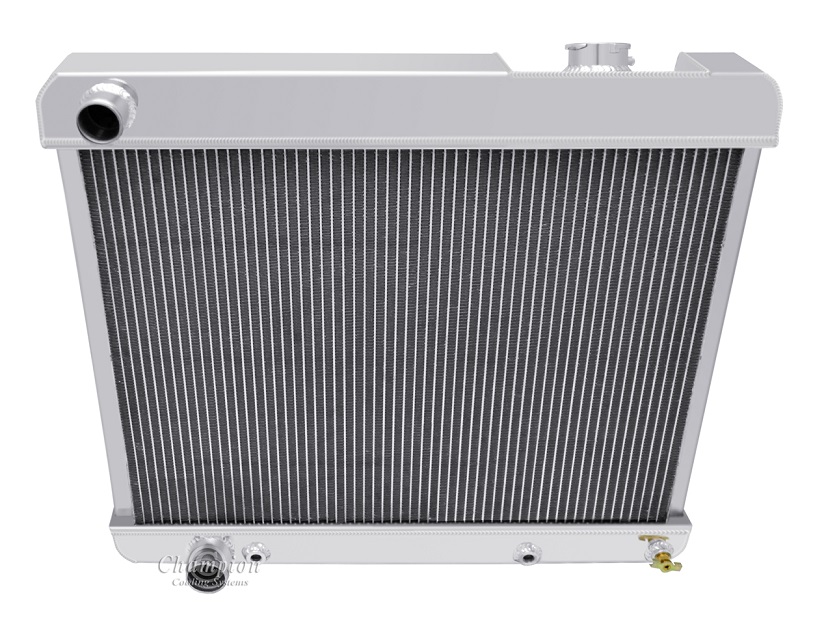

Champion All Aluminum Radiator
2-Row Core | Cools up to 400hp

Radiator Dimensions:
Total: 22.5" tall (23.5" with cap) x 25.25" wide
Core: 17.38" tall x 22.75" wide x 1.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" driver Side
Tanks: 2.75" thick, 2.38" thick (bottom)
Tubes: 0.75" thick

Saddle Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
Aluminum Shroud available for 16" fan (sold separately)

When using electric Fans:
One 16" Electric fan two 12" Electric fans recommended for this core size (sold separately)


Compatible With
Oldsmobile Starfire 1961-1962
Oldsmobile "88" 1961-1962
Cadillac 1960-1965
CC2284

CC2284

CC2284
Click to enlarge image(s)

Champion All Aluminum Radiator
3-Row Core | Cools up to 600hp

Radiator Dimensions:
Total: 22.5" tall (23.5" with cap) x 25.25" wide
Core: 17.38" tall x 22.75" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.75" driver side
Tanks: (top) 2.75" thick, (bottom) 2.38" thick
Tubes: 0.63" thick

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
Aluminum Shroud available for 16" fan (sold separately)

When using electric fans:
One 16" fan or two 12" Electric fans recommended for this core size (sold separately)



Compatible With
Oldsmobile Starfire 1961-1962
Oldsmobile "88" 1961-1962
Cadillac 1960-1965
