American Eagle Radiator
2-Row Core 1" Thick tubes | Cools up to 600hp

Radiator Dimensions:
Total: 26.25" tall (with cap) x 26.75" wide (with brackets)
Core: 20" tall x 23" wide x 2.25" thick
Inlet: 1.5"
Outlet: 1.75"
Tanks: 2.75" thick
Tubes: 1" thick

Bracket Mounted

Transmission Cooler Included (1/8-27 NPT)
Radiator Cap Included

Bracket Specs: Vert - 18.5" Hor - 24.88"

When using electric fans:
One 16" Electric fans recommended for this core size (sold separately)
Aluminum Shroud is also Available (sold separately)

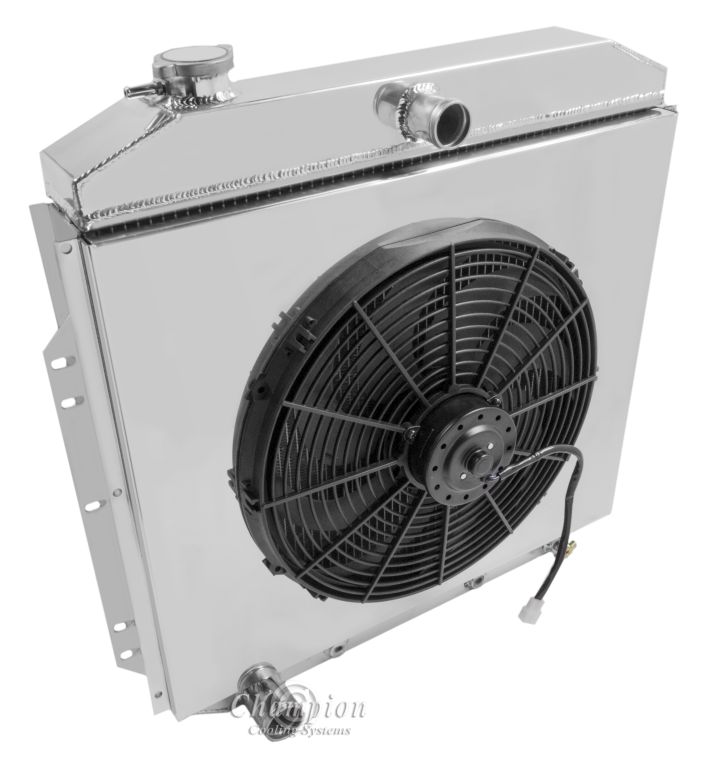

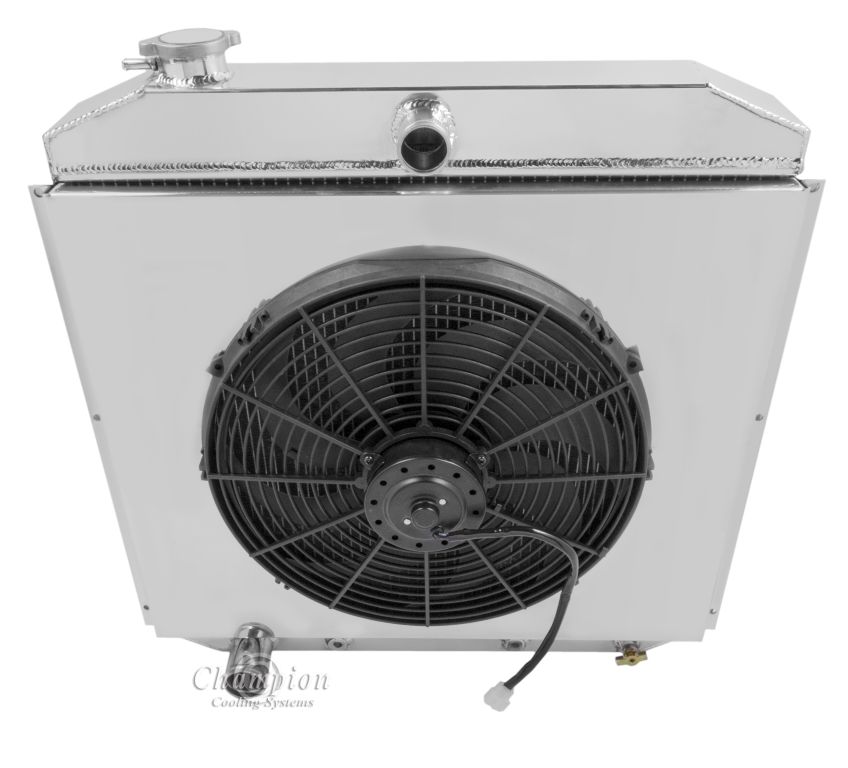

American Eagle Radiator
Plus Ledfoot Racing aluminum shroud and 16" Fan
Verify clearance for electric fan
Total thickness: 6.25" to fan motor
2-Row Core; 1" Thick tubes | 600hp Rating
($20 Discount)

Radiator Dimensions:
Total: 26.25" tall (with cap)  x 26.75" wide (with brackets)
Core: 20" Tall x 23" Wide x 2.25" Thick
Inlet: 1.5"
Outlet: 1.75"
Tanks: 2.75” Thick
Tubes: 1" thick

Bracket Mounted

Transmission Cooler Included (1/8-27 NPT)
Radiator Cap Included

Bracket Specs: Vert - 18.5" Hor - 24.88"
