ChampionRadiators.com is owned and operated by Ledfoot Racing, an authorized distributor for Champion Cooling Systems and American Eagle Radiators.

Ford Truck (61-64)

EC6164-6164FS12SP

EC6164-6164FS12SP

EC6164-6164FS12SP
Click to enlarge image(s)

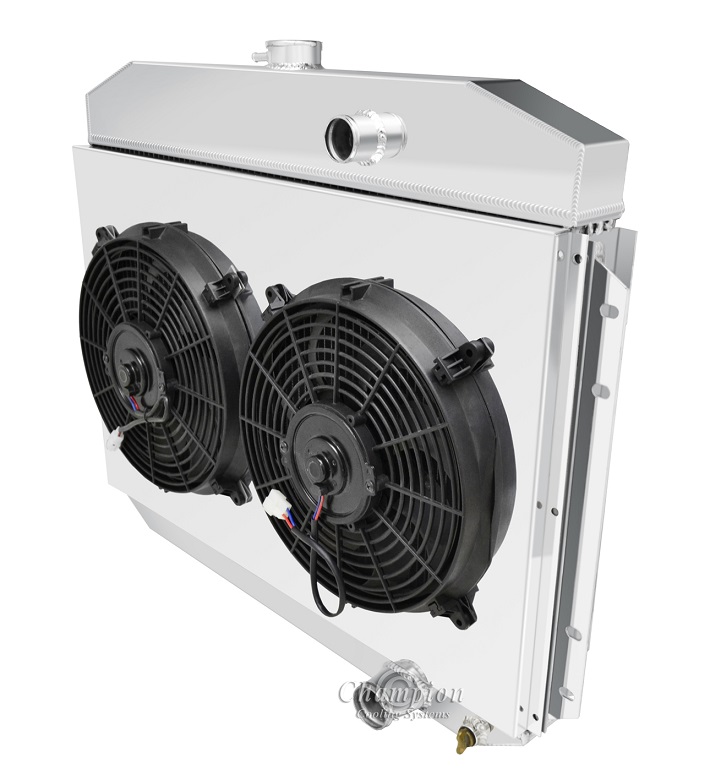

Champion All Aluminum Radiator Plus
Shroud and Two SPAL-1522 12" Cooling fans
(Fans are slightly larger than shown in photo)

For 6cyl, will cool a V8 (Check your hose positions)
2-Row Core | Cools up to 450hp

Radiator Dimensions:
Total: 24.5" tall (with cap) x 30.25" (including brackets)
Core: 17.75" tall x 26.63" wide x 1.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.5” thick
Tubes: 0.75" thick

Bracket Mounted
This is an 'E' Bracket, if you need an engine
facing bracket please call for modifications.


13lb. Radiator Cap included
Transmission Cooler NOT Included


Compatible With
Ford F-Series Truck 1961-1964 (6 cylinder)
CC6164-6164FS12SP

CC6164-6164FS12SP

CC6164-6164FS12SP
Click to enlarge image(s)
Champion All Aluminum Radiator Plus
Shroud and Two SPAL-1522 12" Cooling fans
(Fans are slightly larger than shown in photo)

For 6cyl, will cool a V8 (Check your hose positions)
3-Row Core | Cools up to 700hp

Radiator Dimensions:
Total: 24.5" tall (with cap) x 30.25" (including brackets)
Core: 17.75" tall x 26.63" wide x 2" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.5” thick
Tubes: 0.63" thick

Bracket Mounted
This is an 'E' Bracket, if you need an engine
facing bracket please call for modifications.


13 lb. Radiator Cap included
Transmission Cooler NOT Included


Compatible With
Ford F-Series Truck 1961-1964 (6 cylinder)
MC6164-6164FS12SP

MC6164-6164FS12SP

MC6164-6164FS12SP
Click to enlarge image(s)
Champion All Aluminum Radiator Plus
Shroud and Two SPAL-1522 12" Cooling fans
(Fans are slightly larger than shown in photo)

For 6cyl, will cool a V8 (Check your hose positions)
4-Row Core | Cools up to 800hp

Radiator Dimensions:
Total: 24.5" tall (with cap) x 30.25" (including brackets)
Core: 17.75" tall x 26.63" wide x 2.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.5” thick
Tubes: 0.63" thick

Bracket Mounted
This is an 'E' Bracket, if you need an engine
facing bracket please call for modifications.


13 lb. Radiator Cap Included
Transmission NOT included


Compatible With
Ford F-Series Truck 1961-1964 (6 cylinder)
