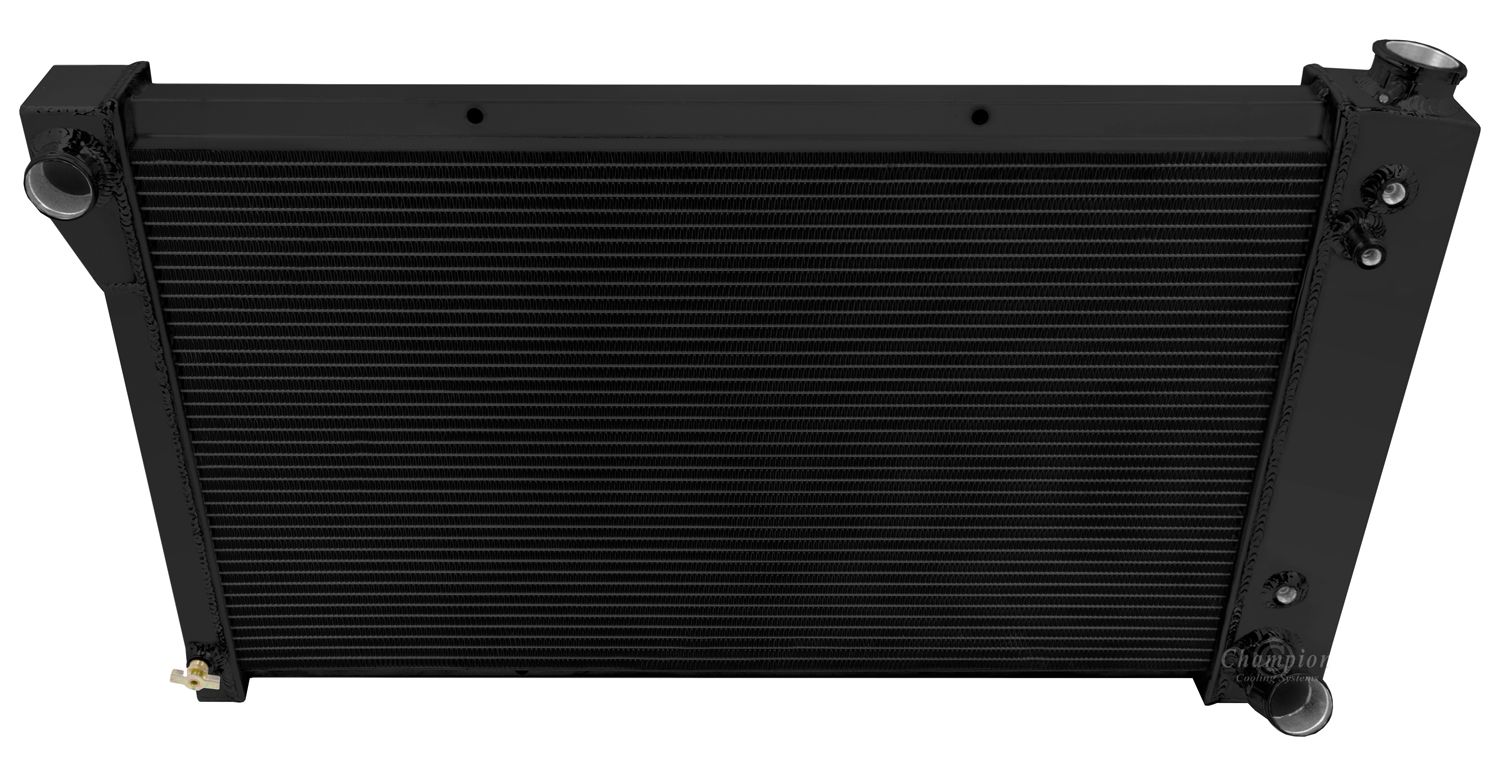

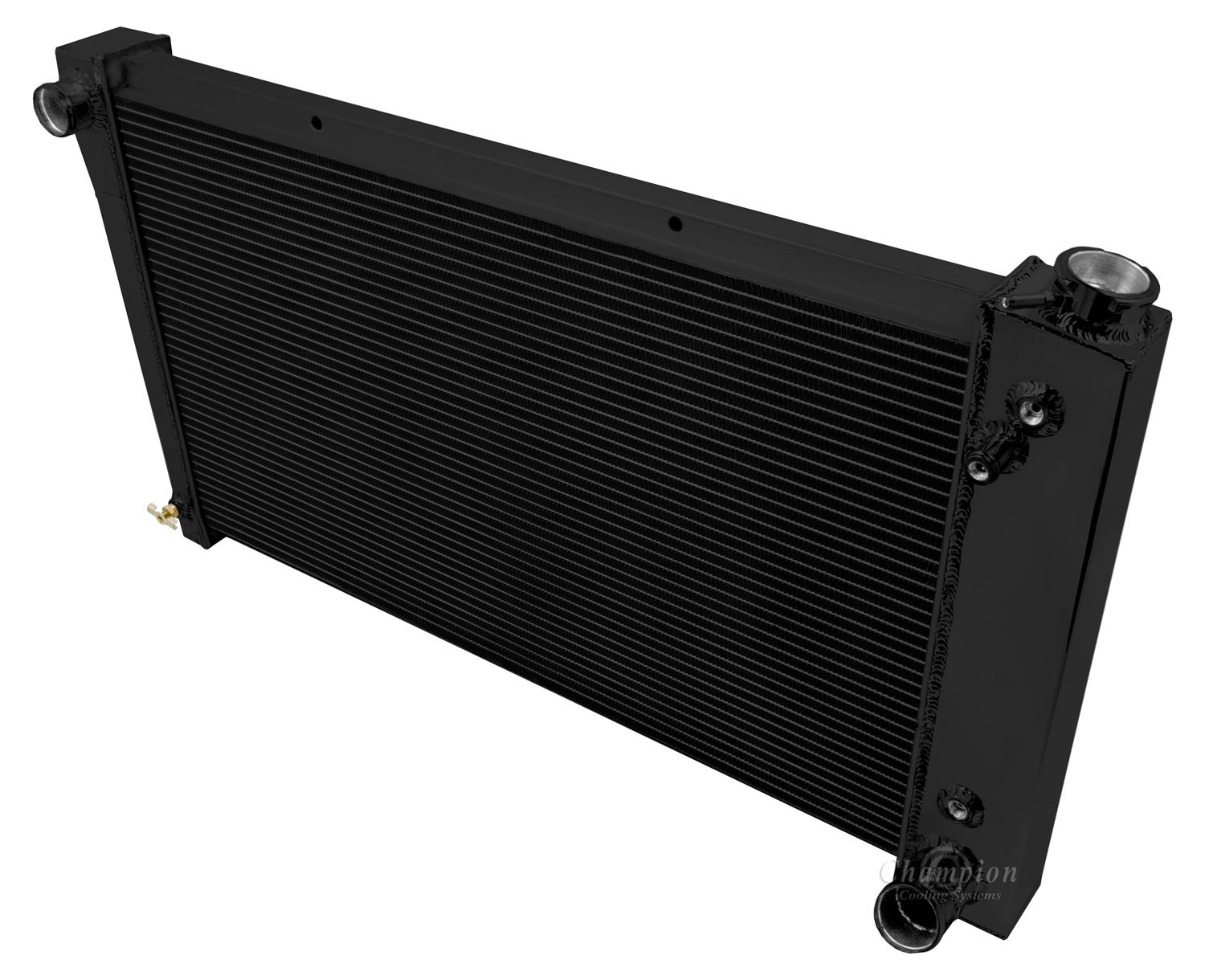

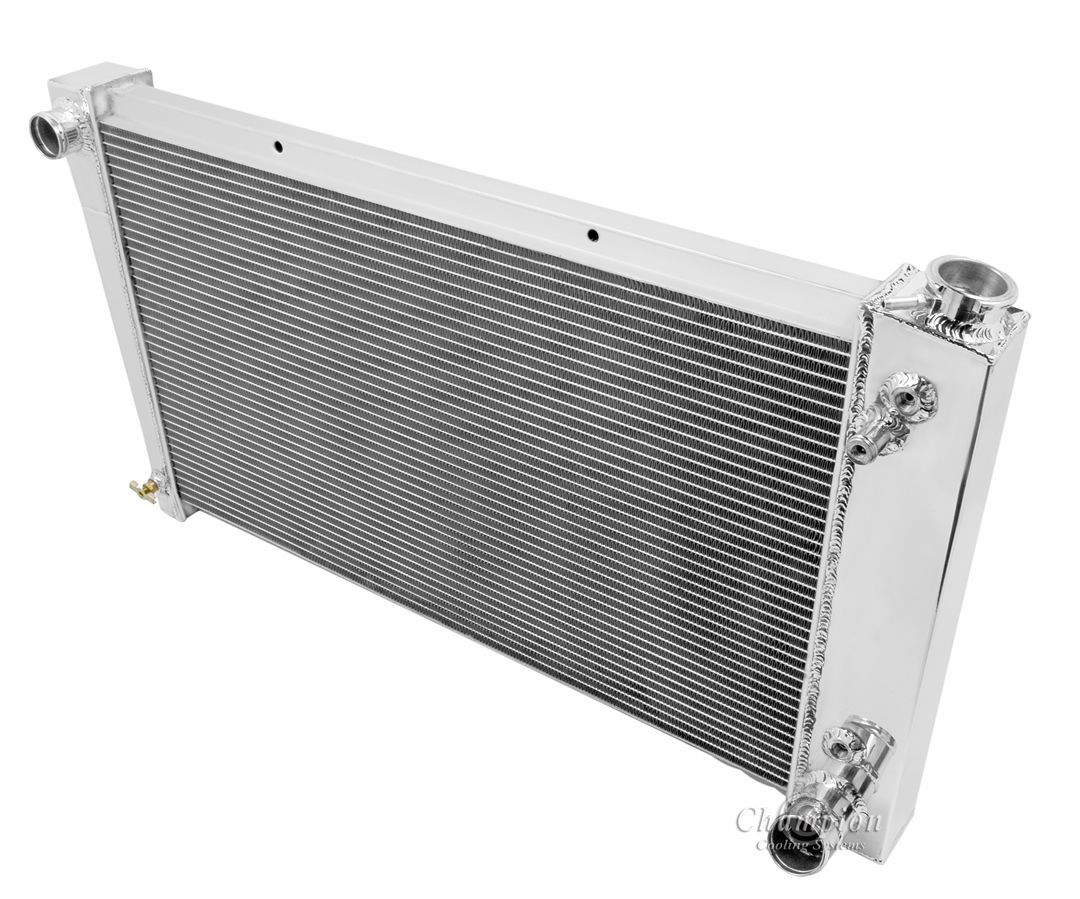

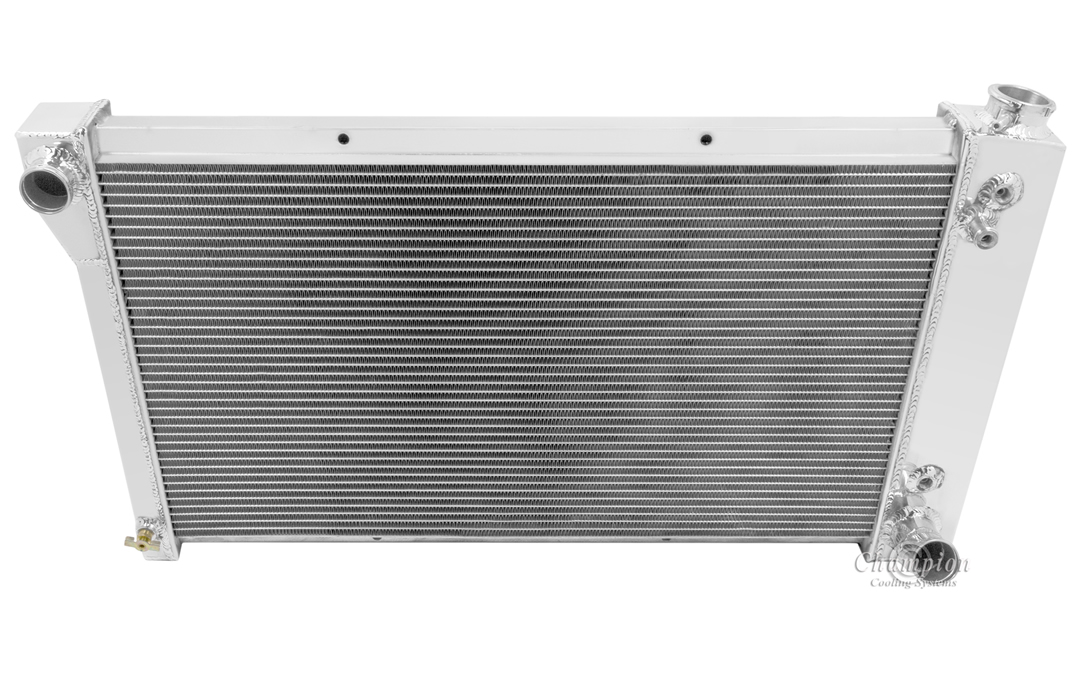

Chevy Suburban Champion radiators (73-91) Gas Engines Only

note: Confirm your core height (17" tall or 19" tall)
CC369

CC369

CC369
Click to enlarge image(s)

All Aluminum Champion Radiator
3-Row Core | Cools up to 800hp

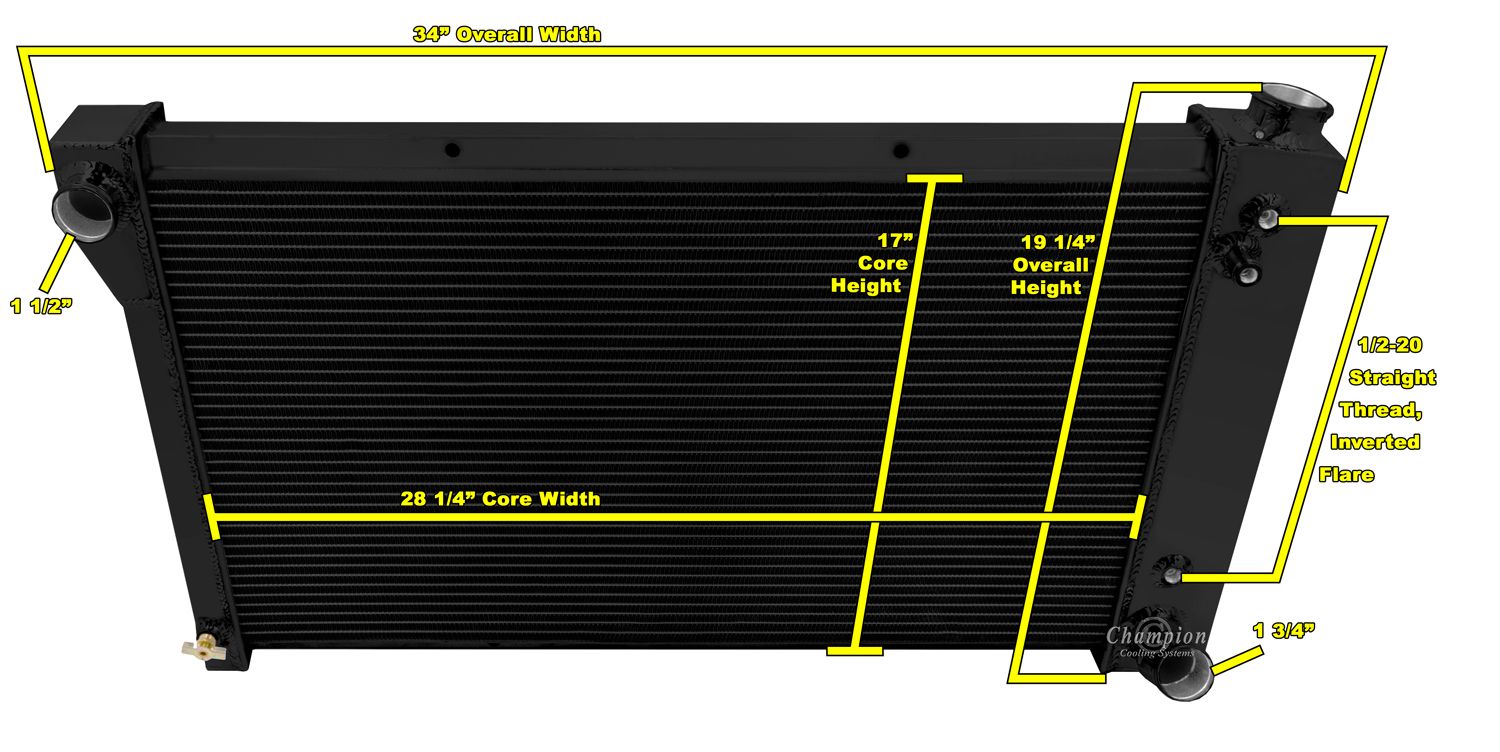

Radiator Dimensions:
Total: 19.25" tall x 33.88" wide
Core: 16." tall x 28.25" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 0.63" thick

Saddle Mounted

Radiator Cap Included
Transmission Cooler included (1/2" 20 STRAIGHT THREAD G1/4)
Aluminum Shroud is also available (sold separately)

When using electric fans:
Two 12" or 14" Electric fans recommended for this core size (sold separately)



Comaptible With
Chevrolet Blazer/Jimmy 1967-1971 (350ci V8)
Chevrolet Blazer/Jimmy 1972 (307ci V8, 350ci V8)
Chevrolet C/K Series 1967 (307ci V8, 396ci V8)
Chevrolet C/K Series 1969 (307ci V8, 350ci V8, 396ci V8)
Chevrolet C/K Series 1970-1972 (307ci V8, 350ci V8)
Chevrolet S/T Series 1967-1971 (350ci V8)
Chevrolet S/T Series 1972 (307ci V8, 350ci V8)
Chevrolet Suburban 1967 (4.1L/4.8L straight 6-cylinder and 307ci V8)
Chevrolet Suburbam 1967-1972 (4.1L/4.8L straight 6-cylinder, 307ci V8, and 350ci V8))
EC369

EC369

EC369
Click to enlarge image(s)

All Aluminum Champion Radiator
2-Row Core | Cools up to 550 hp

EC369 Radiator Dimensions:
Total: 19.25" tall (19" with cap) x 33.88" wide
Core: 16" tall x 28.25" wide x 1.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.63" thick
Tubes: 0.75" thick

Saddle Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/2" 20 STRAIGHT THREAD G1/4)
Aluminum Shroud is also Available (sold separately)

When using Electric Fans:
Two 12" or 14" Electric fans recommended for this core size (sold separately)



Compatible With
Chevrolet Blazer/Jimmy 1967-1971 (350ci v8)
Chevrolet Blazer/Jimmy 1972 (307ci V8 and 350ci V8)
Chevrolet C/K Series 1967 (307ci V8 and 396ci V8)
Chevrolet C/K Series 1969 (307ci V8, 350ci V8, and 396ci V8)
Chevrolet C/K Series 1970-1972 (307ci V8 and 350ci V8)
Chevrolet S/T Series 1967-1971 (350ci V8)
Chevrolet S/T Series 1972 (307ci V8 and 350ci V8)
Chevrolet Suburban 1967-1972 (4.1L Straight 6-cylinder, 4.8L Straight 6-cylinder, 307ci V8, 350ci V8)
MC369

MC369

MC369
Click to enlarge image(s)

All Aluminum Champion Radiator
4-Row Core Polished Tanks | Cools up to 900 hp

Radiator Dimensions:
Total: 19.25" tall x 33.88" wide
Core: 16" tall x 28.25" core x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3.25" thick
Tubes: 0.63" thick

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
Aluminum Shroud is also Available (sold separately)


When using Electric Fans:
Two 12" or 14" Electric fans recommended for this core size (sold separately)



Compatible With
Chevrolet Blazer/Jimmy 1967-1971 (350ci V8)
Chevrolet Blazer/Jimmy 1972 (307ci V8 and 350ci V8)
Chevrolet C/K Series 1967 (307ci V8 and 396ci V8)
Chevrolet C/K Series 1969 (307ci V8, 350ci V8, and 396ci V8)
Chevrolet C/K Series 1970-1972 (307ci V8 and 350ci V8)
Chevrolet S/T Series 1967-1971 (350ci V8)
Chevrolet S/T Series 1972 (307ci V8 and 350ci V8)
Chevrolet Suburban 1967-1972 (4.1L Straight 6-cylinder, 4.8L Straight 6-cylinder, 307ci V8, and 350ci V8)
