Chevrolet Truck Champion Radiator (34-36)

The inlet and outlet are designed for a Chevy V8 Conversion
Scroll down for 4-Row version

CC3436CH

CC3436CH

CC3436CH
Click to enlarge image(s)

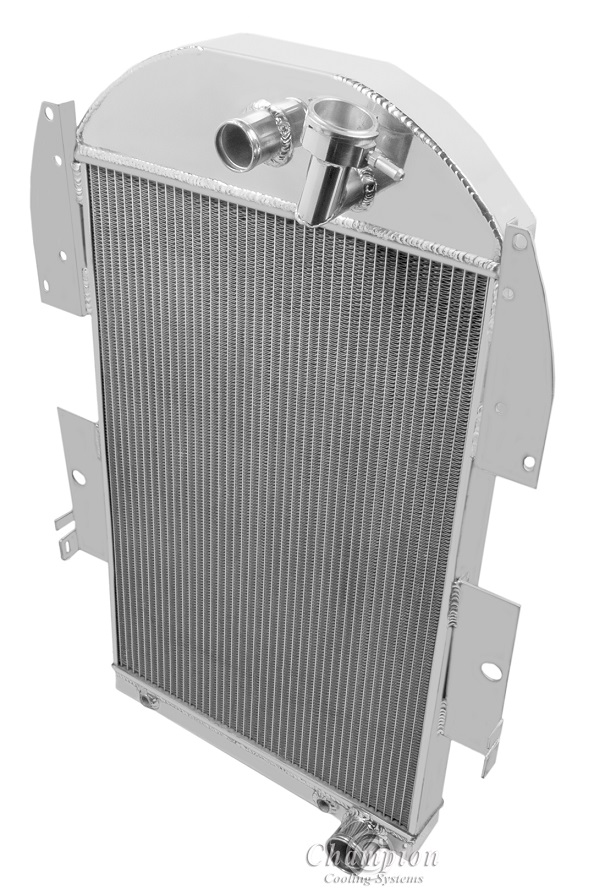

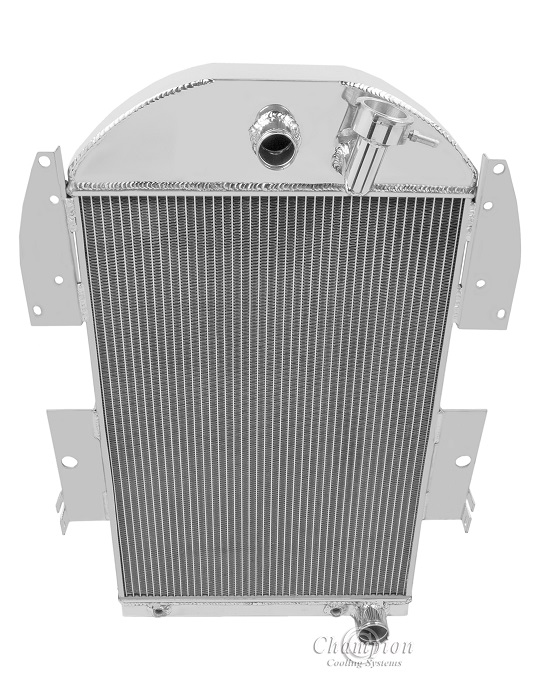

All Aluminum Champion Radiator
3-Row Core | Cools up to 650hp
This set up is for modern V8's

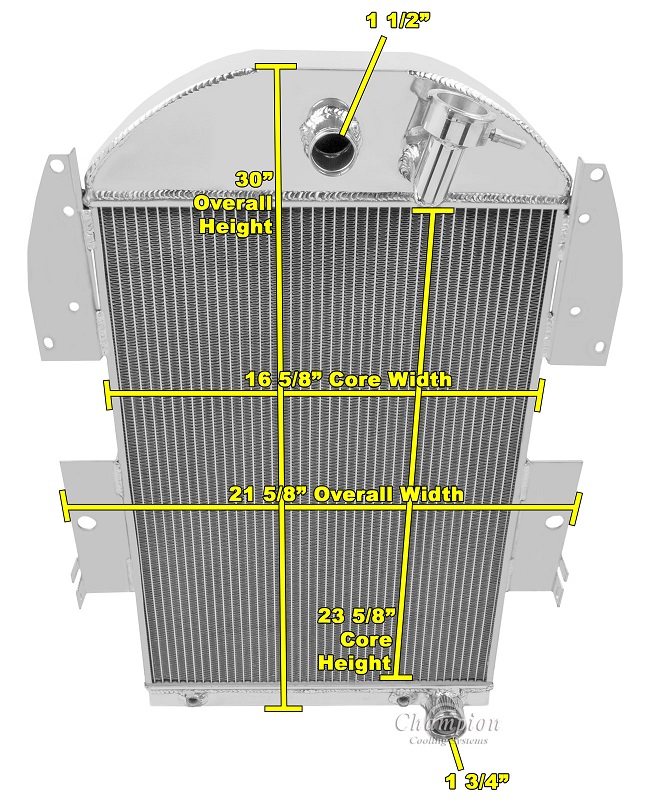

Radiator Dimensions:
Total: 21.13" wide (lower bracket) x 29.63" tall
Core: 16.38" wide x 23.63" tall x 2" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Radiator Cap Included
Transmission Cooler Included (1/2"-20 STRAIGHT THREAD, INVERTED FLARE)

When using electric fans:
One 16" fan recommended for this core size (sold separately)


Compatible With
Chevrolet P/U Truck 1934-1936 (V8 conversion)
MC3436CH

MC3436CH

MC3436CH
Click to enlarge image(s)
All Aluminum Champion Radiator
4-Row Core | Cools up to 650hp
This set up is for modern V8's

Radiator Dimensions:
Total: 21.13" wide (lower bracket) x 29.63" tall
Core: 16.38" wide x 23.63" tall x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 0.63" thick

Radiator Cap Included
Transmission Cooler Included (1/2"-20 STRAIGHT THREAD, INVERTED FLARE)

When using electric fans:
One 16" fan recommended for this core size (sold separately)


Compatible With
Chevrolet P/U Truck 1934-1936 (V8 conversion)
