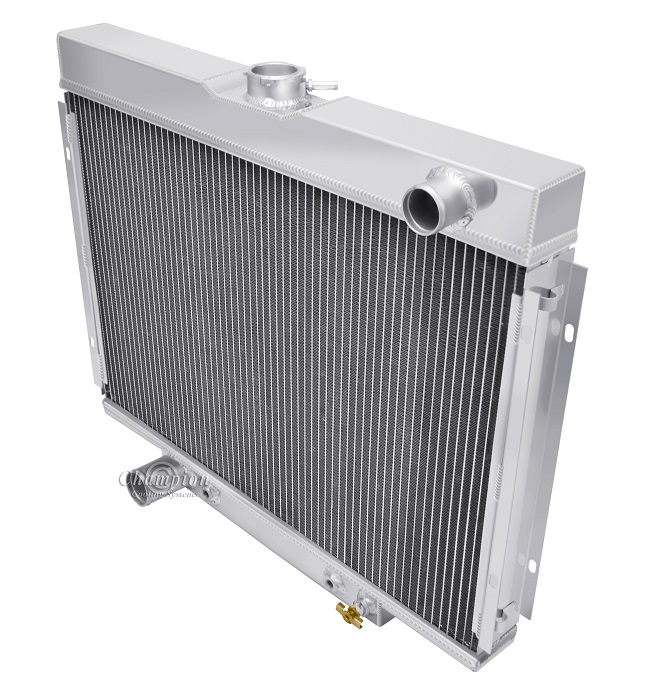

Fairlane (66-69) Big Block
This big block radiator with aluminum shroud is slightly wide and shorter than the original. Please refer to the dimensions.
This Fairlane radiator does have the shaped lower tanks for the saddle mounts.EC379-379FS11SP
 |
  |
| Click to enlarge image(s) |
Champion Aluminum Radiator Plus Ledfoot Racing
Aluminum Shroud & 2-11" SPAL-1500
(We no longer recomend the Pro-series fans for this combo)
2-Row Core | Cools 400hp

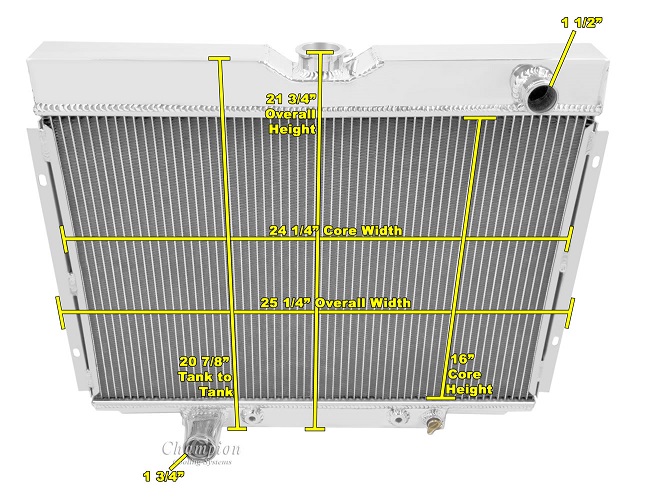

Radiator Dimensions:
Total: 20.88" tall (21.5" with cap) x 25.25" wide (with brackets) x 1.75" thick
Core: 16" tall x 24.25" wide x 1.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.5" thick
Tubes: 0.75" thick
Total Thickness: 5.5" to back of fans, 4.5" at center
Fan Thickness: 2.44"
Saddle Mounted
13lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)
CC379-379FS11SP
|
|
|
|
| Click to enlarge image(s) |
Champion Aluminum Radiator Plus Ledfoot Racing
Aluminum Shroud & 2-11" SPAL Medium Profile fans
(We no longer recomend the Pro-series fans for this combo)
3-Row Core | Cools 650hp | Usually For Big Blocks
Radiator Dimensions:
Total: 20.88" tall (21.5" with cap) x 25.75" wide (including brackets)
Core: 16.5" tall x 24.25" wide x 2" thick
Inlet: 1.5" passenger
Outlet: 1.75" driver
Tanks: 2.5" thick
Tubes: 0.63" thick
Total Thickness: 5.5" to back of fans, 4.5" at center
Fan Thickness: 2.44"
Typically Saddle mounted, Includes Bracket Mounts
13lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)
MC379-379FS11SP
|
|
|
|
| Click to enlarge image(s) |
Champion Aluminum Radiator Plus Ledfoot Racing
Aluminum Shroud & 2-11" SPAL Medium Profile fans
4-Row Core | Cools up to 700hp
Original Top Saddle Mount will not fit over these thicker tanks
MC379 Radiator Dimensions:
Total: 20.88" tall (21.5" with cap) x 25.25" wide (including brackets)
Core: 16" tall x 24.25" wide x 2.75 thick
Inlet: 1.5" passenger side
Outlet: 1.75” driver side
Tanks: 3.13" Thick
Tubes: 0.63" thick
TTotal Thickness: 6" to back of fans, 5" at center
Fan Thickness: 2.44
Saddle or Bracket Mount System
13 lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)
379FS11
 |
| Click to enlarge image(s) |
Ledfoot Racing Aluminum Fan Shroud for Two 11" SPAL Fans
Dimensions:
25 1/2" wide x 16 1/8" tall
Attributes:
All-Aluminum Fan Shroud
Cut-outs to accept two 11" SPAL or 12" Pro-series fans
Designed Exclusively for Two Electric Fans (sold separately)
Made in the U.S.A
Compatible with:
Champion EC379, CC379, MC379, and American Eagle AE379. Will also fit OEM radiator.
