Chevy Truck C/K (67-72)

Scroll down for additional options
EC369-369FS14

EC369-369FS14

EC369-369FS14
Click to enlarge image(s)

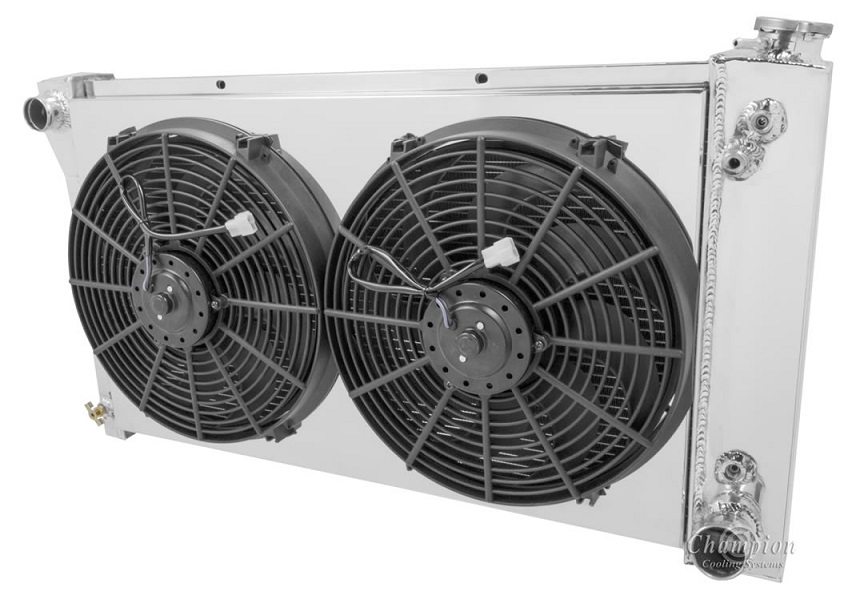

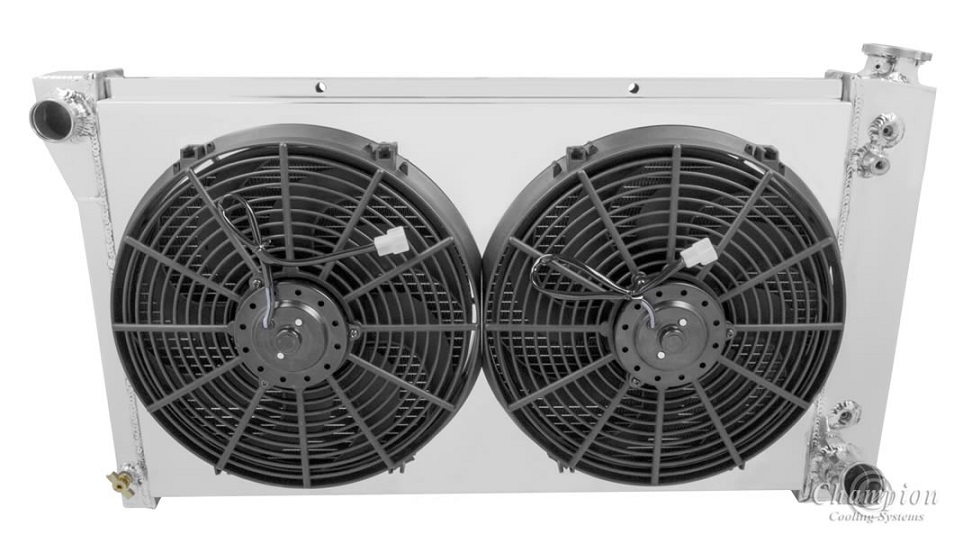

Champion All Aluminum Radiator
PLUS Ledfoot Racing Aluminum Shroud & Two 14" Fans
Verify clearance for electric fan
Total thickness: 5.5" to fan motor
2 Row Core | Cools up to 450hp

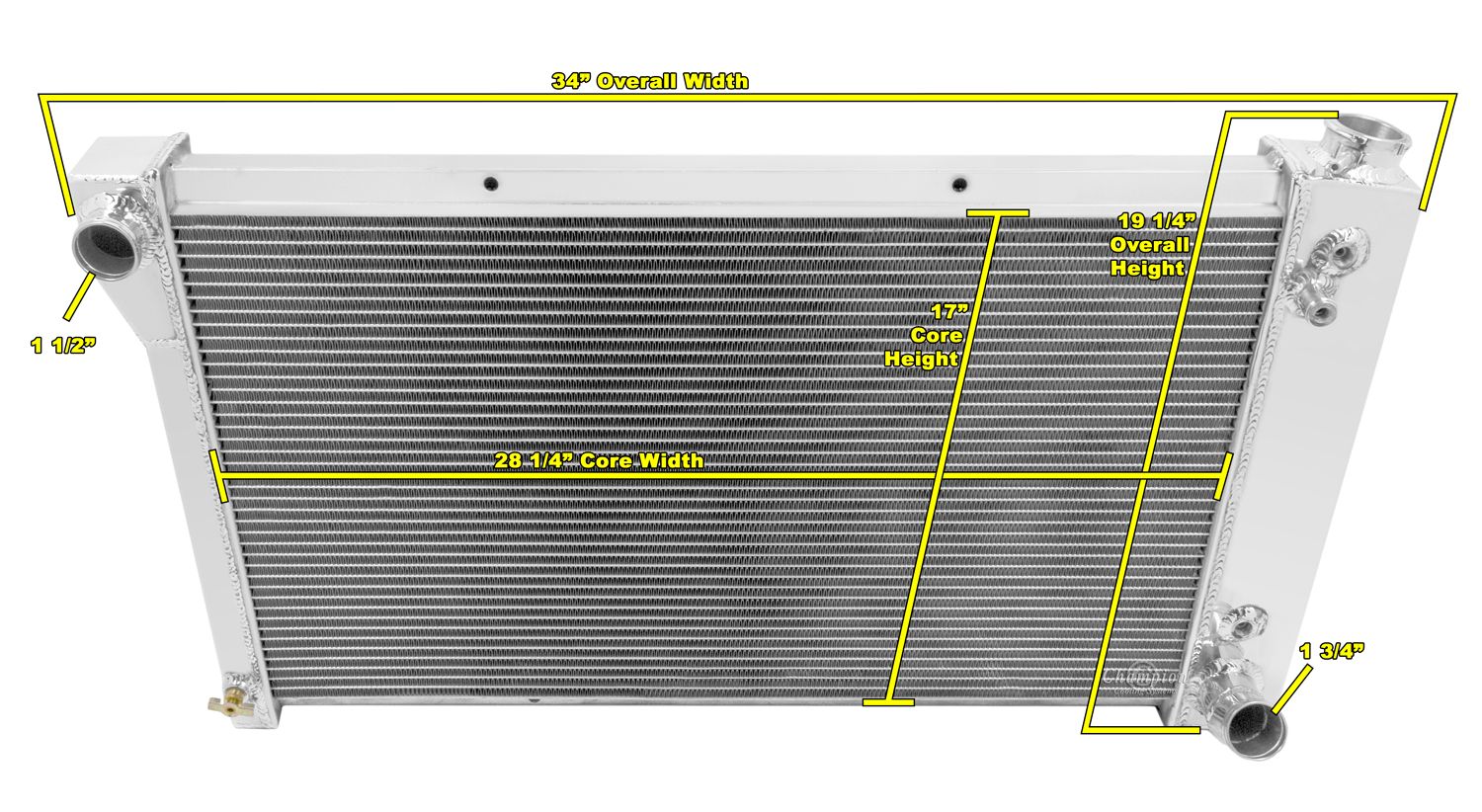

EC369 Radiator Dimensions:
Total: 19.25" tall (19" with cap) x 33.88" wide
Core: 16" tall x 28.25" wide x 1.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.63" thick
Tubes: 0.75" thick

Saddle Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/2"-20 Straight thread inverted flair)



CC369-369FS14

CC369-369FS14

CC369-369FS14
Click to enlarge image(s)
Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 2-14" Fans
Verify clearance for electric fan
Total thickness: 6" to fan motor

3 Row Core | Cools 850hp

Radiator Dimensions:
Total: 18.25" tall (19" incl cap) x 33" wide
Core: 16." tall x 28.25" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 0.63" thick

Saddle Mounted

Radiator Cap included
Transmission Cooler included (1/2"-20 Straight thread inverted flair)

Note: 4 1/2" in the center around the edge of the fans.



MC369-369FS14

MC369-369FS14

MC369-369FS14
Click to enlarge image(s)
Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 2-14" Fans
Verify clearance for electric fan
Total thickness: 6.5" to fan motor

4 Row Core: Polished Tanks
Cools 1000hp

Radiator Dimensions:
Total: 19.25" tall x 33.88" wide
Core: 16" tall x 28.25" core x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3.25" thick
Tubes: 0.63" thick

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2"-20 Straight thread inverted flair)

Note: 5" thickness in the center around the edge of the fans.


369FS14

369FS14

369FS14
Click to enlarge image(s)

Ledfoot Racing Aluminum Fan Shroud for Two 14" Electric Fans

Dimensions:
17.75" tall x 28" wide (wraps over core)

Attributes:
All-Aluminum Fan Shroud
Cut-outs to accept two 14" electric fans
Designed Exclusively for Two Electric Fans (sold separately)
Made in the U.S.A

Compatible with:
Champion EC369, CC369, and American Eagle AE369.
