20 Tall x 33" Wide Overall


Click to enlarge image(s)

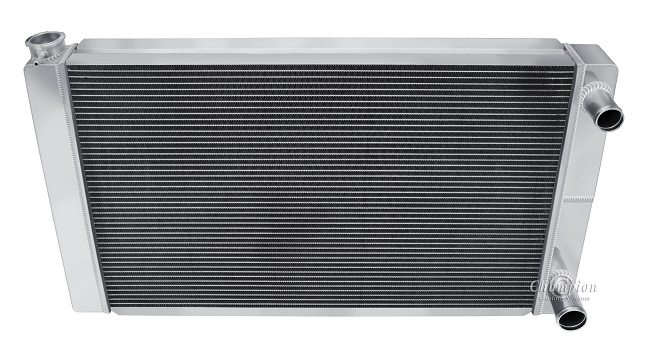

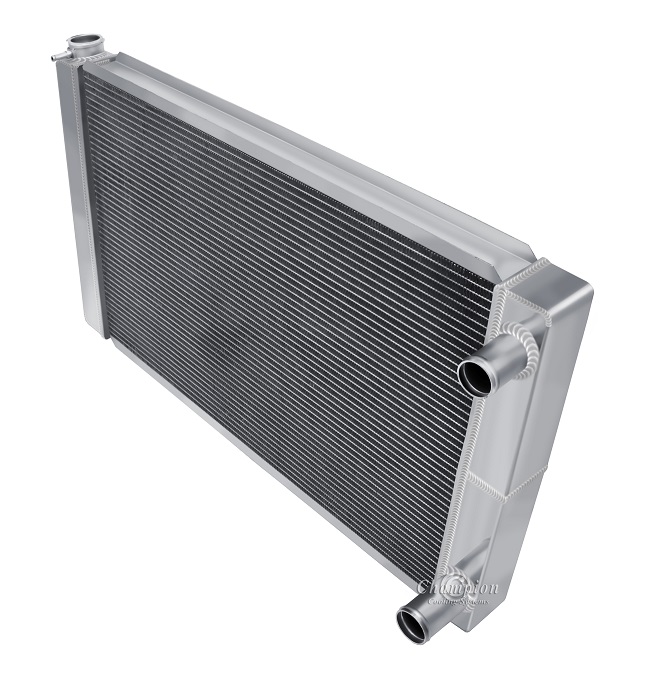

Universal Dual Pass Champion All Aluminum Radiator
3-Row Core | Cools up to 1000hp

NOTE: Typical to all Universal Radiators, ours do not include provisions for a drain petcock.

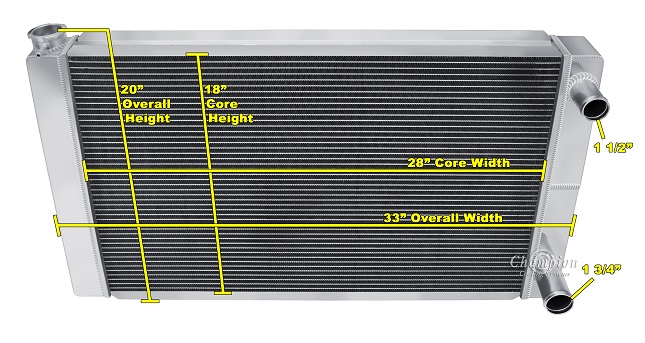

Radiator Dimensions:
Total: 20" tall  x 33" wide
Core: 18" tall x 28" wide x 2.25" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 3" thick
Tubes: 0.63" thick

Saddle Mounted

13 lb. Radiator Cap included
NO Transmission Cooler Included

When using electric fans:
Two 14" Electric fans recommended for this core size
Custom shroud for electric fan(s) available upon request:
