Cougar/XR7 (74-79)
CC390

CC390

CC390
Click to enlarge image(s)

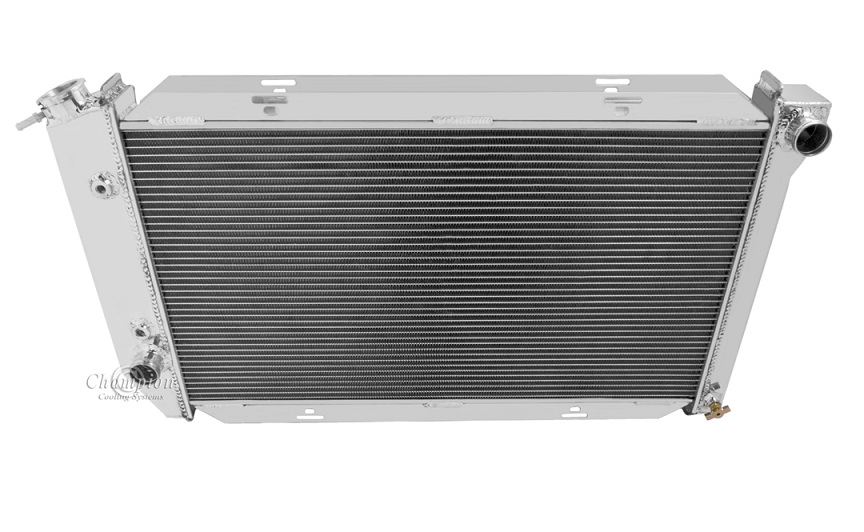

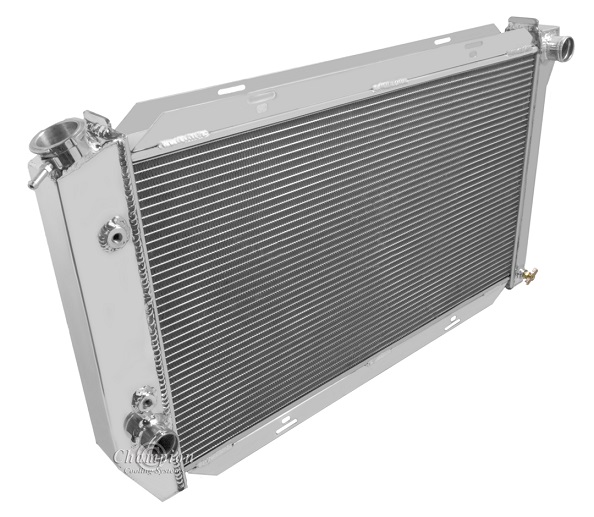

All Aluminum Champion Radiator
3-Row Core | Cools up to 650hp

Radiator Dimensions:
Total: 19.5" tall (with cap) x 34" wide
Core: 16.5" tall x 28" wide x 2" thick
Inlet: 1.5" passenger side
Outlet: 1.5" driver side
Tanks: 3" thick
Tubes: 0.63" thick

Saddle Mounted

13lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)

When using electric fans:
One 16" or two 14" Electric fans recommended for this core size (sold separetely)



Compatible With
Ford Torino 1972-1976 (5.0L/302ci 7.0L/429ci V8)
Ford Country squire 1972-1976 (7.5L/460ci V8)
Ford Thunderbird 1972-1979 (5.0L/302ci, 5.8L/351ci, 6.6L/400ci, 7.0L/429ci, 7.5L/460ci V8)
Lincoln Mark V 1977 (7.5L/460ci V8)
Mercury Cougar/XR7 1974-1979 (5.0L/302ci 7.0L/429ci V8)
Ford LTD II 1977-1979 (5.0L/302ci, 5.8L/351ci, 6.6L/400ci V8)
Mercury Montego 1972-1976 (5.0L/302ci 7.0L/429ci V8)
Ford Ranchero 1974-1979 (5.0L/302ci 7.5L/465ci V8)
Lincoln mark IV 1972-1976 (7.5L/460 V8)
Lincoln Continental 1973 (7.5L/460 V8)
