F-Series Truck radiator (72-79) Small 18" x 23.5" core
EC395

EC395

EC395
Click to enlarge image(s)

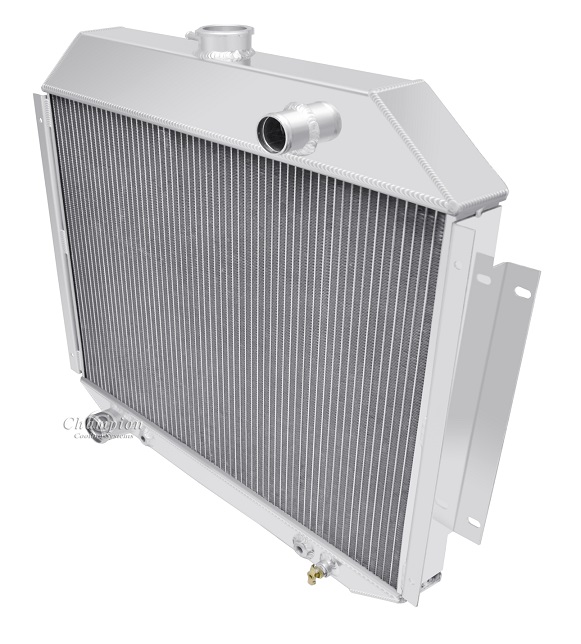

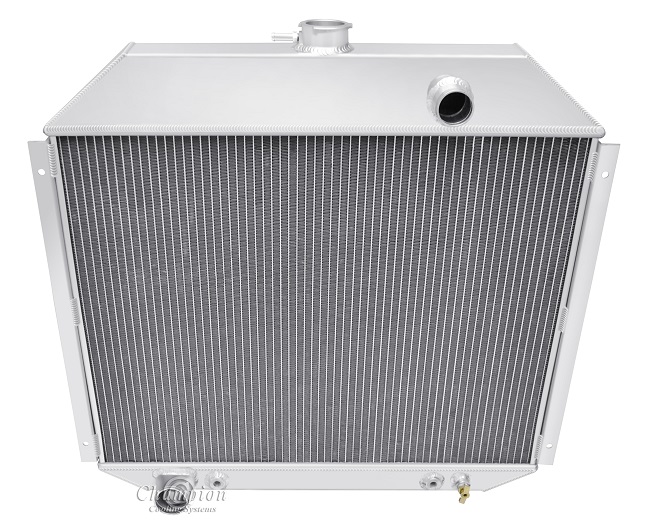

Champion All Aluminum Radiator
2-Row Core | Cools up to 500hp
Note: This is the 18" tall core confirm core size before ordering

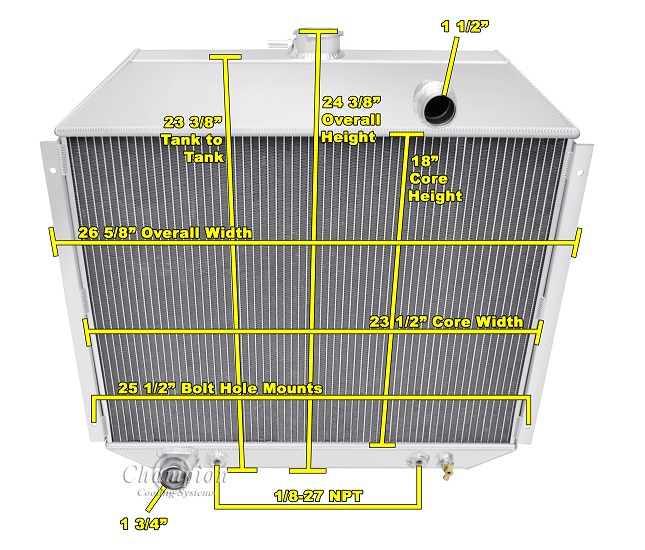

Radiator Dimensions:
Total: 24.5" tall (25.5" with cap) x 26.63" wide (with brackets)
Core: 18" tall x 23.5" wide x 1.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.38" thick
Tubes: 0.63" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)

When using electric fans:
Two 11" SPAL Electric fans recommended for this core size (sold separetely)


Compatible With
1972 - 1975 Ford F-100 (5.0L 302ci V8, 5.9L 360ci V8)
1976 Ford F-100 (5.0L 302ci V8)
1977 - 1979 Ford F-100 (5.0L 302ci V8, 5.8L 351ci V8)
1975 - 1976 Ford F-150 (5.0L 302ci V8, 5.9L 360ci V8)
1977 - 1979 Ford F-150 (5.0L 302ci V8, 5.8L 351ci V8)
1972 - 1976 Ford F-250 (5.0L 302ci V8, 5.9L 360ci V8 )
1977 - 1979 Ford F-250 (5.0L 302ci V8, 5.8L 351ci V8 )
CC395

CC395

CC395
Click to enlarge image(s)
Champion All Aluminum Radiator
3-Row Core | Cools up to 700hp
Note: This is the 18" tall core confirm core size before ordering


Radiator Dimensions:
Total: 24.5" tall (25.5" with cap) x 26.63" wide (with brackets)
Core: 18" tall x 23.5" wide x 2.5" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)

When using electric fans:
Two 11" SPAL Electric fans recommended for this core size (sold separetely)


Compatible With
1972 - 1975 Ford F-100 (5.0L 302ci V8, 5.9L 360ci V8)
1976 Ford F-100 (5.0L 302ci V8)
1977 - 1979 Ford F-100 (5.0L 302ci V8, 5.8L 351ci V8)
1975 - 1976 Ford F-150 (5.0L 302ci V8, 5.9L 360ci V8)
1977 - 1979 Ford F-150 (5.0L 302ci V8, 5.8L 351ci V8)
1972 - 1976 Ford F-250 (5.0L 302ci V8, 5.9L 360ci V8 )
1977 - 1979 Ford F-250 (5.0L 302ci V8, 5.8L 351ci V8 )
