Hangers on grill side must be bent down to bolt into place, May need minor trim on fanshroud for lower outlet.
CC2321

CC2321

CC2321
Click to enlarge image(s)
Champion All Aluminum Radiator
3-Row Core | Cools up to 600hp

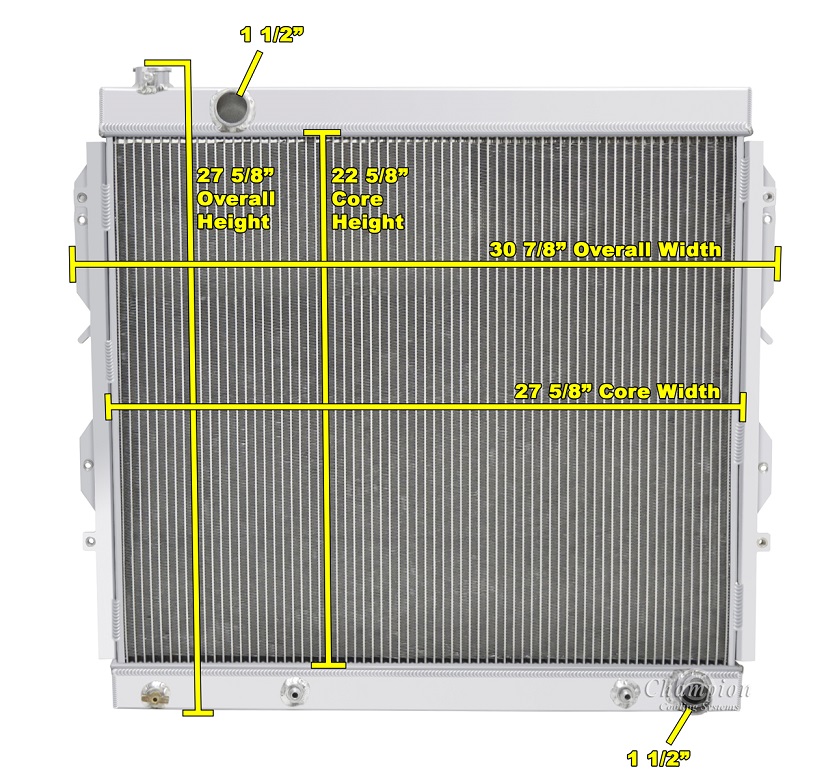

Radiator Dimensions:
Total: 27.5" tall (with cap)x 30.83" wide (with brackets) x 2.25" thick
Core: 22.63" tall x 27.63" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator cap included
Transmission Cooler included (M14 x 1)


Compatible With
00 - 06 Toyota Tundra 4.7L/285ci V8
