Ford Model T / T Bucket (24-27) (Ford engine)


Click to enlarge image(s)

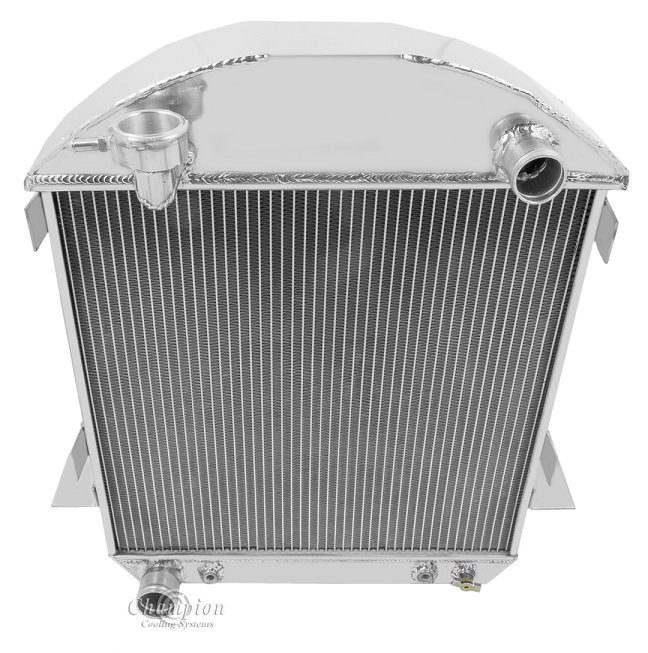

American Eagle Aluminum  Radiator
Check Dimensions for 1923 Models
2 Row Core: 1" thick tubes | Cools up to 700hp

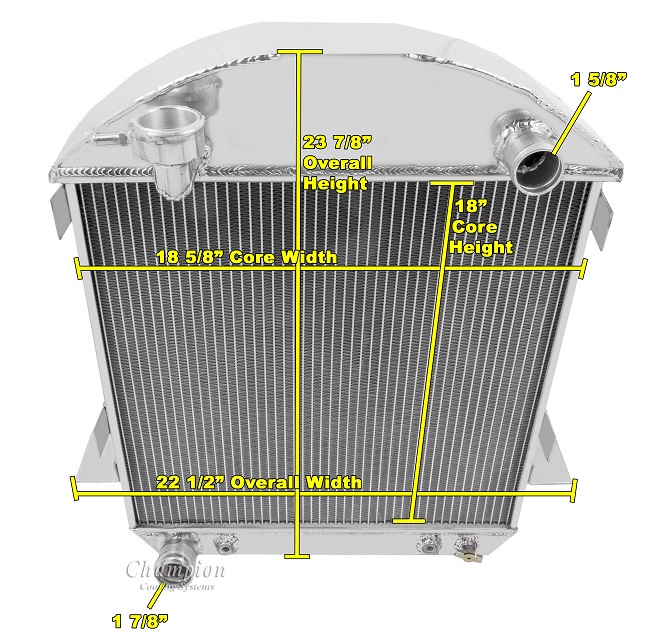

Radiator Dimensions:
Total: 24" tall x 22.5" wide (with bottom brackets)
Core: 18" tall x 18.5" wide x 2.25" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 4.5" thick (top) / 3" thick (bottom)
Tubes: 1" thick

Ford / Mopar Inlet and outlet set up

13 lb. Radiator Cap included
Transmission Cooler included (1/8" 27NPT)

When using electric fans:
One 16" electric fan recommended for this core size (sold separately)

Custom shroud for electric fan(s) available upon request:

Compatible With
Model T with Ford Configuration 1917-1927
