GMC Truck radiator (47-54)
CC4754

CC4754

CC4754
Click to enlarge image(s)

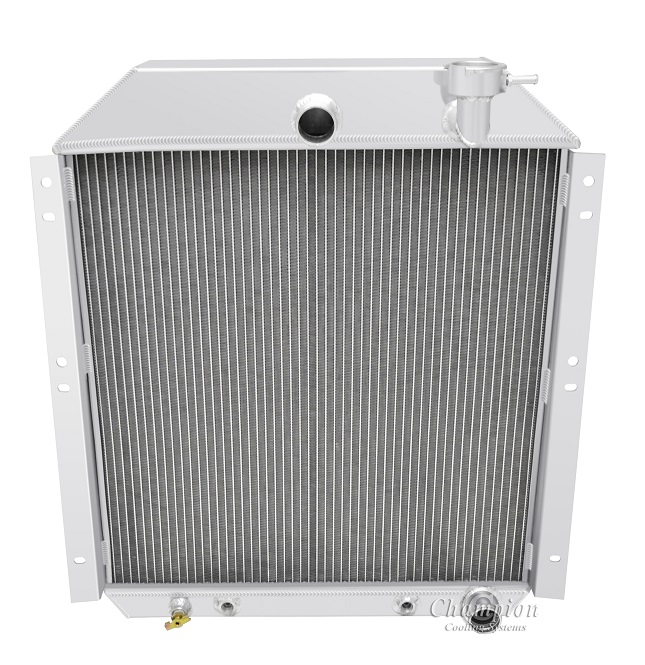

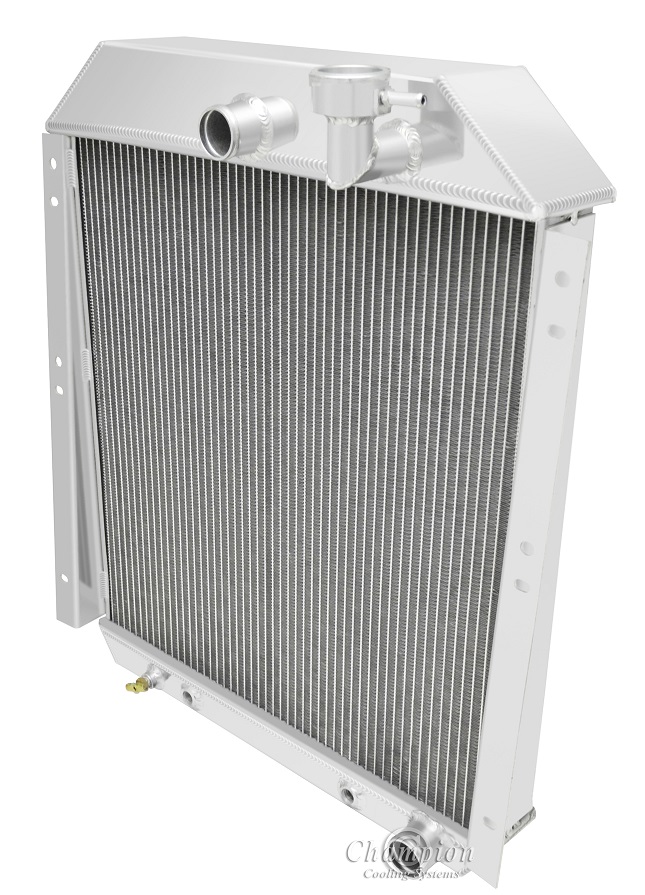

Champion All Aluminum Radiator
3-Row Core | Cools up to 700hp

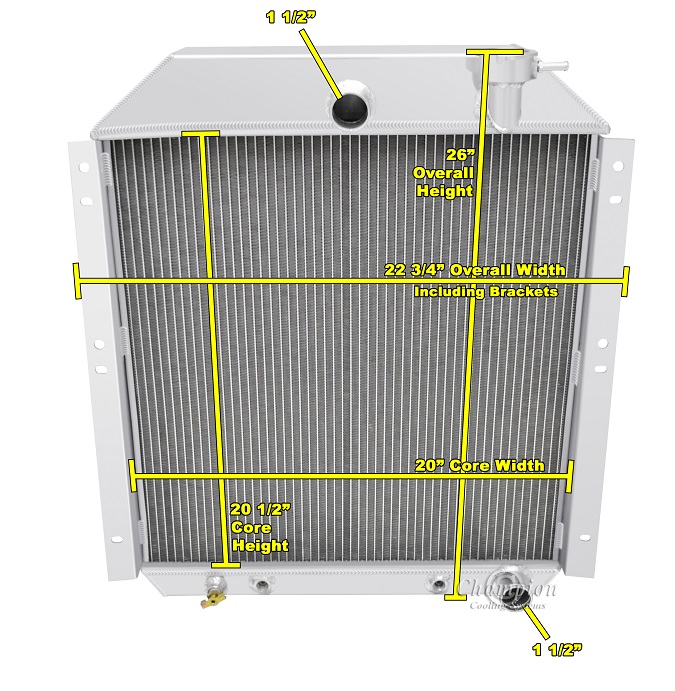

Radiator Dimensions:
Total:
26" tall x 22.75" wide (including brackets)
Core: 20.5" tall x 20" wide x 2" thick
Inlet 1.5" center
Outlet: 1.5" passenger side
Upper Tank: 4" thick
Lower Tank: 2.75" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2" -20 straight thread, inverted flare)

When using electric fans:
One 16" Electric fan recommended for this core size


MC4754

MC4754

MC4754
Click to enlarge image(s)
Champion All Aluminum Radiator
4-Row Core | Cools up to 800hp

Radiator Dimensions:
Total:
26" tall x 23.75" wide (including brackets)
Core: 20.5" tall x 20" wide x 2.75" thick
Inlet 1.5" center
Outlet: 1.5" passenger side
Upper Tank: 4" thick
Lower Tank: 2.75" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2" -20 straight thread, inverted flare)

When using electric fans:
One 16" Electric fan recommended for this core size
