Ford Bronco Radiator 1966-1977

Scroll down for additional options

For the 2 Row Radiator you need the 4 Row mounts due to the thickness of the radiator

AE521

AE521

AE521
Click to enlarge image(s)

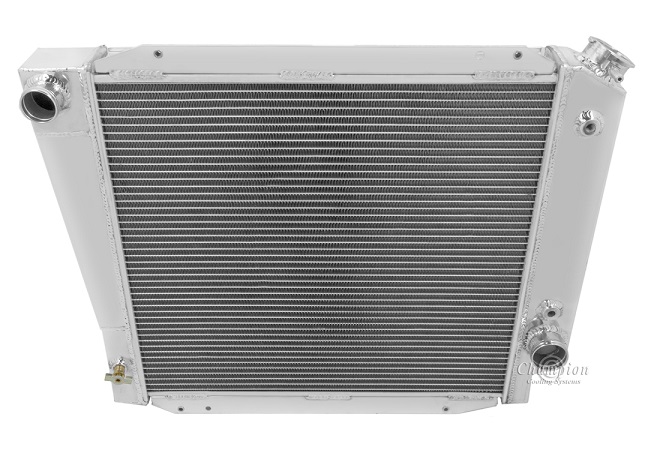

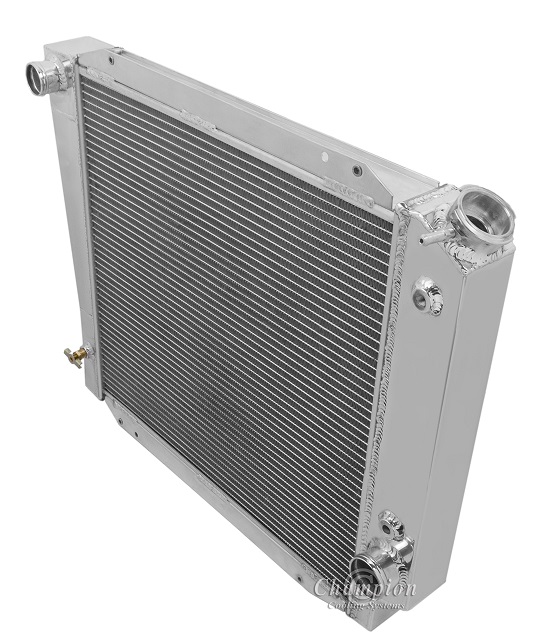

American Eagle All Aluminum Radiator
2-Row Core 1" Thick tubes | Cools up to 500hp

Total: 21" tall x 25" wide
Core: 19" tall x 19" wide x 2.25" thick
Inlet: 1.5" driver side / outlet 1.75” pass side
Tanks: 2.5" thick
Tubes: 1" thick

Saddle Mounted

Transmission Cooler included (1/8-27NPT)
Radiator Cap Included
Aluminum Shroud available (sold separately)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)



Compatible With
Ford Bronco 1966-1977 (302ci V8)
AE521-521FS16SP

AE521-521FS16SP

AE521-521FS16SP
Click to enlarge image(s)

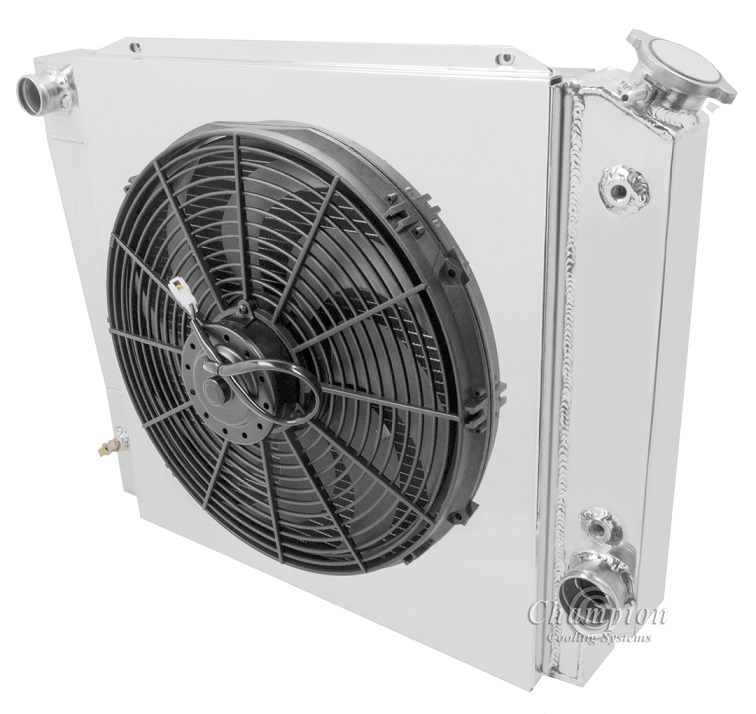

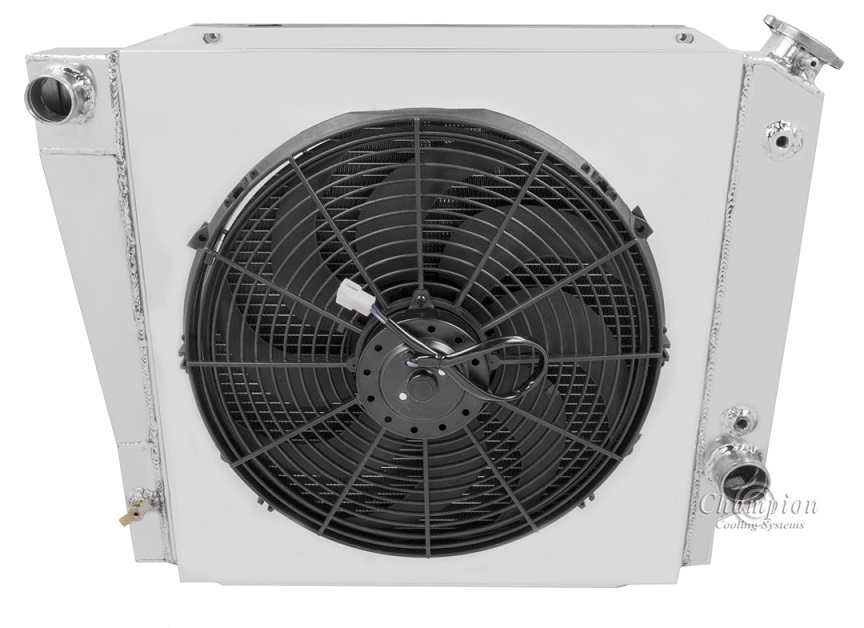

American Eagle All Aluminum Radiator Plus
Ledfoot Racing Shroud and 16" SPAL 1516 Fan

The SPAL fan solves the thickness issues of the Pro Series fan
Please confirm your available room to the Total Thickness below

2-Row Core, 1" thick tubes | Cools 500hp
($20 Discount)

Radiator Dimensions:
Total: 21" tall x 25" wide
Core: 19" tall x 19" wide x 2.25" thick
Inlet: 1.5” driver side / Outlet: 1.75” pass side
Tanks: 2.5" thick
Tubes: 1" thick

Total Thickness: 5.25" to back of fan

Saddle Mounted

Transmission Cooler included (1/8-27NPT)
Radiator Cap Included

4-Row Mounts needed for this thicker Radiator



Compatible With
Ford Bronco 1966-1977 (302ci V8)
