Datsun 280z Champion Radiator (75-78)

EC634-634FS11SP

EC634-634FS11SP

EC634-634FS11SP
Click to enlarge image(s)
All Aluminum Champion Radiator Plus
Ledfoot Racing Shroud and two 11" SPAL-1500 electric fans

2-Row Core | Cools up to 400hp

Radiator Dimensions:
Total: 22.63" (with cap) x 27.5" (including brackets)
Core: 16" tall x 24.25" wide x 1.58" thick
Inlet: 1.38" drivers side
Outlet: 1.38" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick
Total Thickness to back of fans: 5.38" Thick
(About 4.5" thick between the fans)

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (Metric 12-1.25)


Compatible With
Nissan/Datsun 280Z 1975-1978 (2.8L Straight 6-cylinder)
CC634-634FS11SP

CC634-634FS11SP

CC634-634FS11SP
Click to enlarge image(s)

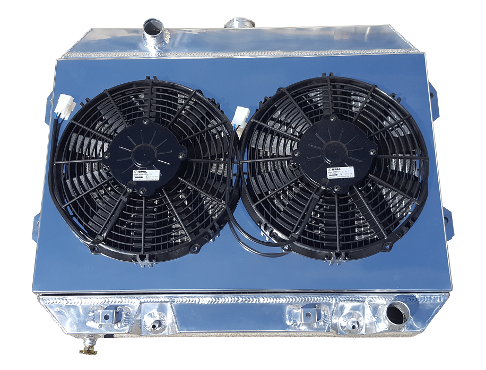

All Aluminum Champion Radiator Plus
Ledfoot Racing Shroud and two 11" SPAL-1500 electric fans

3-Row Core | Cools up to 650hp
Save $50

Radiator Dimensions:
Total: 22.63" (with cap) x 27.5" (including brackets)
Core: 16" tall x 24.25" wide x 2.25" thick
Inlet: 1.38" drivers side
Outlet: 1.38" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick
Total Thickness to back of fans: 5.38" Thick
(About 4.5" thick between the fans)

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (Metric 12-1.25)


Compatible With
Nissan/Datsun 280Z 1975-1978 (2.8L Straight 6-cylinder)
