Road Runner (68-74) 26" Big Block Radiator

Scroll down for additional options

This is the 26" Core radiator call if you need the 22" Core.
Please note your inlet and outlet positions.
Call if you have any questions.

EC375-375FS12SP

EC375-375FS12SP

EC375-375FS12SP
Click to enlarge image(s)

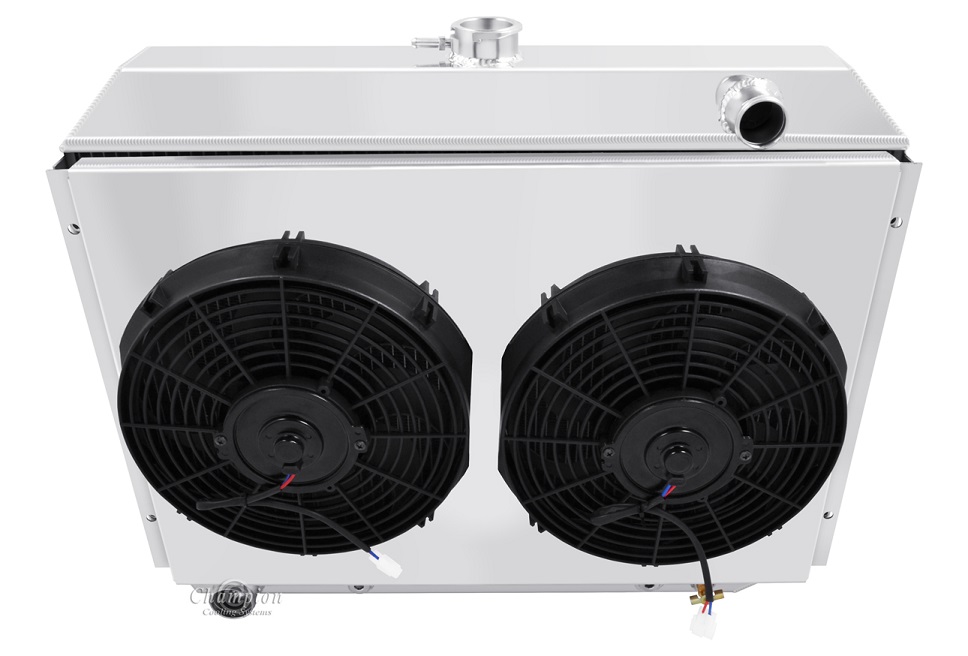

Champion All Aluminum Radiator Plus
Ledfoot Racing Shroud and two 12" SPAL 1522 fans
2-Row Core | Cools 450hp

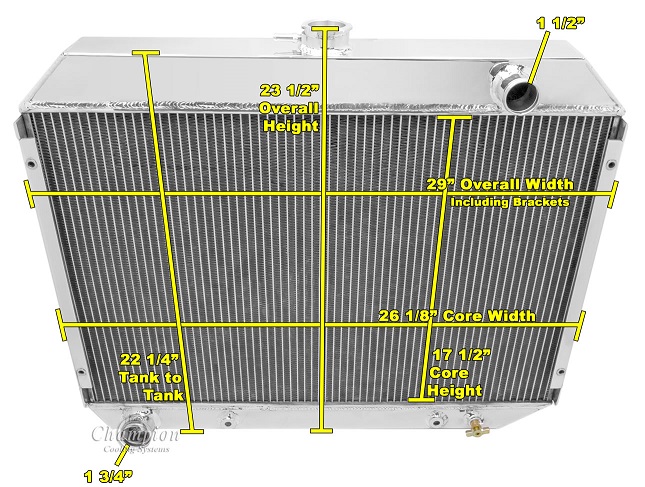

Radiator Dimensions:
Total: 29" wide (including brackets) x 22.25" tall (23.25" with cap)
Core: 26" wide x 17.5" tall x 1.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.5" thick
Tubes: 0.75" thick

Bracket mounted
No OEM Shroud support

13lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)


CC375B-375FS12SP

CC375B-375FS12SP

CC375B-375FS12SP
Click to enlarge image(s)

Champion All Aluminum Radiator
Plus Ledfoot Racing Shroud & two 12" SPAL 1522 Fans
3-Row Core | Cools 750hp

Radiator Dimensions:
Total: 22.25" tall (23.30” with cap) x 29" wide (with brackets)
Core:  17.5" tall x 26" wide x 2.5" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.75"
Tubes: 0.75" thick

Total Thickness: 6" to back of fan motors
4.75" between motors where waterpump sits

Bracket Mounted
No OEM Shroud support

13lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)


MC375-375FS12SP

MC375-375FS12SP

MC375-375FS12SP
Click to enlarge image(s)
Champion All Aluminum Radiator Plus
Ledfoot Racing Aluminum Shroud & 2-12" 1522 SPAL Fans
(We no longer recommend the standard fans for this set up)
4-Row Core; Polished Tanks
Cools 800hp

Radiator Dimensions:
Total: 29" wide (including brackets) x 22.25” tall (23.25” with cap)
Core: 26” wide x 17.5” tall x 2.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 3.2" thick
Tubes: 0.63" thick

Bracket mounted
No OEM Shroud support

13 lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)


375FS12

375FS12

375FS12
Click to enlarge image(s)

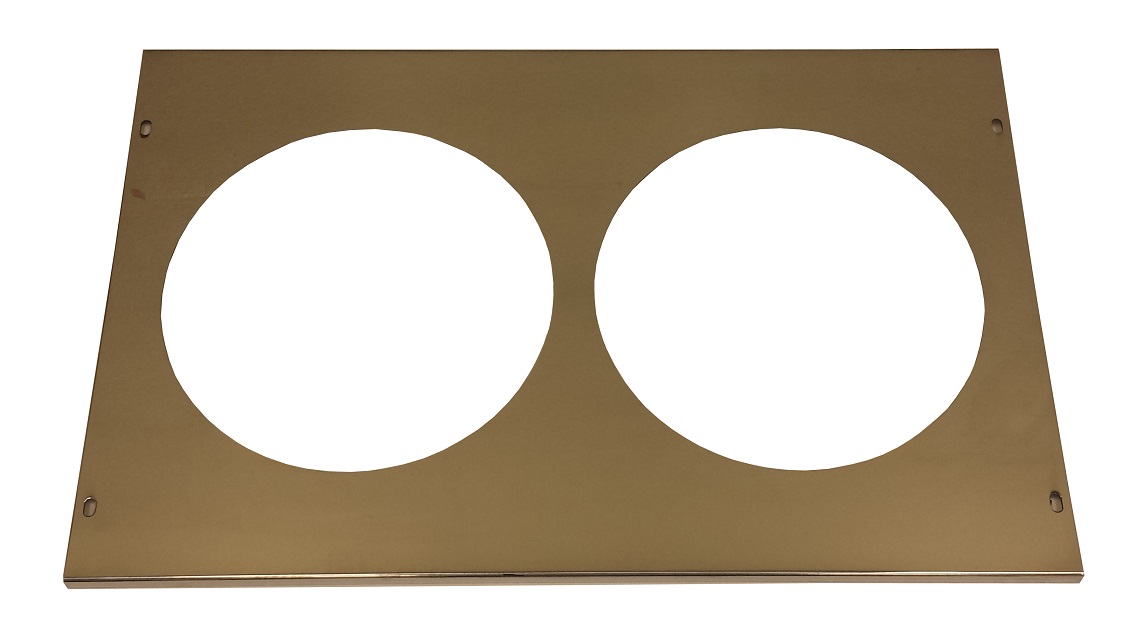

Ledfoot Racing Aluminum Fan Shroud for Two 12" Electric Fans
Radiator and fan sold seperately

Dimensions:
17" tall x 26.5" wide

Attributes:
All-Aluminum Fan Shroud
Cut-outs to accept two 12" electric fans
Designed Exclusively for Two Electric Fans (sold separately)
Made in the U.S.A

Compatible with:
Champion EC375, CC375, MC375, and American Eagle AE375.
