Click to enlarge image(s)
Bar & Plate is a heavy duty construction method for radiators, significantly reducing the chances of leaks while increasing heat transfer properties of the unit.
Great for OFF-ROAD applications!

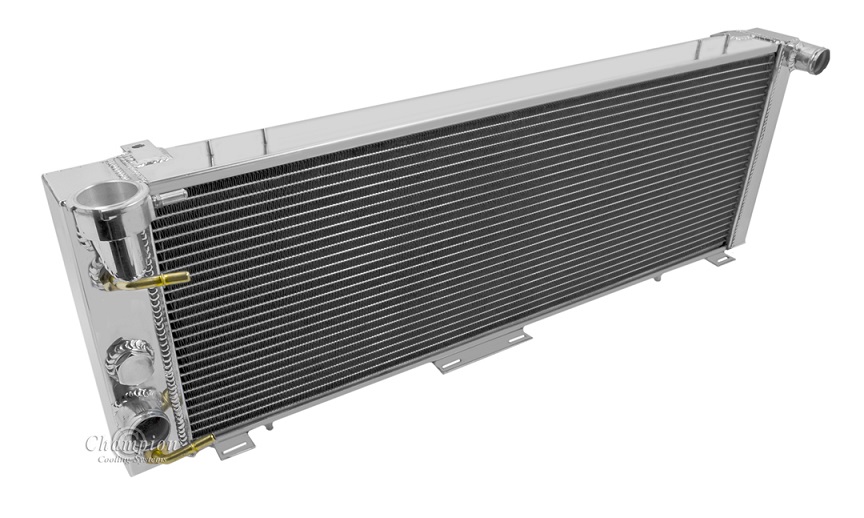

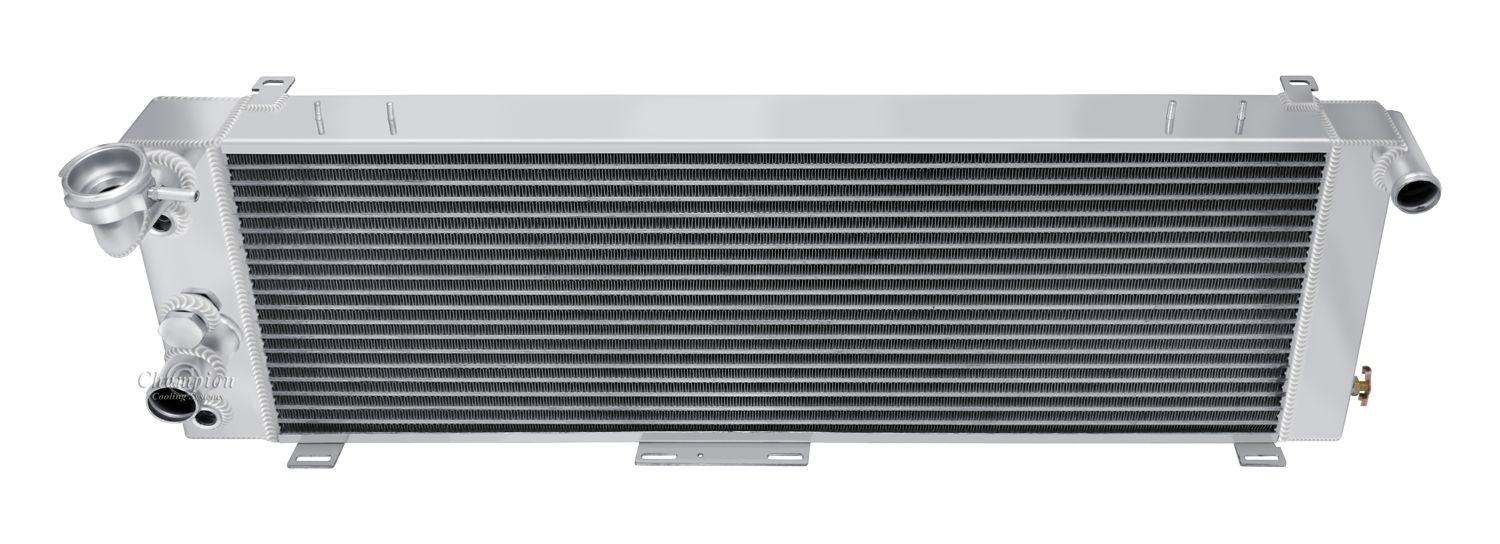

Champion All Aluminum Radiator

1-Row Core | Cools up to 600hp

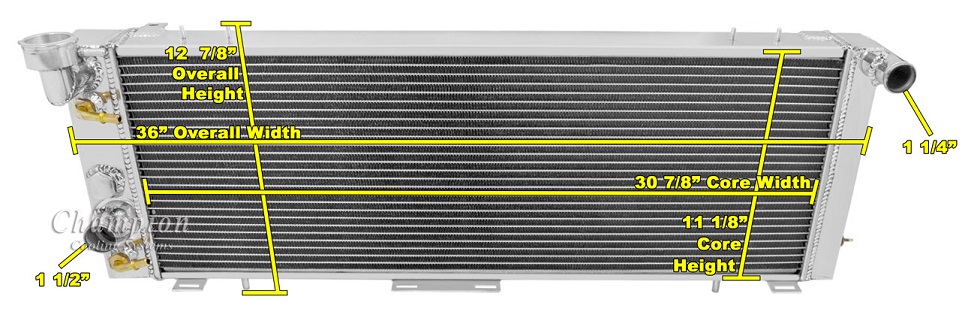

Radiator Dimensions:
Total: 36" wide x 13.5" tall (including cap) x 2.5" deep
Core: 31.25" wide x 11" tall x 2.13" thick
Inlet: 1.25" passenger side
Outlet: 1.5" driver side
Tanks: 2.5" thick
Tubes: 0.63" thick

Pin Mounted

13lb. Radiator Cap included
Transmission Cooler included (5/8-18 Straight Thread, inverted flare)

When using electric fans:
Two or three 10" Electric Cooling Fans recommended for this core size (sold separately)

Compatible With
Jeep Comanche 1991-1992
Jeep Wagoneer 1991-2001
Jeep Cherokee 1991-2001
