Small Block Camaro (67-69)
Scroll down for additional options
AE337

AE337

AE337
Click to enlarge image(s)

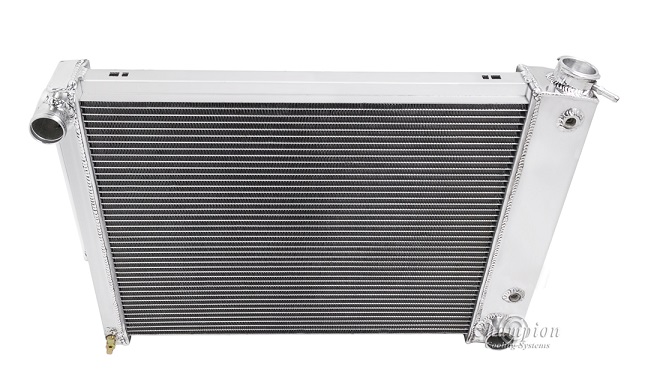

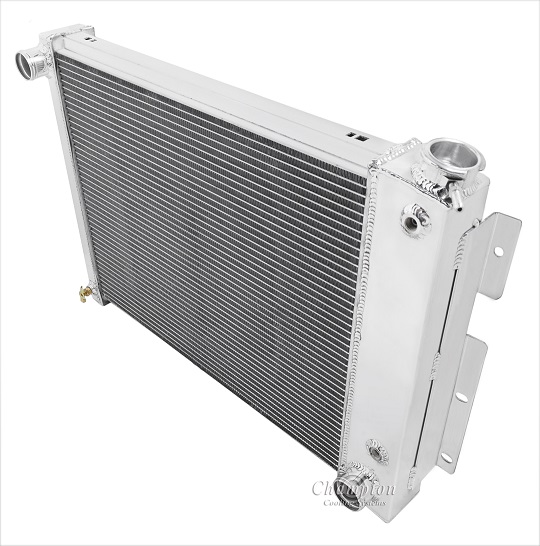

American Eagle All Aluminum Radiator
2-Row Core, 1" tubes | Cools up to 550hp

Radiator Dimensions:
Total: 18.5" tall (19.5" with cap) x 27.38” wide (including brackets)
Core: 16.75" tall x 20.75" wide x 2.2" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 1" thick

Bracket Mount System

16 lb. Radiator Cap included
Transmission Cooler included (1/2" 20 STRAIGHT THREAD G1/4)

Recommended Electric Cooling fans:
One 16" Electric Fan
is recommended for this core size (sold separately)


Buy the Fan and Shroud Combo, and Save!
Compatible With
Chevrolet Camaro (Small Block) 1967-1969 (4.1l L6, 305ci V8, 307ci V8, 327ci V8, 350ci V8)
Pontiac Firebird/Trans Am 1967-1969 (4.1l L6, 305ci V8, 307ci V8, 327ci V8, 350ci V8)
AE337-337FS16

AE337-337FS16

AE337-337FS16
Click to enlarge image(s)

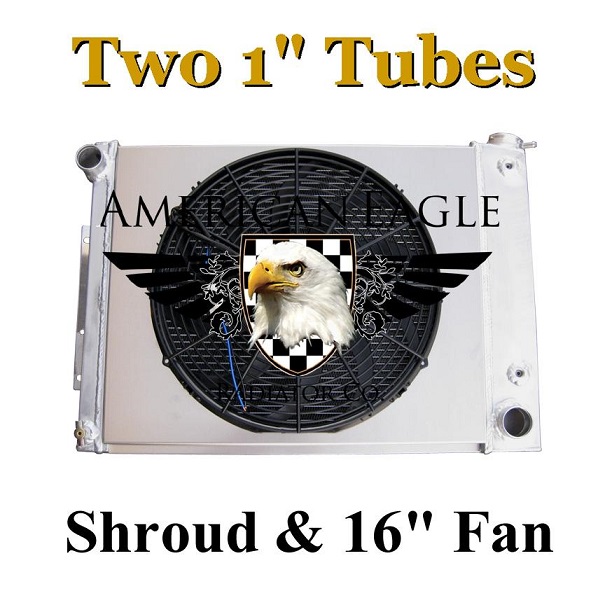

American Eagle All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud and 16" Cooling Fan
Verify clearance for electric fan
Total thickness: 6.25" to fan motor
2-Row Core, 1" Tubes | Cools up to 500hp

Radiator Dimensions:
Total: 18.5" tall (19.5" with cap) x 27.38” wide (including brackets)
Core: 16.75" tall x 20.75" wide x 2.2" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 1" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included


Compatible With
Chevy Camaro (Small Block) 1967-1969 (4.1l L6, 305ci V8, 307ci V8, 327ci V8, 350ci V8)
Pontiac Firebird/Trans Am 1967-1969 (4.1l L6, 305ci V8, 307ci V8, 327ci V8, 350ci V8)
337FS16

337FS16

337FS16
Click to enlarge image(s)

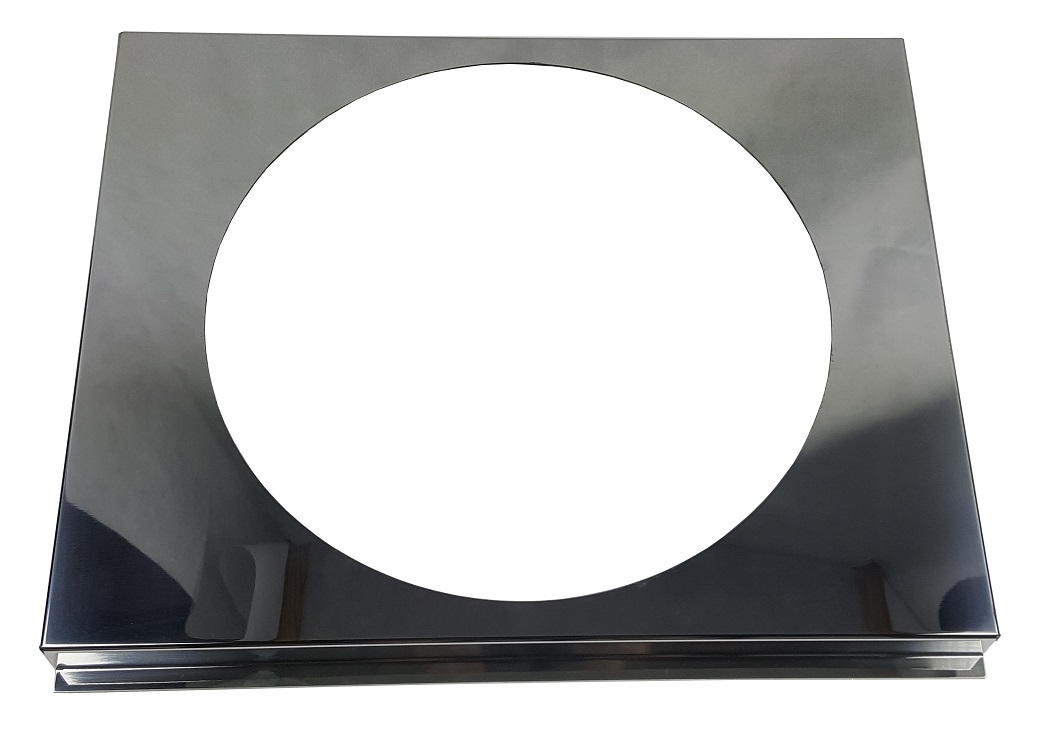

Ledfoot Racing Aluminum Fan Shroud for One 16" Electric Fan

Dimensions:
18 3/8" tall x 21 1/8" wide

Attributes:
All-Aluminum Fan Shroud
Cut-outs to accept one 16" electric fan
Designed Exclusively for One Electric Fan (sold separately)
Made in the U.S.A

Compatible with:
Champion EC337, CC337, MC337, and American Eagle AE337.



This part applies to the following cars:
