(47-54) Chevy Truck LS conversion
CC5100B-LS

CC5100B-LS

CC5100B-LS
Click to enlarge image(s)

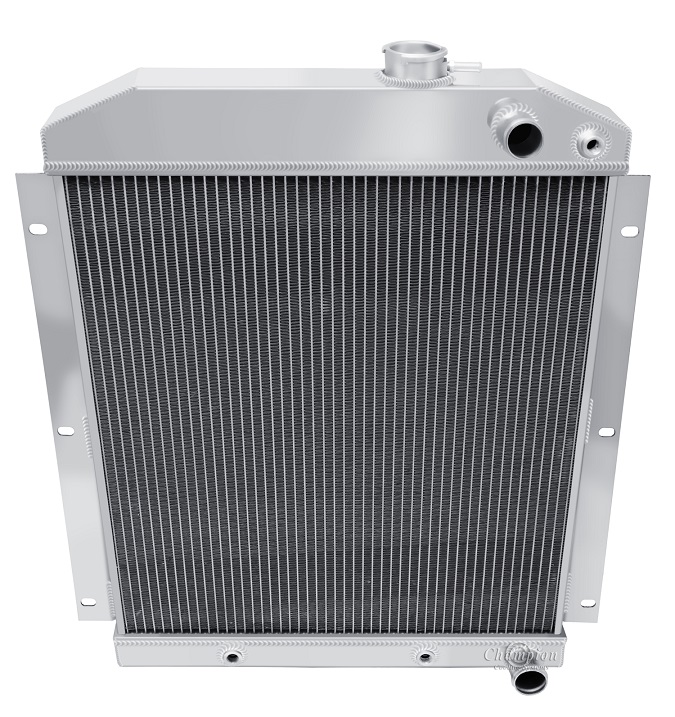

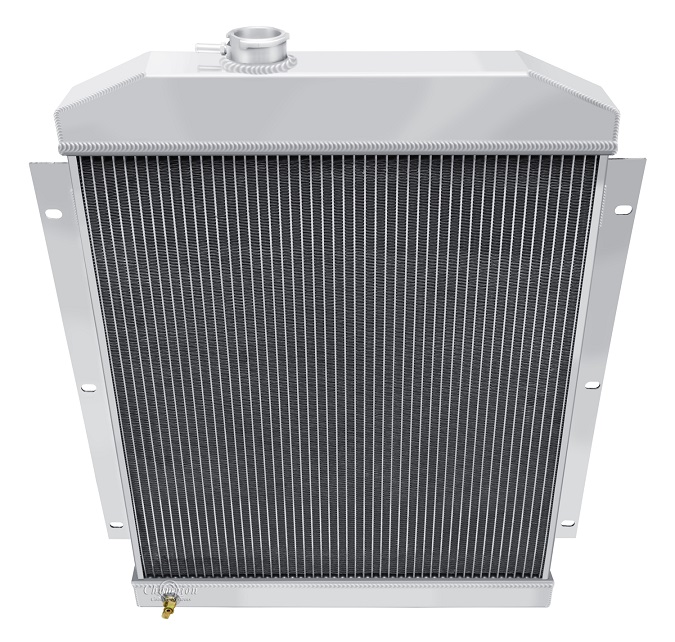

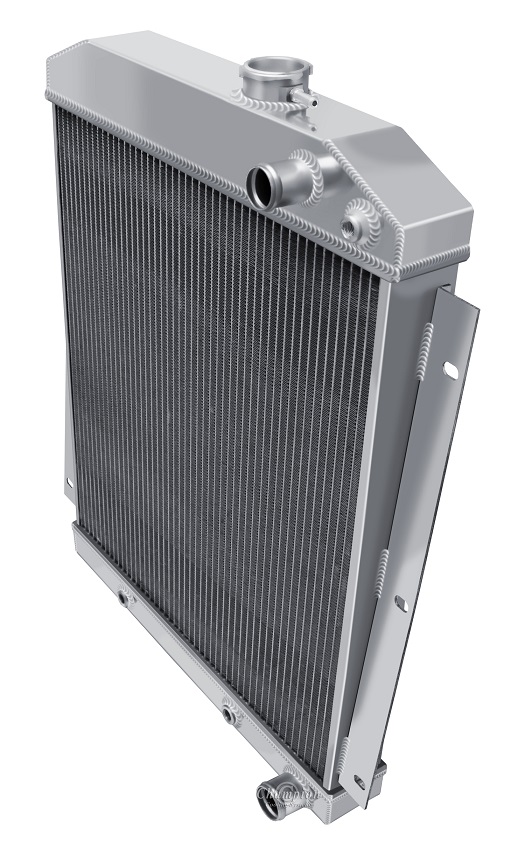

Champion All Aluminum Radiator
3-Row Core | Cools up to 700hp
Correct photos to follow shortly, inlet and
steam port on passenger side

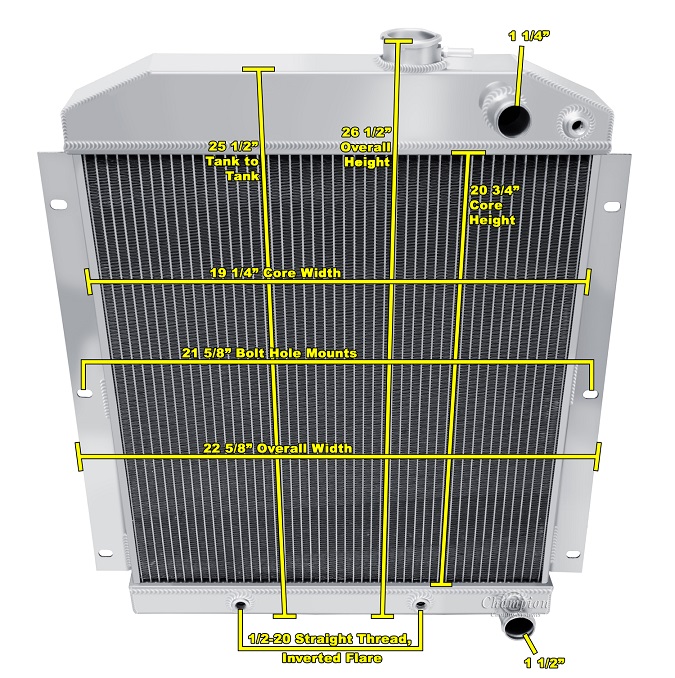

Radiator Dimensions:
Total:
26.75" tall x 23" wide (including brackets)
Core: 20.75" tall x 19.25" wide x 2.5" thick
Inlet 1.25" passenger side
Outlet: 1.5" passenger side
Tanks: 2.75" thick
Tubes: 0.75" thick

Bracket Mounted

13 lb. Radiator Cap included
Steam Port included
Transmission Cooler included (1/2" -20 straight thread, inverted flare)
Aluminum Shroud is also Available (sold separately)

When using electric fans:
One 16" Electric fan recommended for this core size


Compatible With
Chevrolet C/K Series 1947-1954
Chevrolet Suburban 1947-1954
Chevrolet Panel Truck 1947-1954
